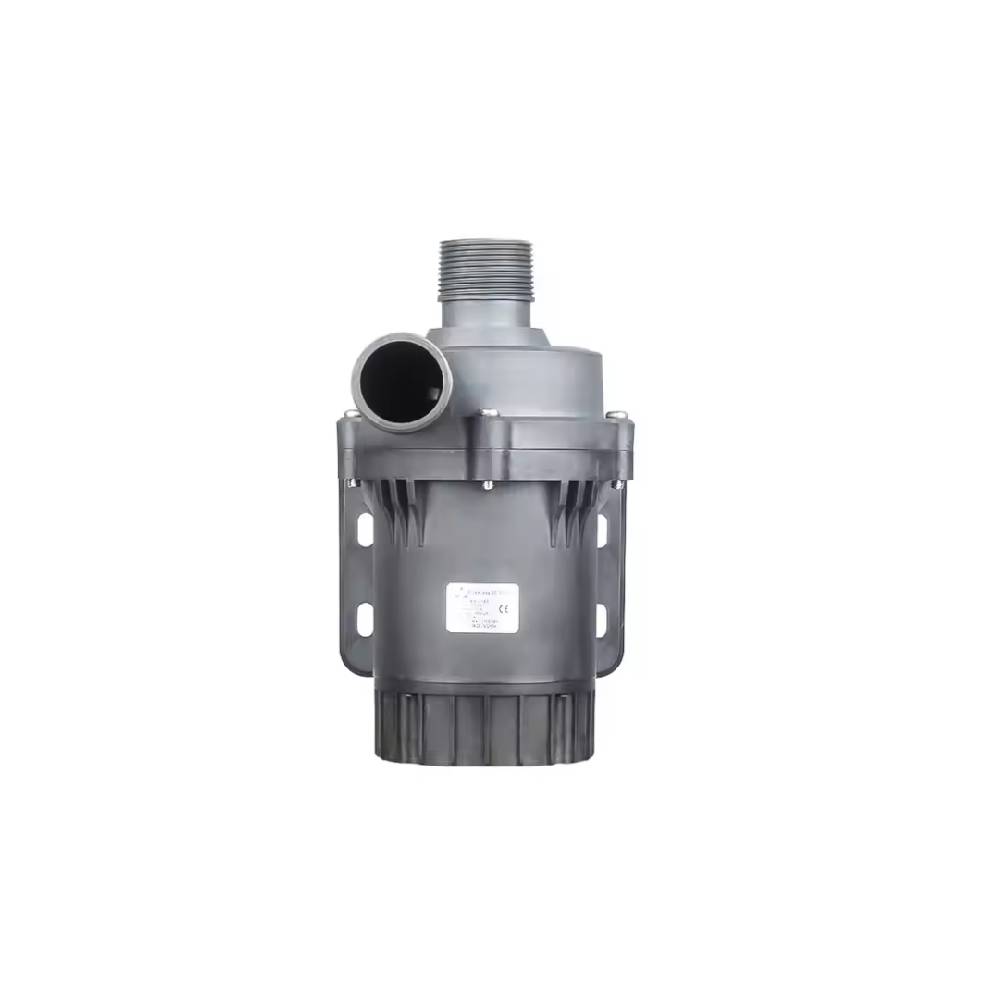

ZKSJ DC85E 3-Phase Brushless DC Pump 13500L/H 10M Head Custom MPPT Available
ZKSJ DC85E 3-Phase Brushless DC Pump 13500L/H 10M Head Custom MPPT Available
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Industrial Cooling · Large Aquarium · Music Fountain – Sine Wave Quiet, IP68 Waterproof
Key Selling Points
| # | Icon | Feature | Benefit |
|---|---|---|---|
| 1 | ⚡ | DC Low Voltage Safe | 24V low voltage – no shock risk |

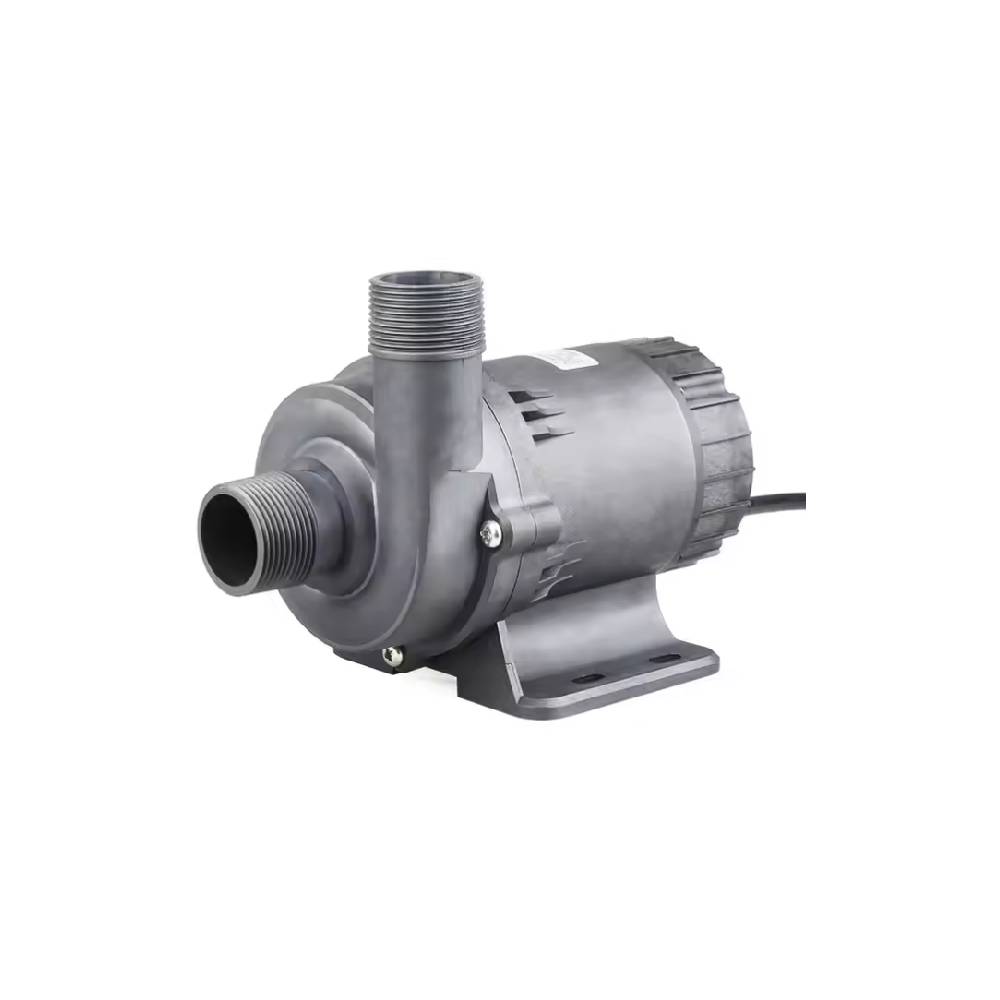

| 2 | 🔇 | 3-Phase Brushless Sine Wave Control | Eliminates high-frequency noise – smooth & silent |
| 3 | 🧊 | Separable Pump Body & Driver | High temperature resistant – driver away from heat |

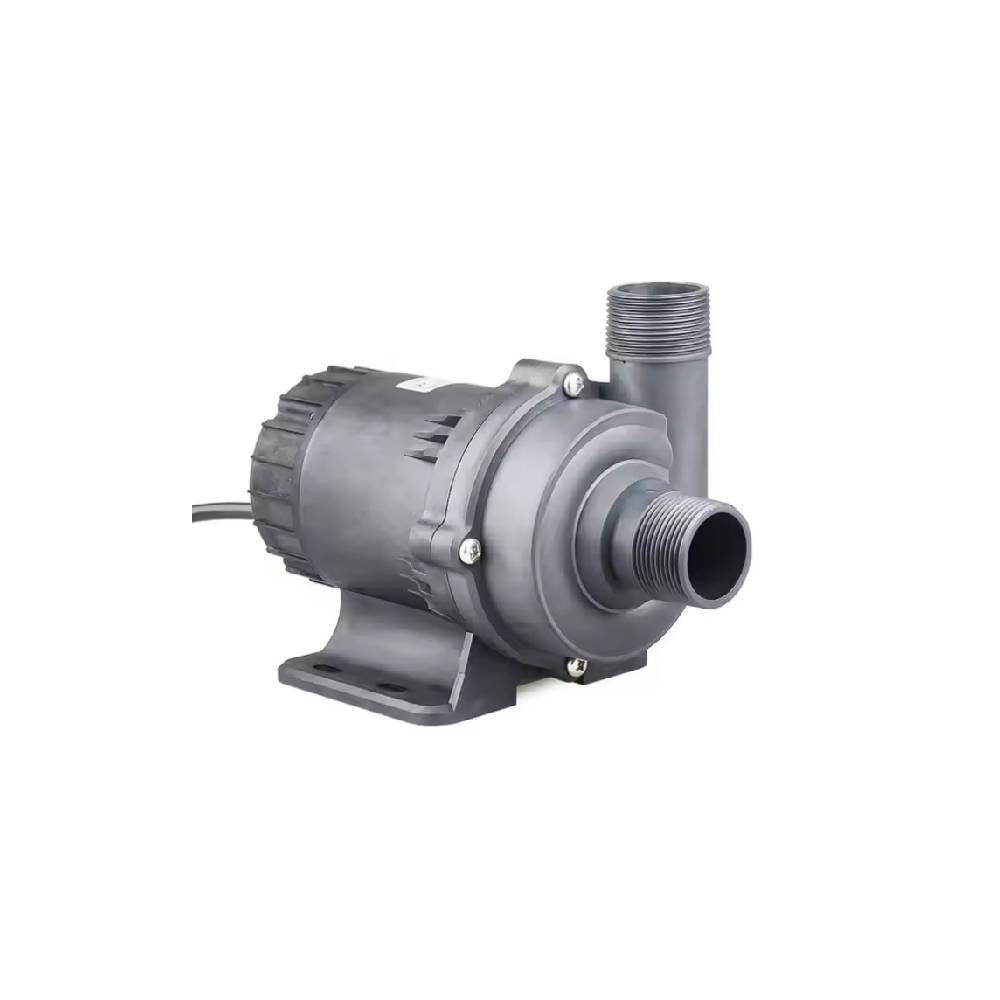

| 4 | 🔒 | Magnetic Isolation Design | Complete water-electricity separation – IP68 |

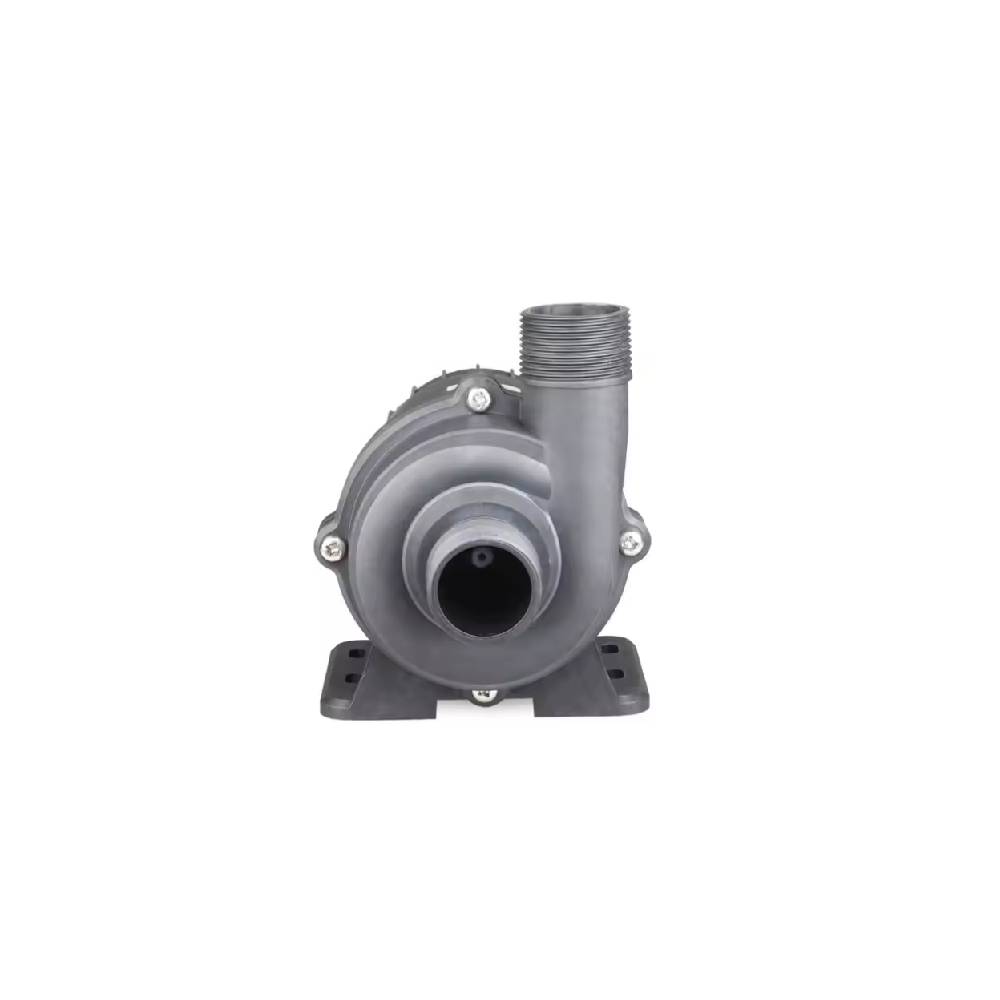

| 5 | 🧪 | Corrosion Resistant | PPS+30%GF – resists acid, alkali, salt, oil, solvents |
| 6 | ⚙️ | Constant Power Customizable | e.g., 12V 80W pump – constant 80W from 12-24V |
| 7 | 🎯 | Constant Speed Customizable | Speed unchanged when load varies |
| 8 | 🛡️ | Accurate Dry-Run & Jam Protection | Programmable current detection based protection |
| 9 | 🚀 | Soft Start | Eliminates peak voltage – reduces starting current |
| 10 | 🎵 | Music Fountain Ready | Supports high-frequency start-stop applications |

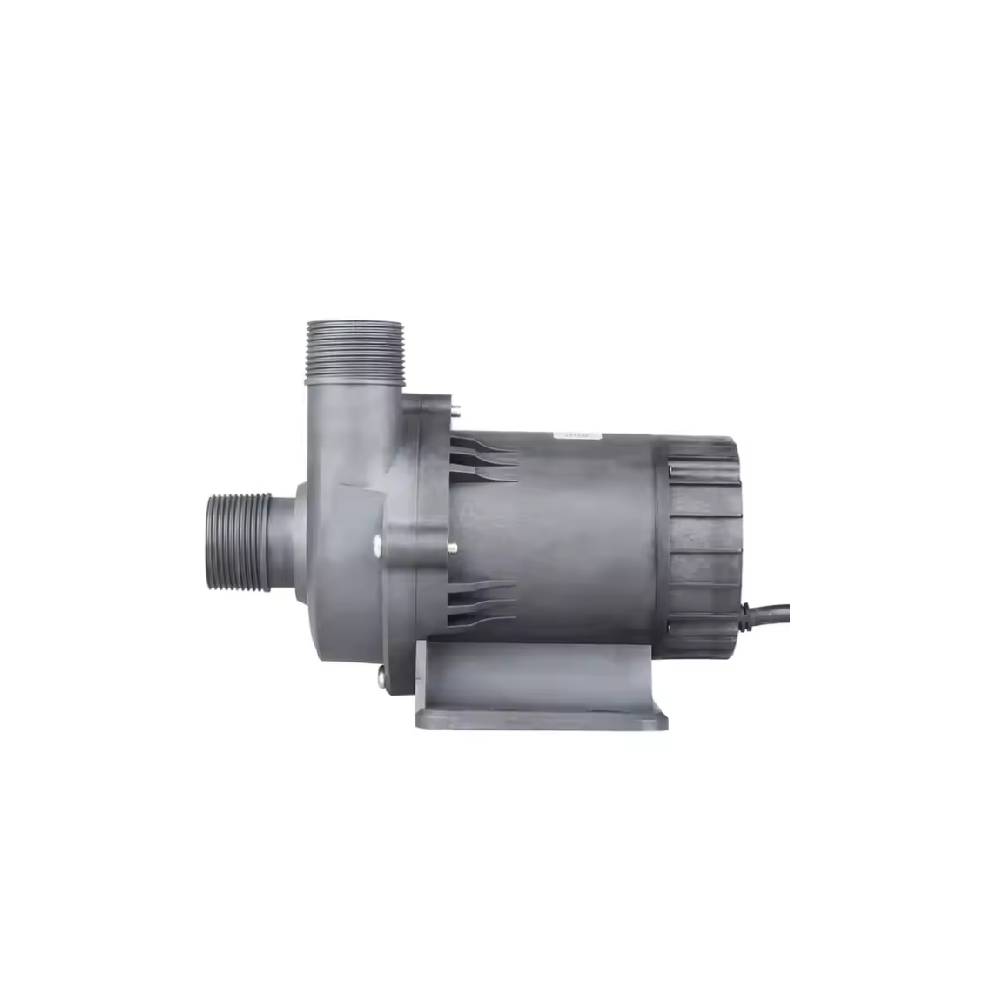

| 11 | ☀️ | MPPT Customizable | For solar power – prevents poor startup in weak light |
| 12 | 🔧 | Full Customization | Pump & control system for various environments |
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ZKSJ DC85E Pump |
| Model | DC85E |
| Max Flow | 13,500 L/H |
| Max Head | 10M |
| Rated Voltage | 24Vdc |
| Weight | 3.5kg |
| Housing Material | PPS+30%GF |
| Impeller Type | Closed Impeller |
| Waterproof Rating | IP68 |
| Lifespan | ≥30,000 hours |
| Color | Black |
| Certification | CE, ROHS |
Applications
| Icon | Application | Description |
|---|---|---|
| 🏭 | Industrial Cooling | Equipment cooling, laser cooling, welder cooling |
| 🐟 | Large Aquarium | Main circulation, filtration system |
| ⛲ | Music Fountain | High-frequency start-stop, smooth sine wave control |
| 🌊 | Aquaculture | Fish farm, shrimp farm water circulation |
| ☀️ | Solar System | MPPT customizable – starts even in weak light |
| 🧪 | Chemical / Laboratory | Corrosive liquid transfer |
| 🏢 | HVAC | Auxiliary circulation |
Why Choose DC85E?
| Benefit | Description |
|---|---|
| ✅ Ultra High Flow | 13,500L/H for large systems |
| ✅ Ultra Quiet | Sine wave control – only water flow sound |
| ✅ Corrosion Resistant | PPS+30%GF – resists acid, alkali, salt |
| ✅ Fully Waterproof | IP68 fully submersible |
| ✅ Long Life | ≥30,000 hours |
| ✅ Customizable | Constant power / constant speed / MPPT / control system |
❓ FAQ – Frequently Asked Questions
| Question | Answer |
|---|---|
| What are the advantages of a 3-phase brushless pump? | High efficiency, long life, low noise. Sine wave control eliminates high-frequency noise for smooth, silent operation. |
| What does constant power customization mean? | For example, a 12V 80W pump maintains constant 80W power even when voltage varies between 12-24V. |
| What is MPPT customization for? | For solar power systems – ensures reliable startup even in weak light conditions. |

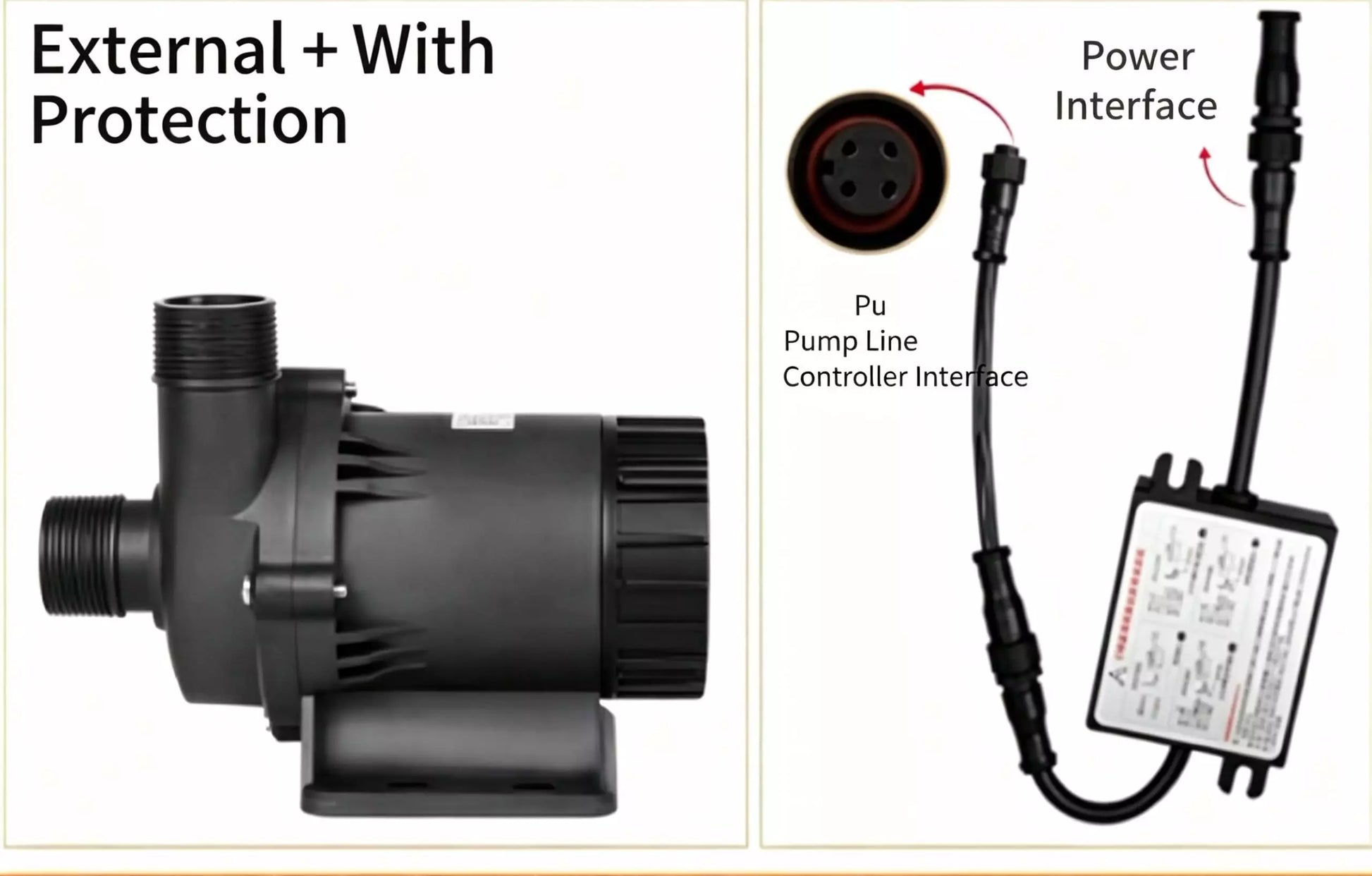

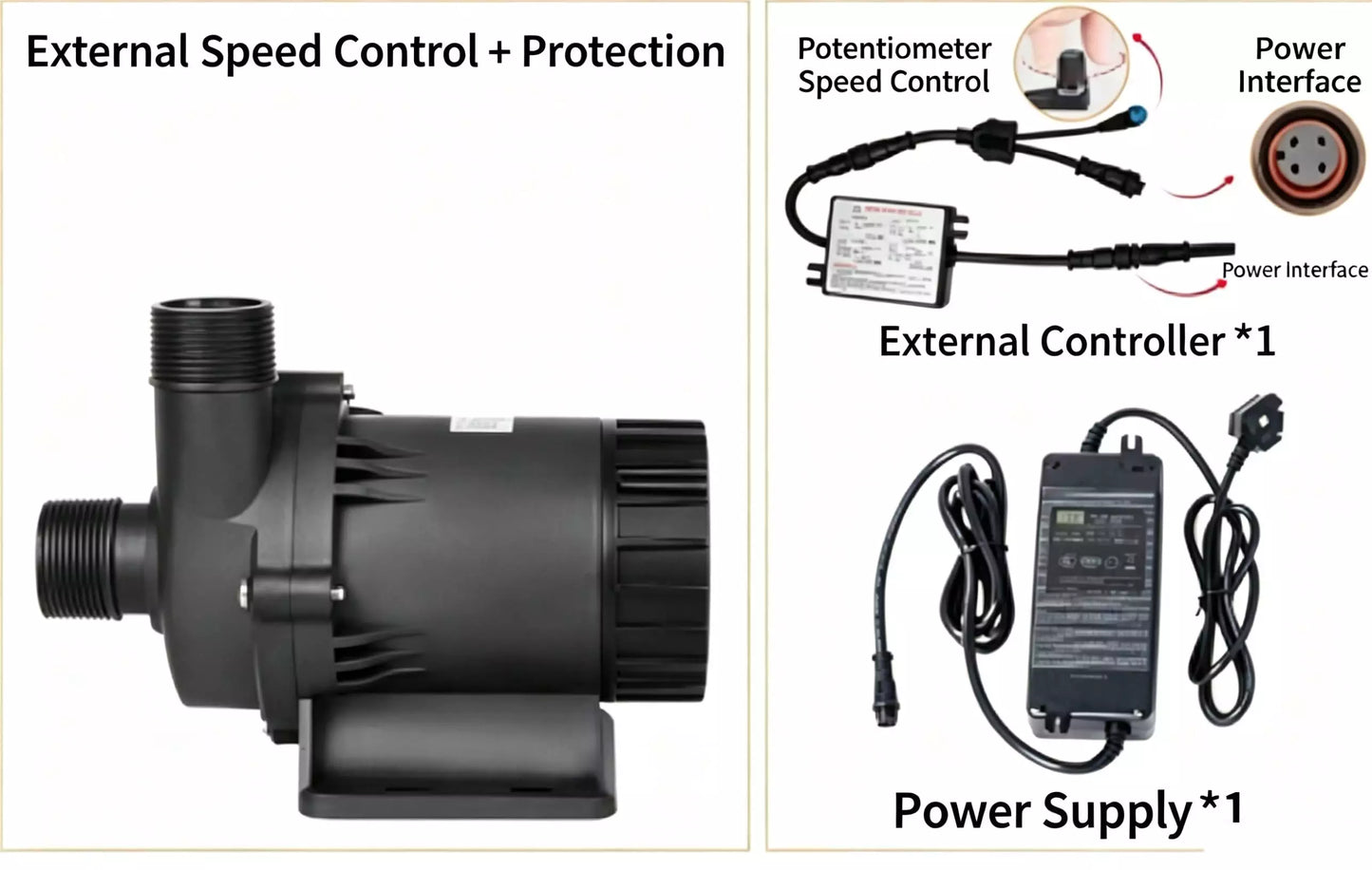

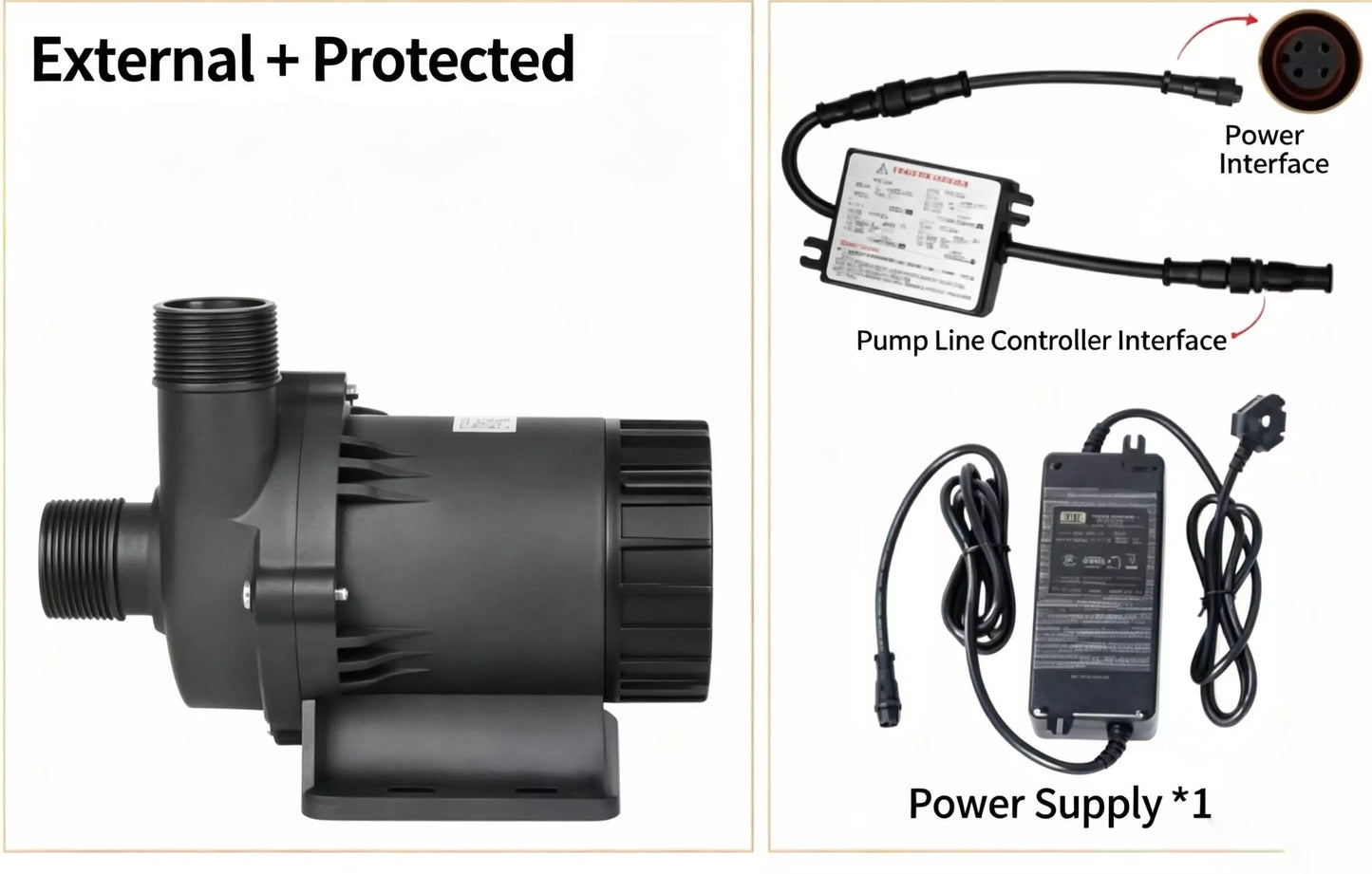

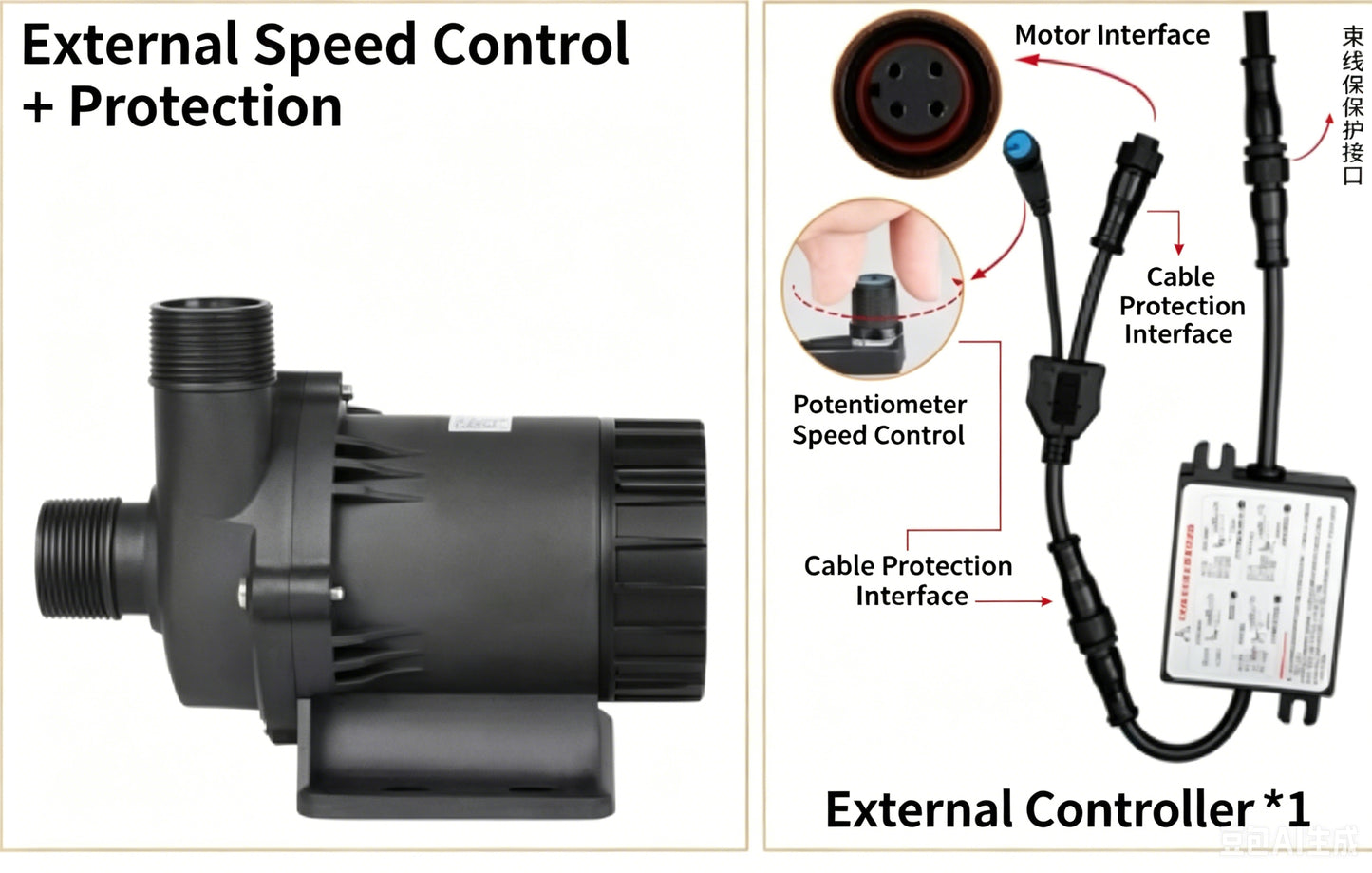

| Can the pump body and driver be separated? | Yes. The pump body and driver can be separated – keep the driver in a dry, high-temperature resistant location. |
| Can it pump hot water? | External driver version handles up to 100°C. Internal driver version ≤60°C. |
| What customization options are available? | Constant power, constant speed, MPPT, control strategy, materials, structure, and appearance. |
| Do you offer OEM/ODM services? | Yes! Contact us for details. |
3-Phase brushless. Sine wave quiet. 13,500L/H high flow. Customizable constant power/MPPT.
👇 Contact Us for ZKSJ DC85E · Wholesale Welcome · OEM/ODM Available
💬 Bulk orders get discounted pricing. Distributors, brands, and project contractors – welcome to partner with us!
Pefrormance Curve
Dimension
How to install
