ZKSJ DC56E Ultra Quiet Pump – 2700L/H, 14M Head for Aquarium Canister
ZKSJ DC56E Ultra Quiet Pump – 2700L/H, 14M Head for Aquarium Canister
Regular price
$74.90
Regular price
Sale price
$74.90
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Real picture:
2700L/H Max Flow | 10-14M Head | IP68 Waterproof | PPS+30%GF | ≥30000hr Life
Key Features
| # | Icon | Feature | Benefit |
|---|---|---|---|
| 1 | ⚡ | Brushless DC Motor (EC Motor) | Magnetic isolation, high efficiency, maintenance-free |
| 2 | 📏 | Compact & Powerful | 113×83×99mm, 0.48kg – big performance |
| 3 | 💰 | Low Consumption | 54-80W power, energy saving |
| 4 | ⏱️ | ≥30,000 Hour Lifespan | Long continuous working |
| 5 | 🛡️ | Safe & Explosion-Proof | No spark, low voltage safety |
| 6 | 🔇 | Ultra Quiet | Advanced motor design for quiet operation |
| 7 | 💧 | 100% Waterproof | IP68 fully submersible |
| 8 | 🔧 | Maintenance-Free | Install and forget |
| 9 | 🧪 | Corrosion Resistant | PPS+30%GF housing – acid & alkali resistant |
Product Parameters
| Parameter | Specification |
|---|---|
| Inlet/Outlet Diameter | 20mm / 20mm (threaded) |
| Static Head | 10~14M |
| Input Power | 54~80W |
| Max Flow | 2100~2700L/H |
| Rated Voltage | 12V / 24V / 36V |
| Operating Voltage | 5~40V |
| Rated Current | 2.2~4.5A |
| Dimensions | 113×83×99mm |
| Weight | 0.48kg |
| Housing Material | PPS+30%GF |
| Drive Method | Brushless, Magnetic Isolation |
| Waterproof Rating | IP68 |
| Lifespan | ≥30,000 hours |
Model Specifications
| Model | Voltage | Current | Max Head | Max Flow | Power |
|---|---|---|---|---|---|
| DC56E-12100 | 12V | 4.5A | 10M | 2100L/H | 55W |
| DC56E-24100 | 24V | 2.2A | 10M | 2100L/H | 54W |

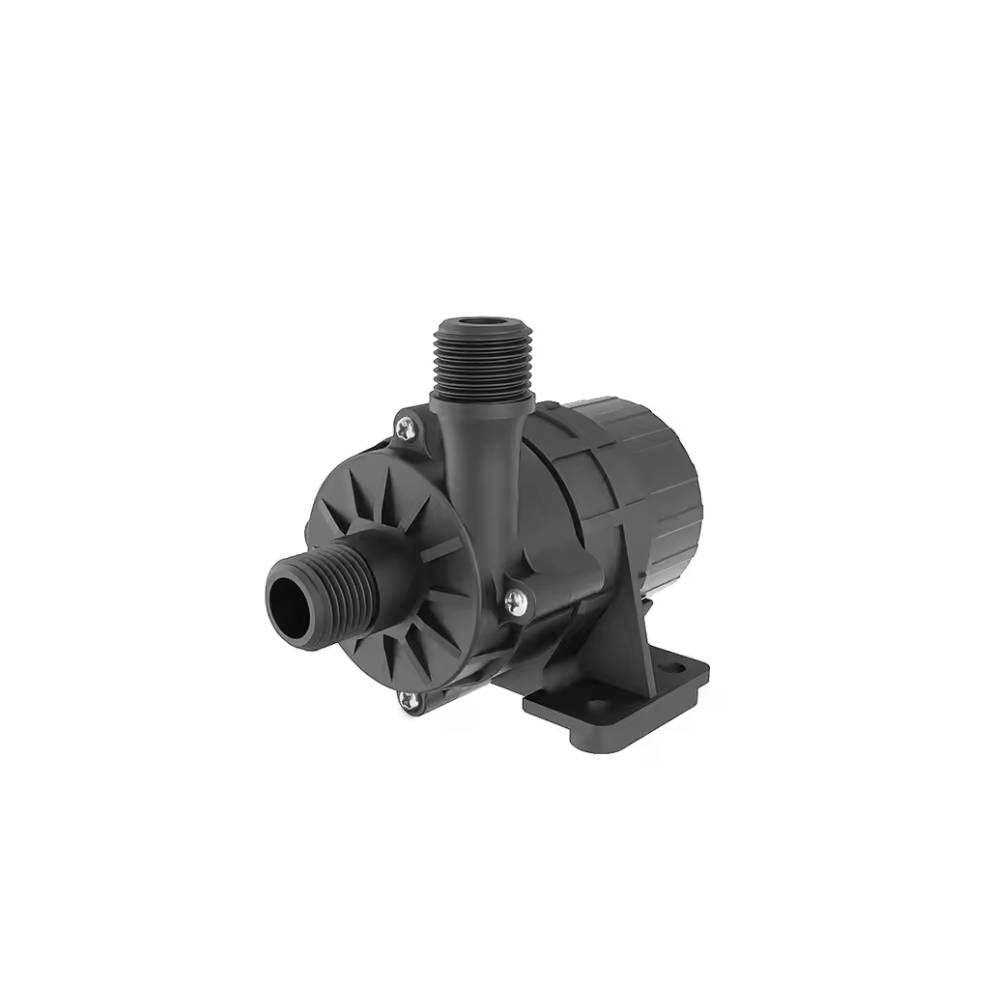

| DC56E-24140 | 24V | 3.3A | 14M | 2700L/H | 80W |
| DC56E-36140 | 36V | 2.2A | 14M | 2700L/H | 80W |
Flow Rate Conversion
| Model | L/H | L/min | GPH |
|---|---|---|---|
| DC56E-12100 / 24100 | 2100 L/H | 35 L/min | ≈ 555 GPH |
| DC56E-24140 / 36140 | 2700 L/H | 45 L/min | ≈ 713 GPH |
Selection Guide
| Need | Recommended Model | Description |
|---|---|---|
| 12V system (vehicle, small boat) | DC56E-12100 | 10M head, 2100L/H, 55W |
| 24V system (standard aquarium) | DC56E-24100 | 10M head, 2100L/H, 54W |
| High flow (large tank, high head) | DC56E-24140 | 14M head, 2700L/H, 80W |
| 36V system (solar, industrial) | DC56E-36140 | 14M head, 2700L/H, 80W |
Applications
| Icon | Application | Recommended Model |
|---|---|---|
| 🐟 | Aquarium Canister Filter | DC56E-24100 / 24140 |
| ⛲ | Large Fountain / Water Feature | DC56E-24100 |
| 🌱 | Large Hydroponics System | DC56E-24140 |
| ☀️ | Solar System | DC56E-36140 |
| 🏭 | Industrial Circulation | DC56E-24140 / 36140 |
| 🔥 | Hot Water Circulation | All models (external driver) |
Additional Available Models
| Model | Description |
|---|---|

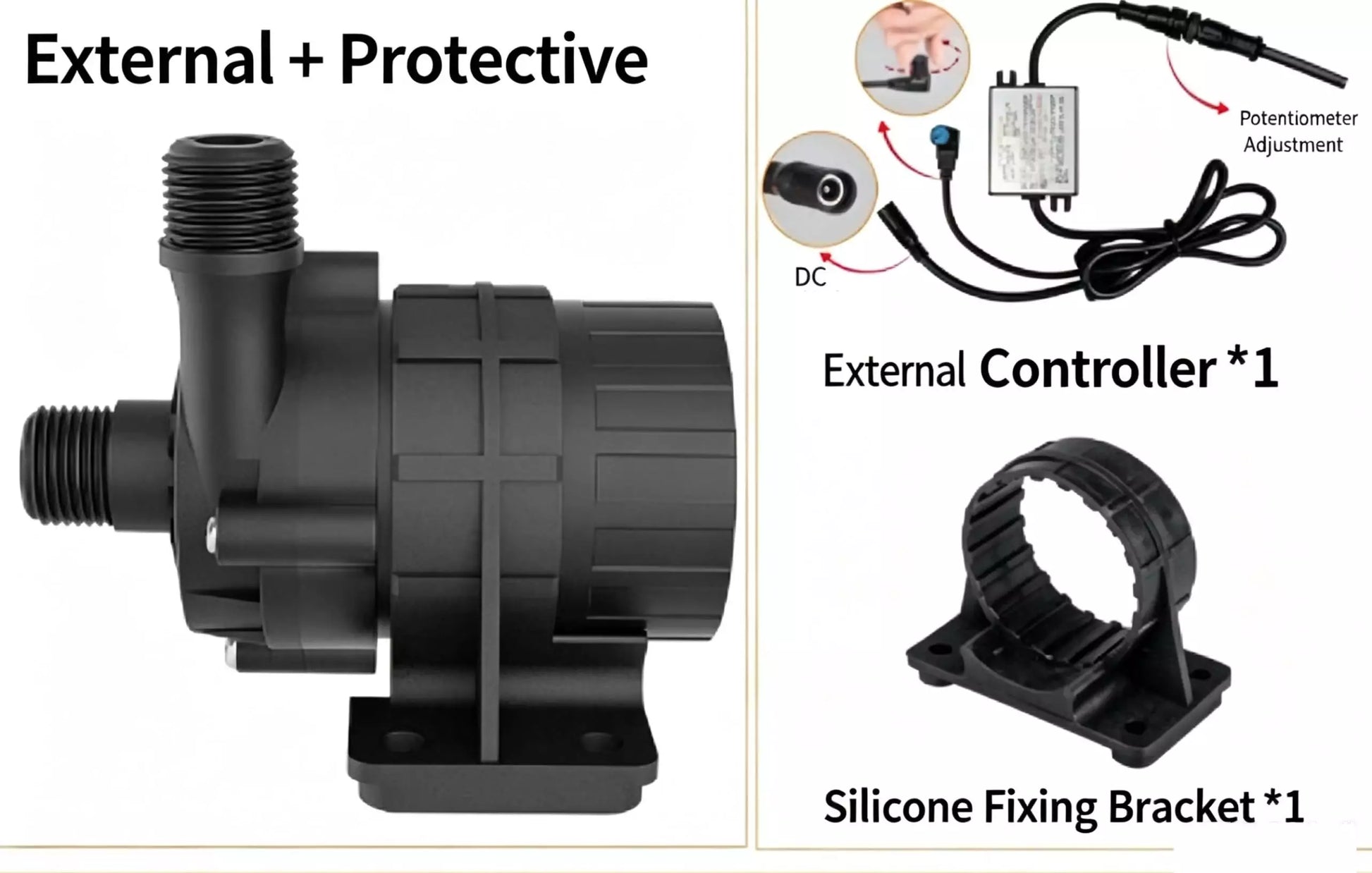

| DC56E-12100S | External (with Protection) |
| DC56E-12100S | External (with Protection) + Power Supply |
| DC56E-12100VR | External (with Protection) + Speed Control + Power Supply |
| DC56E-24100S | Built-in (with Protection) + Power Supply |
| DC56E-24100VR | Built-in (with Protection) + Speed Control + Power Supply |
| DC56E-24100VR | Built-in (with Protection) + Speed Control + Power Supply (Multi-user add-on) |
| DC56E-24140S | External (with Protection) + Power Supply |
| DC56E-24140VR | External (with Protection) + Speed Control + Power Supply |
💡 These are some available configurations. If you have other requirements, please feel free to contact us!
Installation Instructions
1. Submersible Installation
Fully submerge pump in water
Ensure inlet is not blocked
2. Inline Installation (Non-Self-Priming)
Pump must be below liquid level
Ensure inlet pipe is filled with liquid
Ideal for canister filters
3. Threaded Port Installation

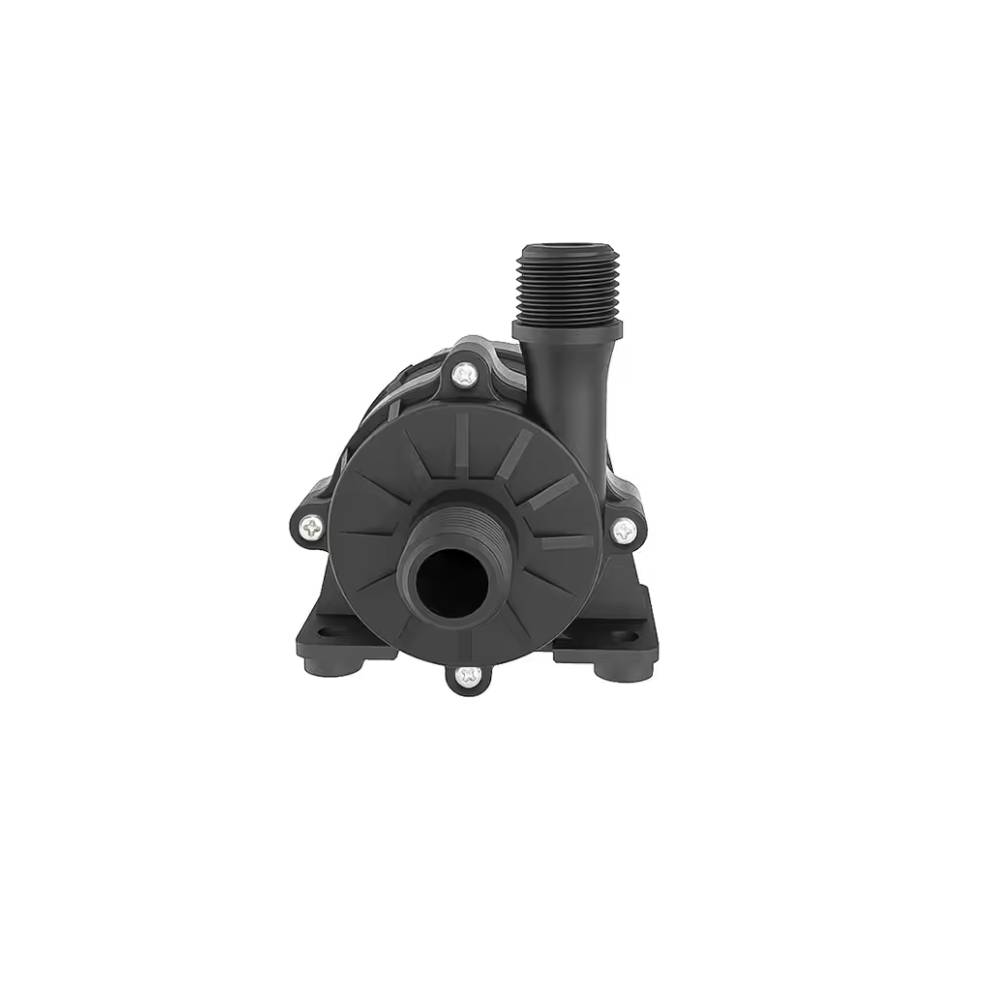

20mm threaded inlet/outlet
Use appropriate fittings or hose adapters
4. Important Notes
| Note | Description |
|---|---|
| ⚠️ Never run dry | Prime before operation |
| ⚠️ Media temperature | Internal ≤60°C / External ≤100°C |
| ⚠️ Material compatibility | PPS+30%GF is acid/alkali resistant – confirm for special media |
Dimensions
| Parameter | Size |
|---|---|
| Length | 113mm |
| Width | 83mm |
| Height | 99mm |
| Weight | 0.48kg |
| Inlet/Outlet | 20mm (threaded) |
❓ FAQ – Frequently Asked Questions
| Question | Answer |
|---|---|
| What's the advantage of PPS+30%GF housing? | Acid & alkali resistant, high temperature resistant, corrosion resistant – ideal for chemical and marine use. |
| Can it pump hot water? | Yes. External driver version handles up to 100°C. |
| Is it noisy? | No. Advanced motor design – quiet operation. |
| What voltage options are available? | 12V, 24V, and 36V optional. |
| Can I use it in saltwater? | Yes. PPS+30%GF housing is corrosion resistant – safe for marine environments. |
| Do you offer customization? | Yes! OEM/ODM services available – contact us for details. |
Ultra quiet, high flow. PPS corrosion resistant housing. IP68 waterproof. ≥30,000 hour lifespan.
