ZKSJ DC55F Industrial Brushless DC Pump – Professional Grade Performance
ZKSJ DC55F Industrial Brushless DC Pump – Professional Grade Performance
Couldn't load pickup availability
1800L/H Flow・16M Head・Acid/Alkali/Oil/Saltwater Resistant – For Industrial & Lab Use
Key Selling Points

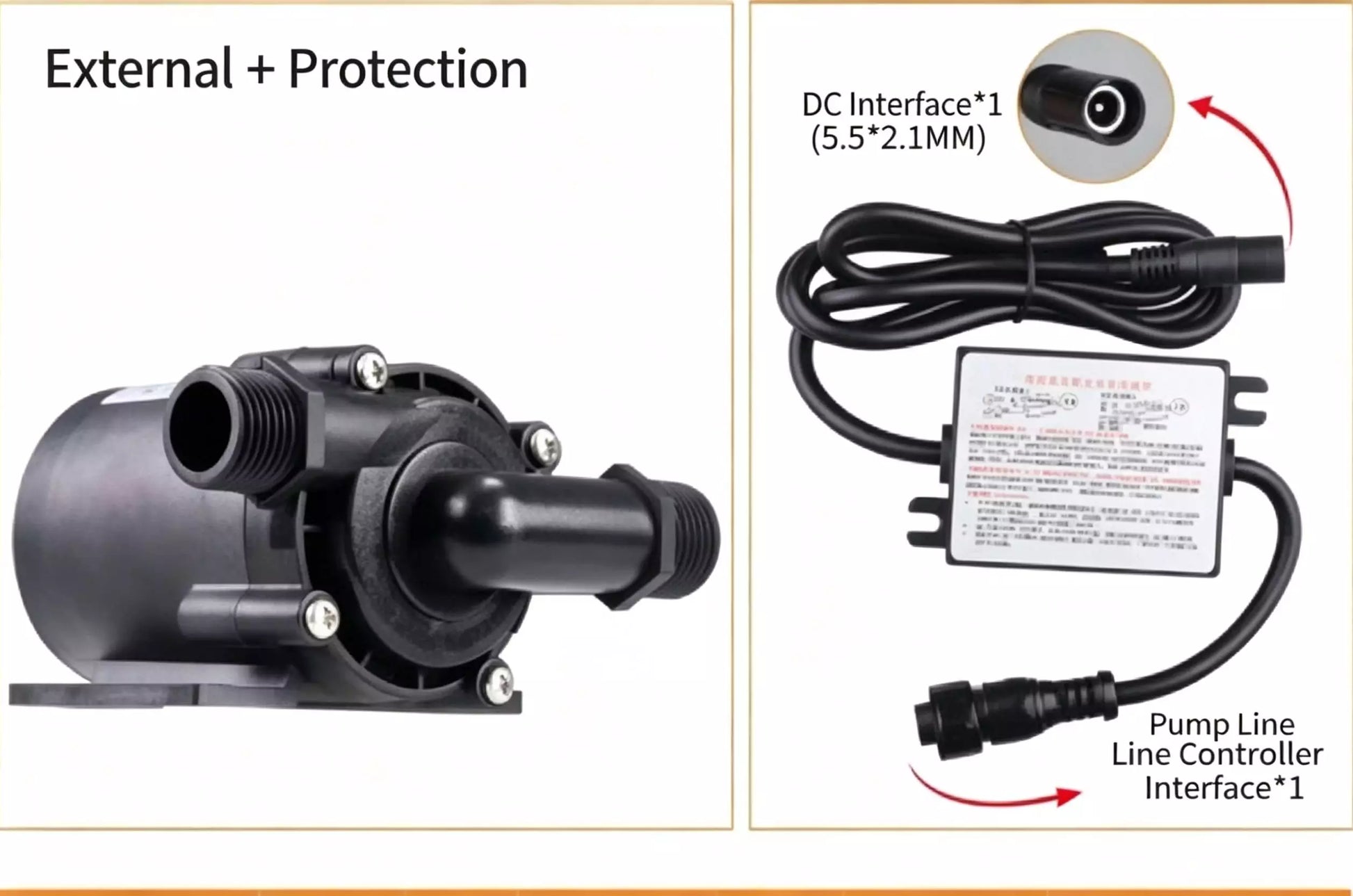

🛡️ Advanced Protection System
Built-in stall protection, dry-run protection, and low water protection. The pump protects itself.
🧪 Chemical Resistance
Resists acids, alkalis, salts, seawater, oil, and organic solvents. Perfect for chemical, marine, and lab applications.

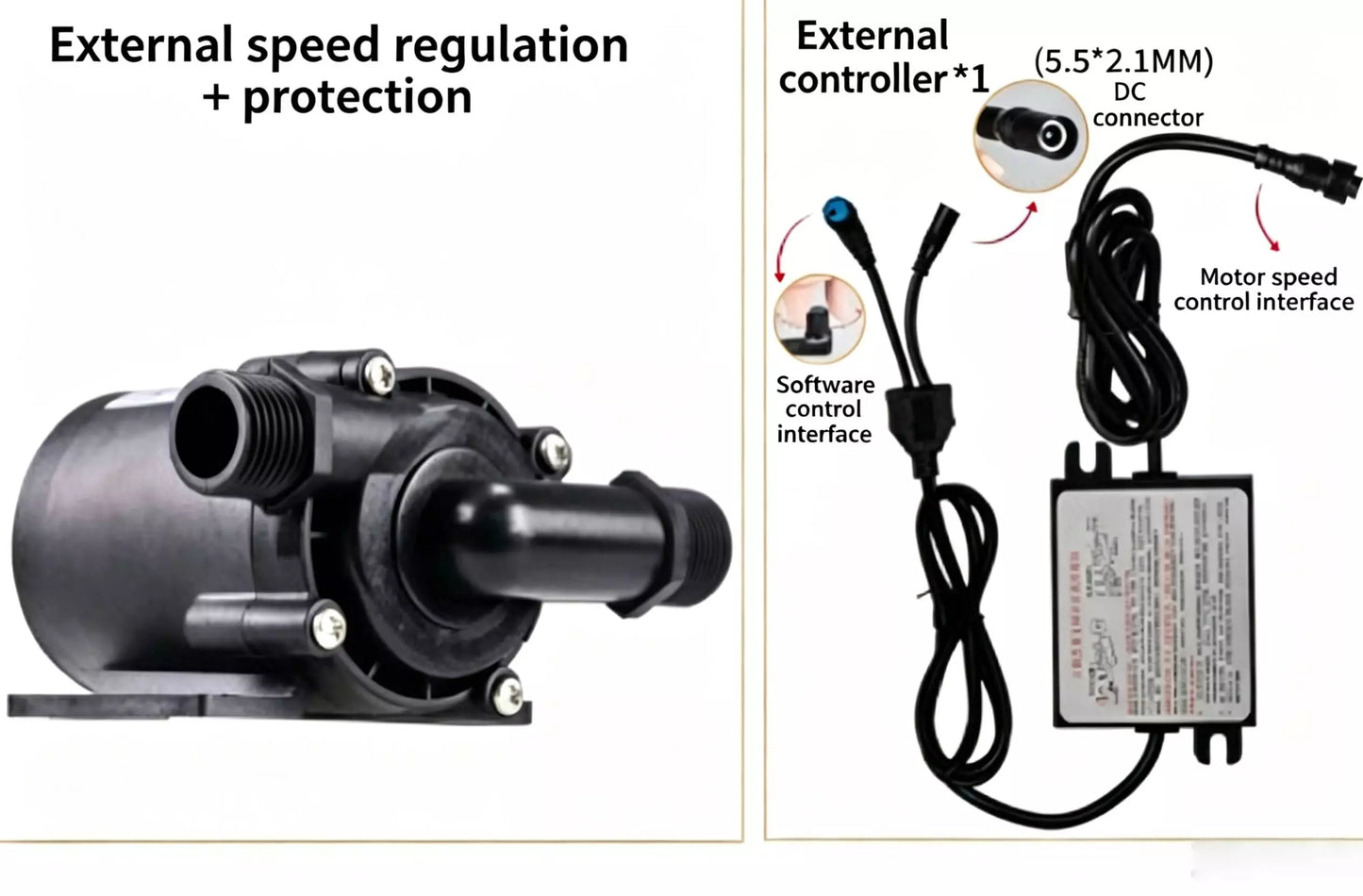

🎛️ Variable Speed Options
VR models feature adjustable speed control for precise flow management. You control the flow.
🔧 Brushless DC Motor
High efficiency, long lifespan, low noise. More durable and energy-efficient than traditional brushed motors.
🌡️ Hot Water Capable
Suitable for heating systems, underfloor heating, and hot water circulation.
⚡ Wide Voltage Range
12V models: 10-18V range. 24V models: 10-30V range. Works with batteries, solar panels, adapters.
DC55F Series Dimensions & Specifications
| Model | Rated Voltage | Voltage Range | Input Power | Max Flow | Max Head | Body Height | Total Height |
|---|---|---|---|---|---|---|---|
| DC55F-12120S | 12V | 10-18V | 42W (54W max) | 1700L/H | 12M | 78mm | 100mm |
| DC55F-12120VR | 12V | 10-18V | 42W (54W max) | 1700L/H | 12M | 78mm | 100mm |
| DC55F-24160S | 24V | 10-30V | 65W (80W max) | 1800L/H | 16M | 78mm | 100mm |
| DC55F-24160VR | 24V | 10-30V | 65W (80W max) | 1800L/H | 16M | 78mm | 100mm |
Dimensions Note:
78mm – Pump body height (without ports)
100mm – Total height (including inlet/outlet)
Suffix Explanation
| Suffix | Meaning |
|---|---|
| S | Standard version (no speed control) |
| VR | Variable speed version (adjustable flow) |
Applications
| Icon | Application |
|---|---|
| ⛲ | Small Fountains & Water Features |
| 🔥 | Heating Systems (Underfloor Heating) |
| 🏭 | Industrial Cooling (PC Water Cooling) |
| 💧 | Water Transfer & Small Irrigation |
| 🧪 | Chemical Processing (Lab/Industrial) |
| 🐟 | Aquaculture & Fish Farms |
Available Configurations
| Configuration | Includes |
|---|---|
| Basic Unit | Pump only, no accessories |

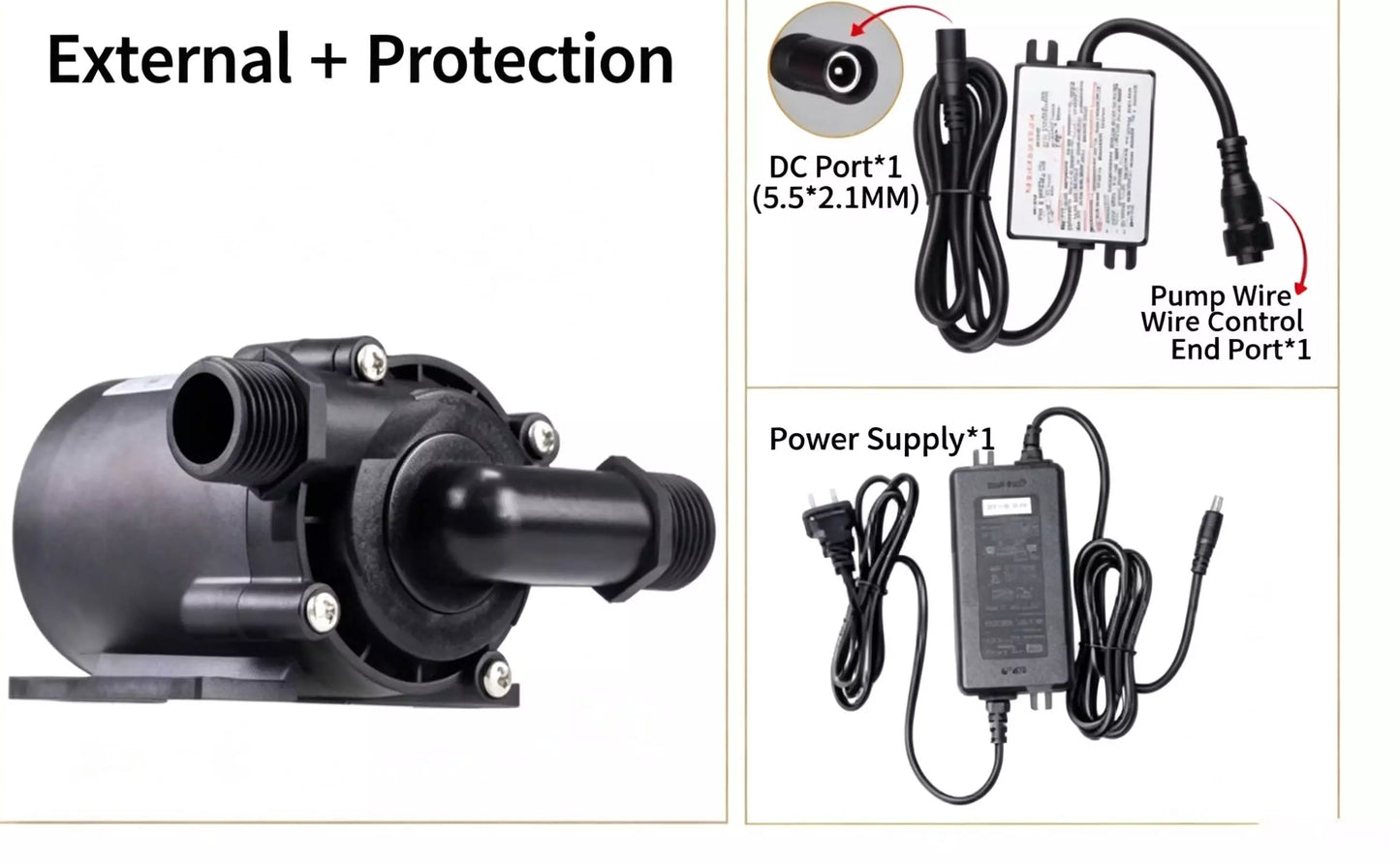

| With Power Supply | Pump + power adapter |

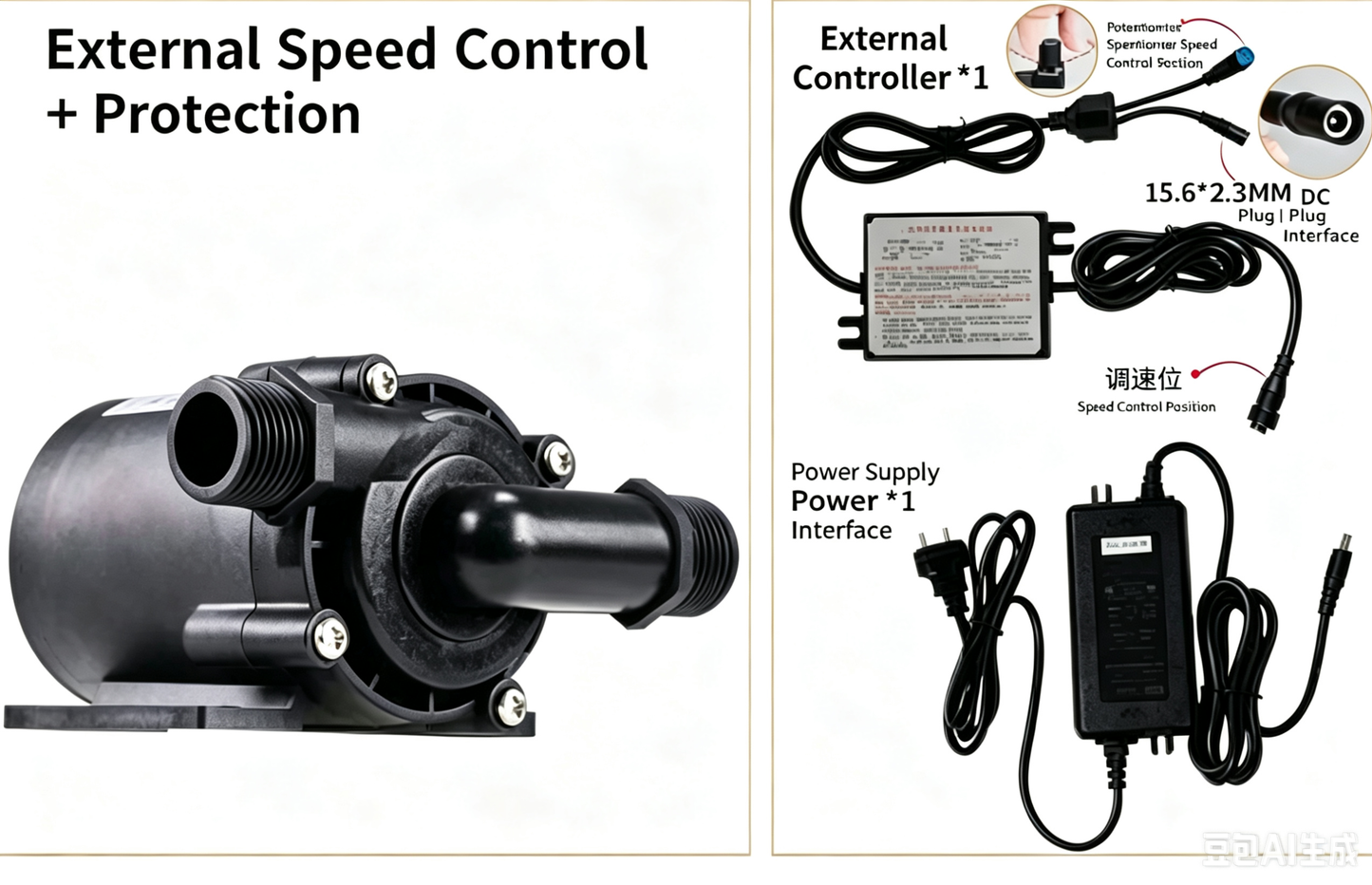

| With Speed Control | Pump + speed adjustment |
| Complete Kit | Pump + speed control + power supply |
🎥 ZKSJ Industrial Pump in Action
Customization Options
ZKSJ offers comprehensive customization:
Performance Parameters – Custom head, flow rate characteristics
Control Strategies – Custom control algorithms and operating modes
Functional Design – Specialized functions for specific applicationsAesthetic Design – Custom form factor to match your equipment
Structural Design – Modified internal structures for specialized needs
Material Compatibility – Special materials for chemical resistance
Industrial grade reliability for demanding environments.
👇 Contact Us for DC55F Series · OEM/ODM Welcome
