600-850L/H Flow · 5-12M Head · 12V/18V/24V Optional – 3-Phase Intelligent Drive, PWM/VR/VS Speed Control
Product Overview

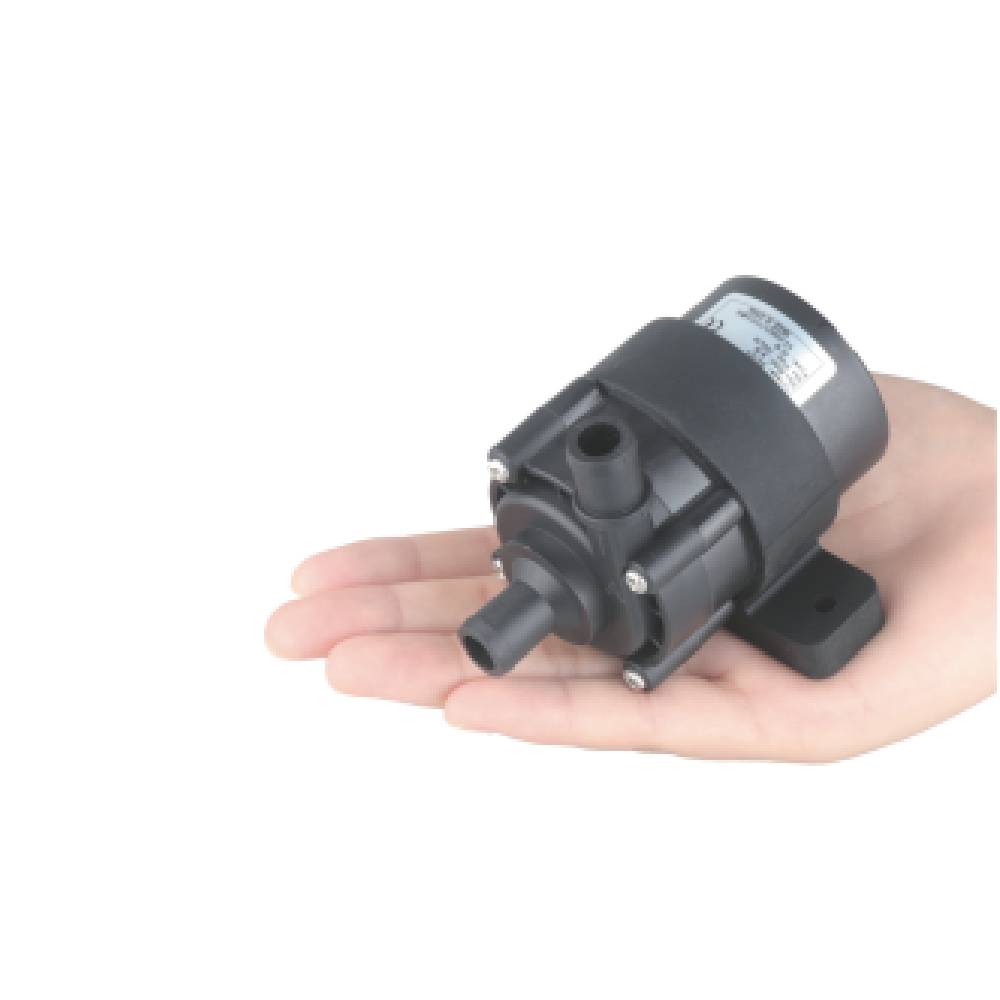

The ZKSJ DC45A is a 3-phase brushless DC pump featuring magnetic isolation design, PPS+30%GF corrosion resistant housing, IP68 waterproof, and >30,000 hours lifespan. Delivers 600-850L/H flow with 5-12M head, available in 12V/18V/24V multi-voltage options, supports PWM, 0-5V analog signal, and potentiometer speed control, with liquid temperature range -30°C to 100°C. Widely used in aquarium circulation, fountains, solar systems, chemical liquid transfer, and more.
Key Features
| # | Icon | Feature | Benefit |
|---|---|---|---|
| 1 | ⚡ | 3-Phase Brushless Motor | Intelligent program drive, high efficiency, maintenance-free |
| 2 | 📏 | Compact & Powerful | 68×68×76mm, 0.3kg – big performance |
| 3 | 💧 | 850L/H Flow | Meets small to medium circulation needs |
| 4 | 📏 | 12M Head | Suitable for various head applications |
| 5 | 🎛️ | 3 Speed Control Methods | PWM/0-5V/Potentiometer optional – flexible |

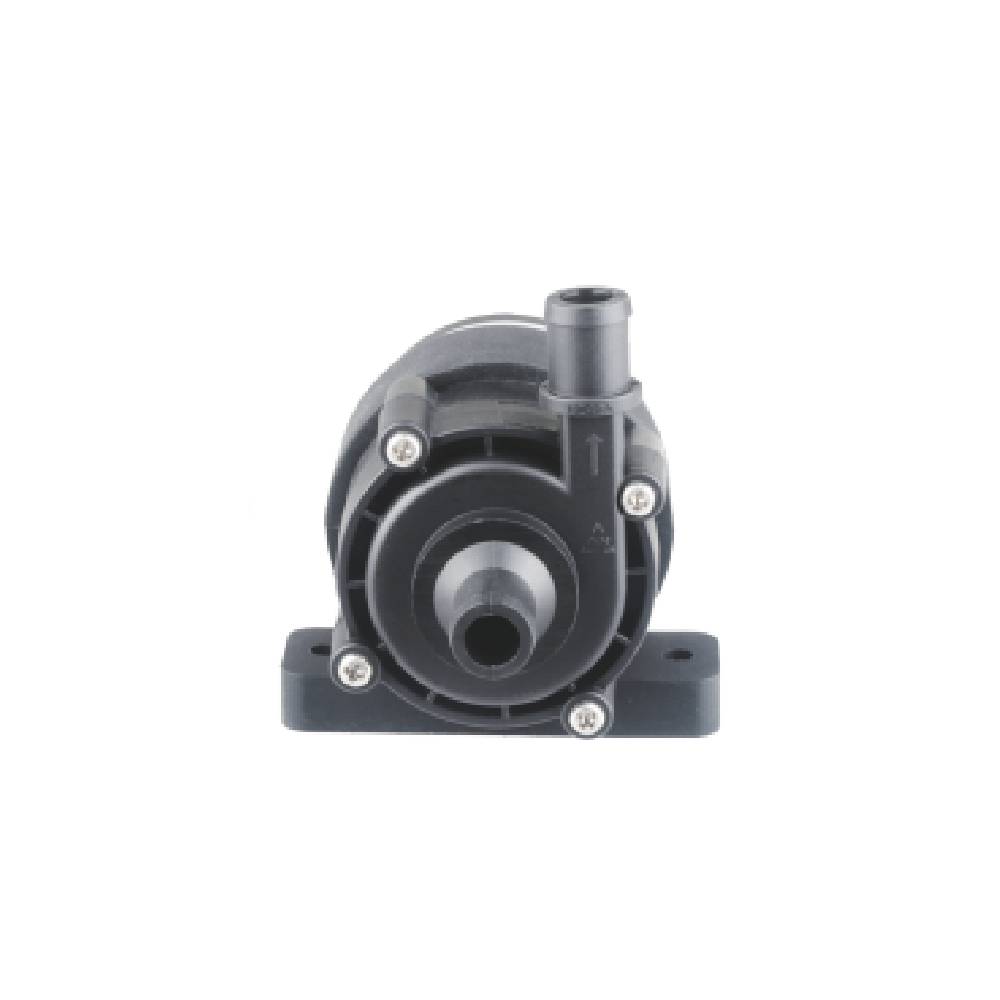

| 6 | 🧪 | PPS+30%GF Housing | Corrosion resistant, high temperature resistant |
| 7 | 🔥 | -30°C~100°C Range | Suitable for extreme environments |
| 8 | 💧 | IP68 Waterproof | Fully submersible or land use |
| 9 | 🛡️ | Multi-Protection | Water shortage/dry-run/stall protection (optional) |
| 10 | ⏱️ | >30,000 Hours Life | Continuous operation – durable and reliable |
| 11 | ⚙️ | Constant Power Output Optional | Stable power under voltage variation |
| 12 | 🔧 | Maintenance-Free | Install and forget |
Product Specifications
| NO. | Item | Specs |
|---|---|---|
| 1 | Dimensions / Weight | 68×68×76mm / 0.3kg |
| 2 | Inlet/Outlet Diameter | 12mm |
| 3 | Driving Mechanism | Brushless, magnetic separation |
| 4 | Housing Material | PPS+30%GF (Optional) |
| 5 | Condition of Use | Continuous, submersible or land use (non-self-priming) |
| 6 | Suitable Medium | Water, oil, acid/alkaline liquids (test for special liquids) |
| 7 | Max Working Temp | -30°C ~ 100°C (built-in driver, external use) |
| 8 | Noise | ≤35dB |
| 9 | Waterproof Rating | IP68 (submersible) |
| 10 | Lifespan | >30,000 hours |

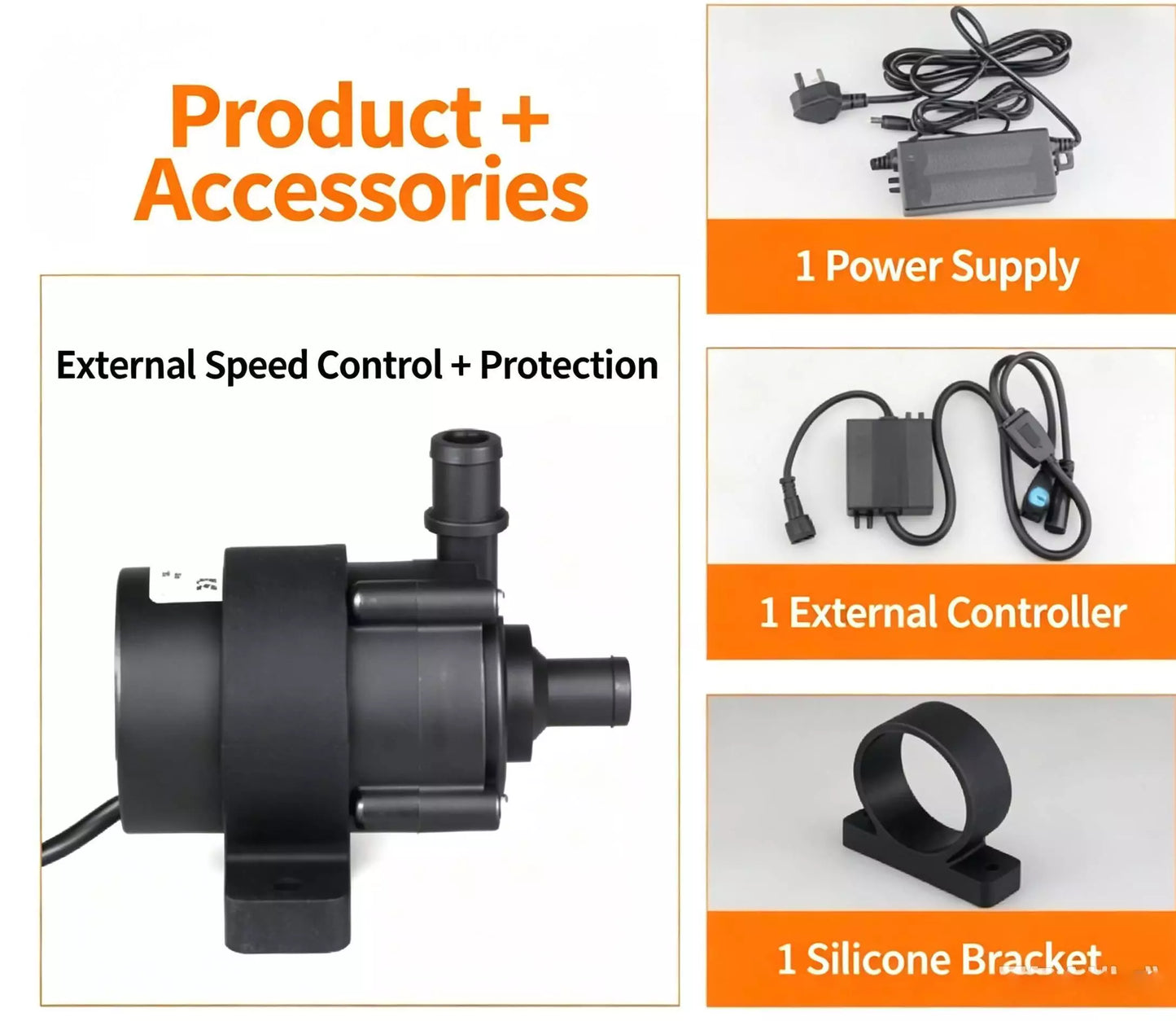

| 11 | Power Supply | Solar panel, battery, adapter, or other power module |
| 12 | Protection | Water shortage/dry-run/stall protection (optional) |

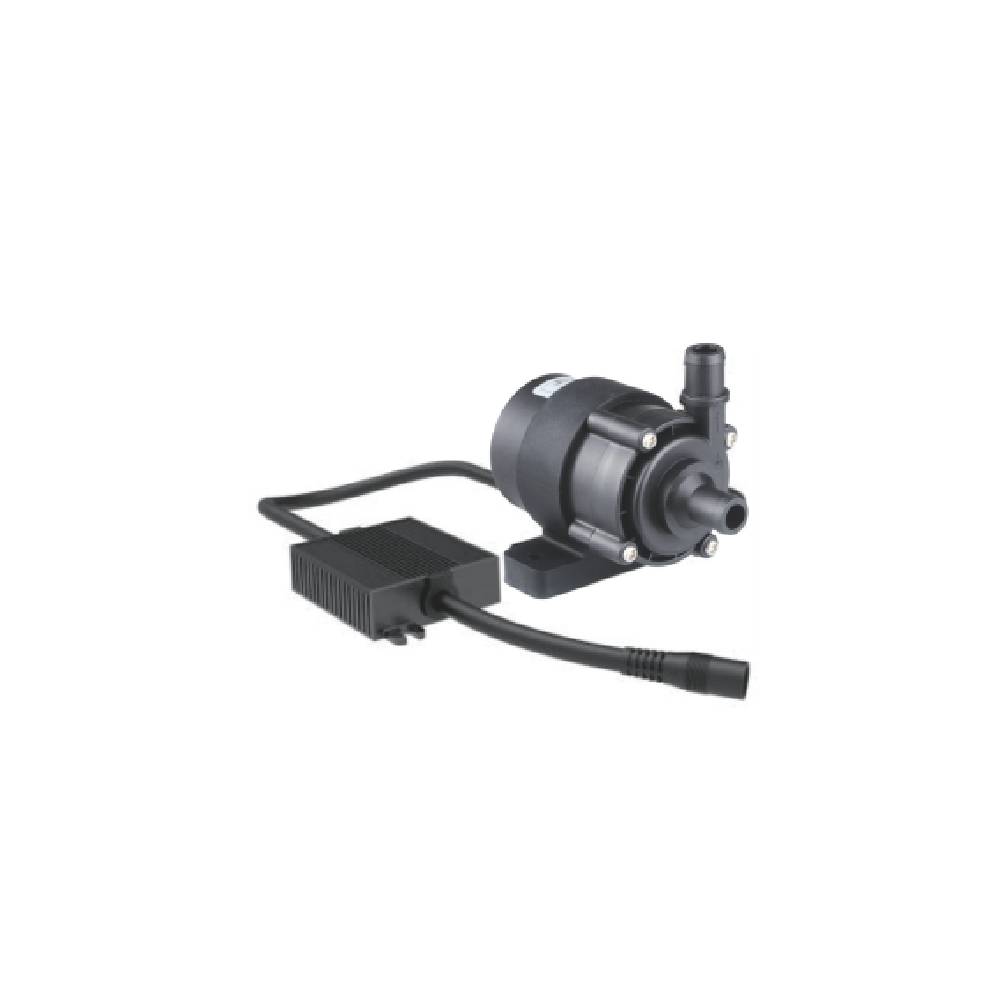

| 13 | Speed Control | PWM/0-5V analog signal/potentiometer (optional) |
| 14 | Speed Feedback | Pulse signal optional – actual speed = pulse frequency × 30 |
| 15 | Constant Power Output | Optional – stable power under voltage variation |
Model Specifications
| Model | Voltage | Working Voltage | Rated Current | Power Consumption | Max Flow | Max Head |
|---|---|---|---|---|---|---|
| DC45A-1250PWM/VR/VS/S | 12V DC | 8V~16V | 0.75A (1A) ±10% | 9W (12W) ±10% | 600L/H±10% | 5M±7% |
| DC45A-1280PWM/VR/VS/S | 12V DC | 8V~16V | 1.6A (2A) ±10% | 20W (25W) ±10% | 700L/H±10% | 8M±7% |
| DC45A-18100PWM/VR/VS/S | 18V DC | 10V~24V | 1A (1.3A) ±10% | 24W (30W) ±10% | 750L/H±10% | 10M±7% |
| DC45A-24120PWM/VR/VS/S | 24V DC | 10V~28V | 1.3A (1.7A) ±10% | 30W (40W) ±10% | 850L/H±10% | 12M±7% |
Note: Values in parentheses are open pumping current/power. Parameters are downward compatible – models can be customized to any parameter within the max power range.
Suffix Explanation
| Suffix | Meaning | Description |
|---|---|---|
| PWM | PWM Speed Control | Supports PWM signal speed control |
| VR | 0-5V/Potentiometer | Supports 0-5V analog or potentiometer speed control |
| VS | Voltage Speed Control | Supports voltage regulation speed control |

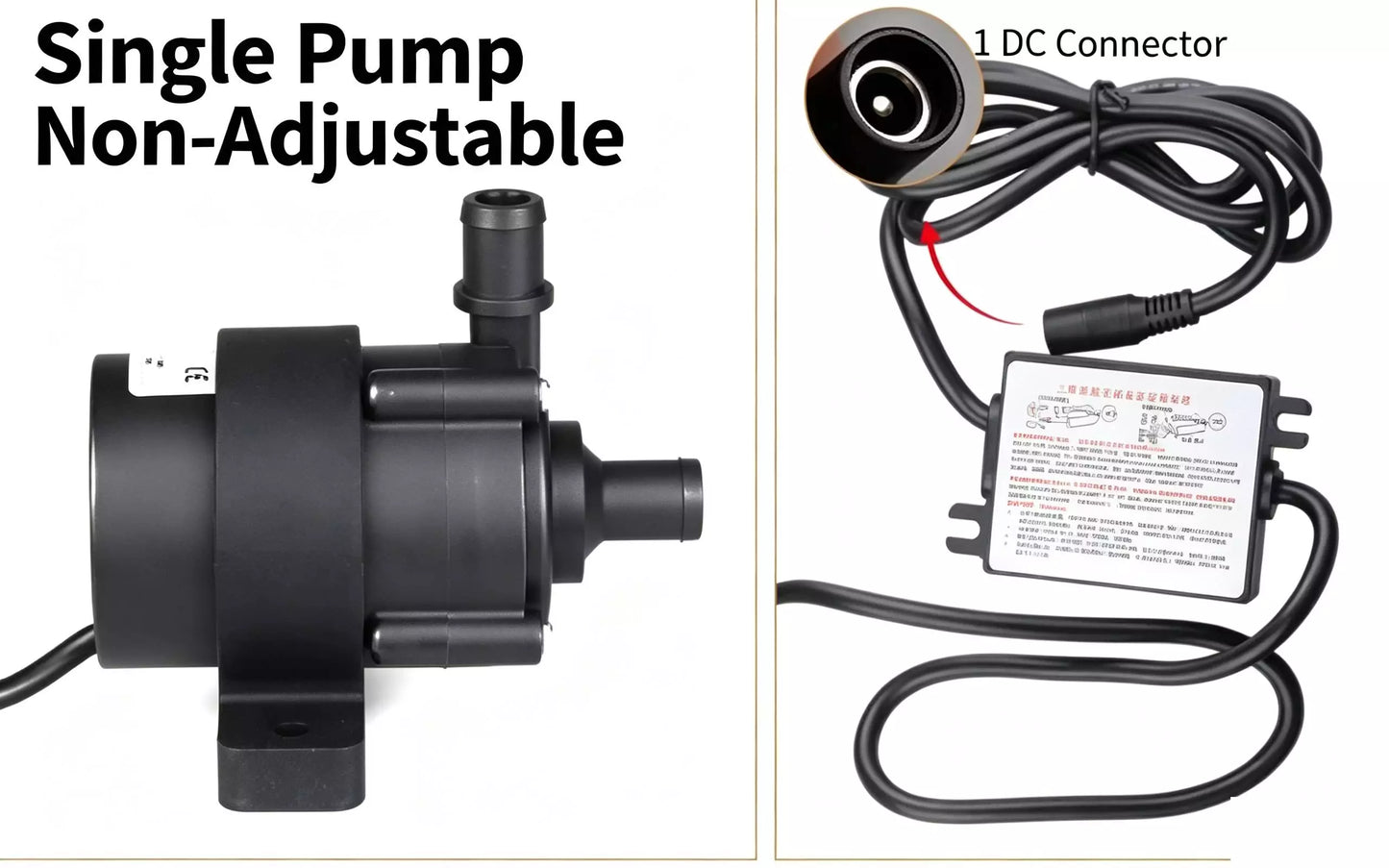

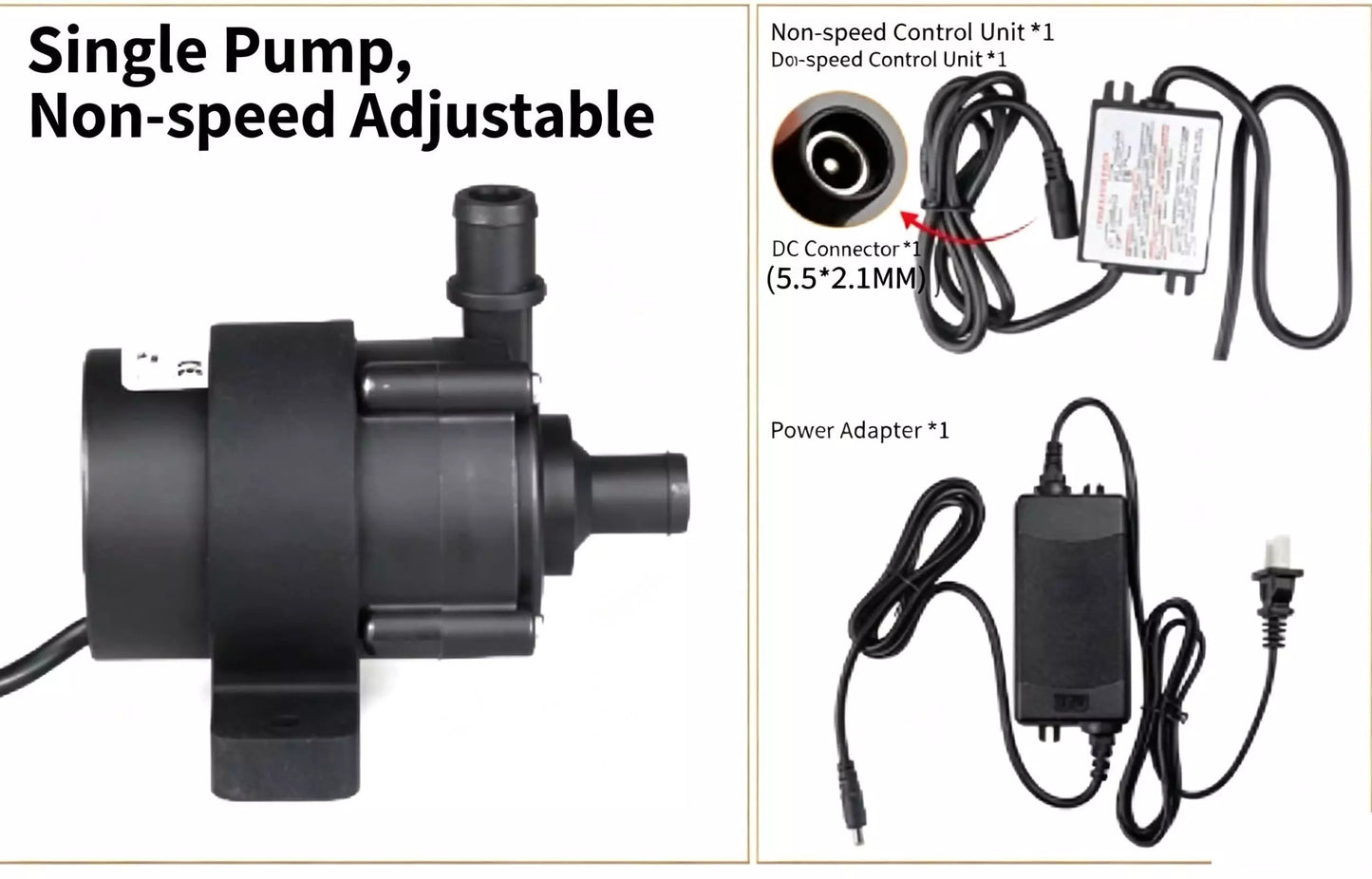

| S | Fixed Speed | Runs at max speed, non-adjustable |
Customization Options
| Item | Description |
|---|---|
| Parameter Customization | Downward compatible – customize any parameter within max power range |

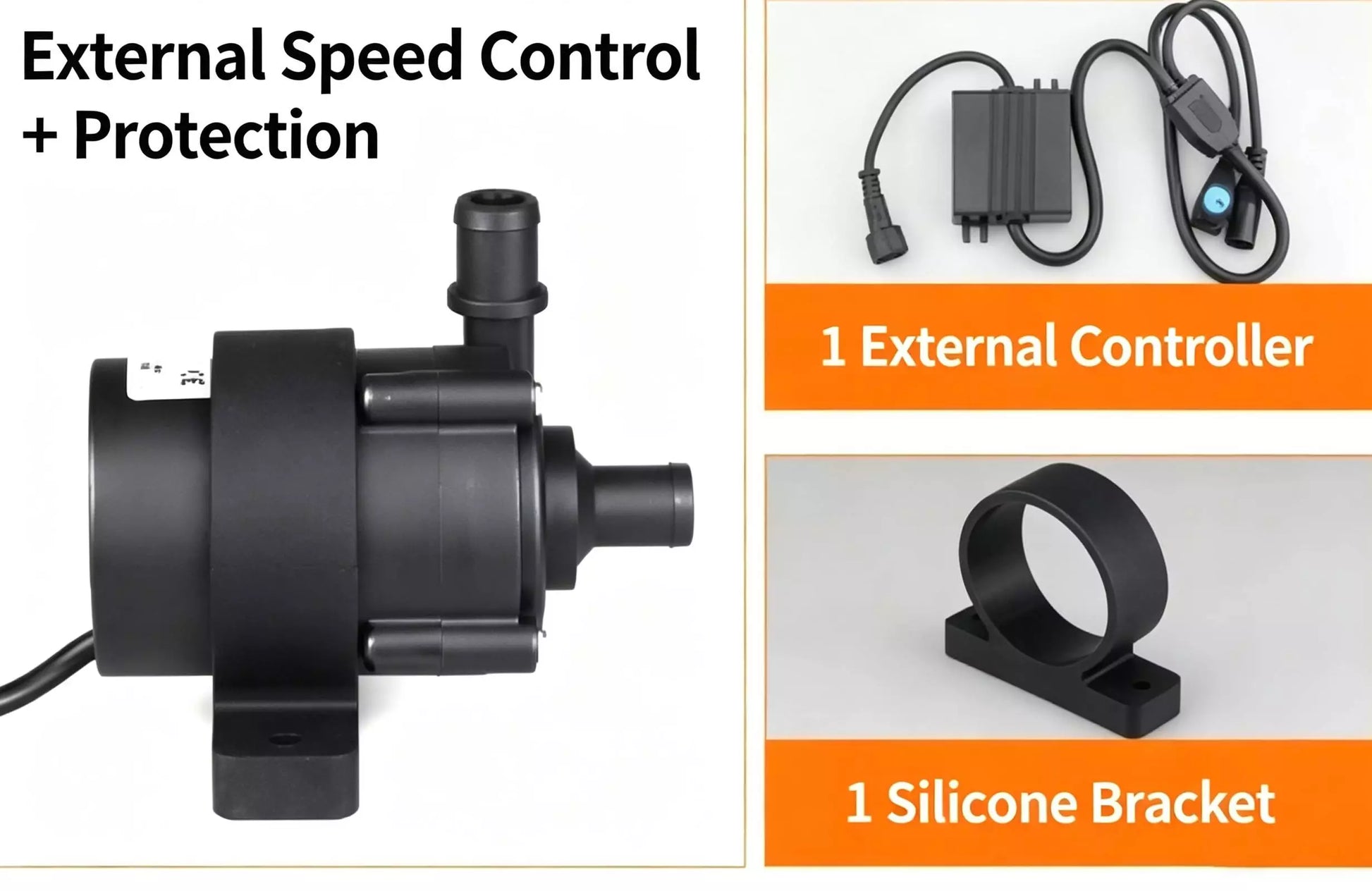

| Speed Control | PWM/0-5V analog signal/potentiometer optional |
| Protection Functions | Water shortage/dry-run/stall protection (optional) |
| Constant Power Output | Optional – e.g., 12V (24V) 10W pump maintains 10W from 12-18V (24-30V) |
| Speed Feedback | Pulse signal feedback optional – actual speed = pulse frequency × 30 |
Applications
| Category | Applications |
|---|---|
| 🐟 Aquarium | Small to medium tank circulation, filtration systems |
| ⛲ Fountain/Water Feature | Small fountain, desktop water features |
| ☀️ Solar Systems | Solar water circulation, fountain (18V model designed for solar) |
| 🧪 Chemical/Laboratory | Corrosive liquid transfer |
| 🔥 High Temperature | -30°C~100°C wide temperature range |
❓ FAQ – Frequently Asked Questions
| Question | Answer |
|---|---|
| What's the difference between PWM, VR, VS, and S? | PWM = PWM signal speed control. VR = 0-5V/potentiometer control. VS = voltage regulation control. S = fixed speed. |
| What is the 18V model for? | Designed specifically for solar panels – working voltage 10V~24V, ideal for solar systems. |
| Can it be submerged? | Yes. IP68 waterproof – fully submersible. Also works land use (non-self-priming). |
| What is the operating temperature range? | -30°C ~ 100°C (built-in driver, external use). |
| What does constant power output mean? | Power remains stable when voltage varies within a certain range. For example, a 12V 10W pump maintains 10W from 12-18V. |
| Do you offer customization? | Yes! OEM/ODM services available – parameters customizable within max power range. Contact us! |
