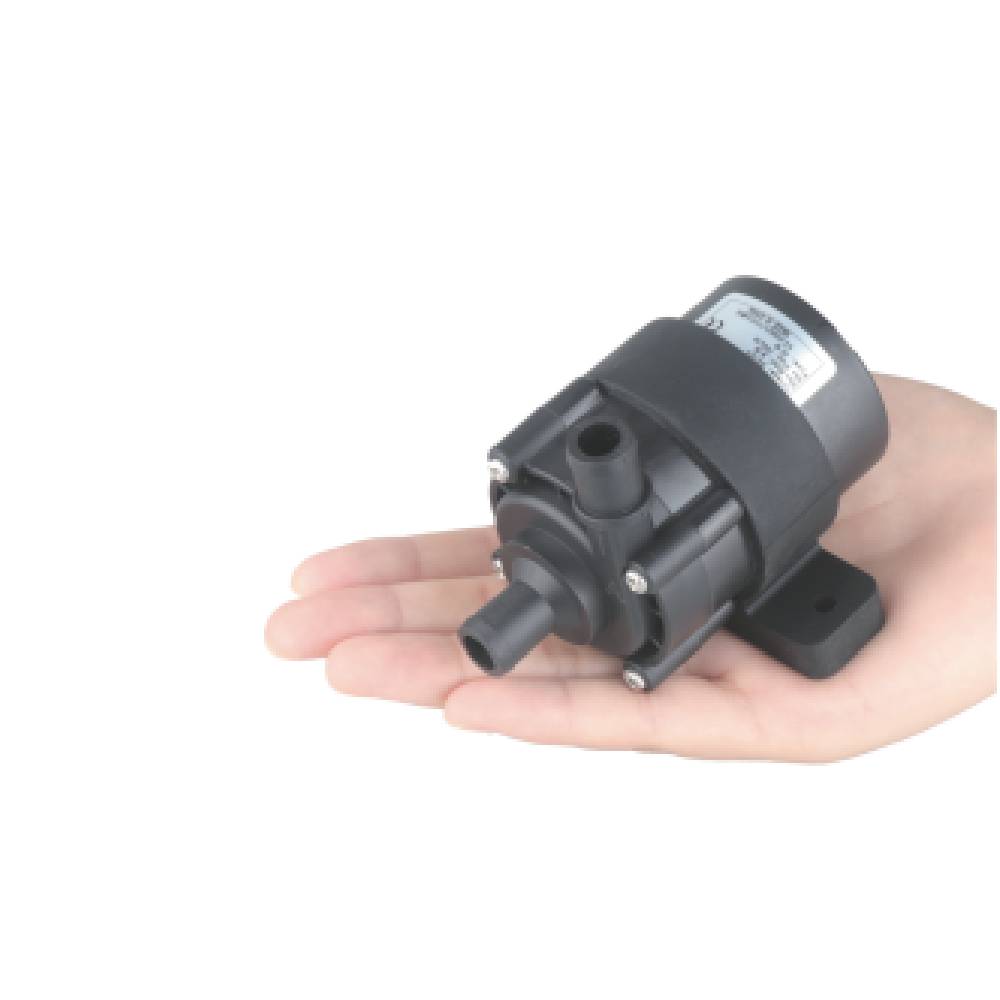

DC45A Three-Phase BLDC Pump: Hobbyist FAQ & Real-World Usage Guide
Introduction
If you’re a hobbyist building small planted aquariums, PC liquid cooling loops, compact laser chillers, mini solar off-grid water circulation, or desktop DIY fluid projects, the compact DC45A three-phase sensorless BLDC pump will catch your eye for its tiny size, long lifespan and flexible voltage options.
Most new users only check the labeled max flow on the spec sheet before buying, then run into common frustrations: weak actual water flow in tanks, confusion over IP68 saltwater compatibility, bedroom noise worries, unclear voltage model selection, and fear of pump burnout from accidental dry-run. This guide answers top searched questions from overseas aquarists & DIY builders, fully based on official DC45A datasheet parameters with no exaggerated claims.
Top Real-World FAQ From Global Hobbyists
Q1: Why is my DC45A flow much lower than rated 600/700/750/850L/H in my small aquarium?
This is the most frequent complaint among nano tank keepers. The printed max flow rate is tested under zero static head ideal conditions: no vertical lift, no pipe elbows, no filter media resistance. In real use, vertical elevation, pipeline bends and filter drag will reduce usable flow significantly, matching the DC45A official flow-head performance logic.
- 12V DC45A: Max 600L/H zero head, flow drops noticeably with increased lift
- 18V/24V DC45A: Higher max flow (700~850L/H), constant power design retains better flow output under high lift working conditions
Hobbyist Tip: Never select pumps purely by max flow rating. Calculate your actual vertical lift + pipeline friction loss, reserve extra flow margin to account for weekly filter media clogging, cross-reference static head specs to confirm real usable flow.
Q2: Does DC45A IP68 rating support long-term submersion in small saltwater nano reef tanks?
DC45A features official IP68 waterproof grade, supporting continuous full submersible installation. Critical clarification: IP68 only prevents dust/water ingress, it does not equal natural salt corrosion resistance.
Pump shell material: PPS +30% GF, compatible with freshwater & regular saltwater environments
Core reminder: Salt crystal buildup will wear pump seals over months of reef tank operation regardless of IP rating; regular disassembly & fresh water rinsing is required for saltwater use
Dual installation mode: Works for both submersible sump mounting and dry inline external installation, perfect for compact nano tank hidden equipment layout
Q3: Is DC45A ≤35dB noise quiet enough for bedroom desktop fish tanks?
Lab certified noise level is ≤35dB at 1-meter test distance. Nearly all user-reported loud noise issues come from 2 non-motor factors:
Vibration resonance from rigid pump contact with aquarium glass, cabinet or desktop surface
Water turbulence noise from poorly designed outlet plumbing & sharp elbow turns
Three-phase sensorless BLDC motors deliver far lower inherent hum than cheap two-phase mini pumps. Rattling or buzzing noise is almost always caused by improper mounting instead of pump defects. Add simple vibration isolation pads and avoid hard direct contact with glass to eliminate most noise issues for bedroom use.
Q4: Does DC45A have dry-run protection? Will it burn out if the tank sump runs low on water?
Dry-run failure is the top cause of premature mini pump damage, common in small sumps with fluctuating water levels.
DC45A integrated controller includes full protection suite: water shortage protection, dry-run protection, stall protection, overvoltage & undervoltage protection, closed outlet overcurrent protection. The pump will automatically cut power when abnormal working status is detected to protect impeller seals and motor windings from permanent damage.
Important Note: Electronic protection serves as emergency backup safety, not replacement for daily tank maintenance. Always pair with mini water level alarms for unattended bedroom nano tanks to avoid long-term accidental dry-run.
Q5: How to pick between 12V, 18V, 24V DC45A models for aquariums & DIY cooling projects?
All variants share similar compact size, but perform differently under load:
12V DC45A: Best for low-lift small freshwater planted tanks, basic desktop PC cooling loops. Working range:8-16V DC; flow attenuation is obvious under lift above 5M
18V DC45A: Balanced option for small reef tanks, medium lift DIY circulation, solar panel small power supply. Working range:10-24V DC, adapts well to minor solar voltage fluctuation
24V DC45A: Optimized for high-lift small circulation, mini solar off-grid water supply, laser chiller cooling. Wide input range:10-28V DC, stable output with large input voltage swings
All DC45A models adopt constant power output design: power stays stable within rated working voltage range even with input voltage changes, a huge upgrade over budget fixed-speed mini DC pumps.
Q6: What’s the service life of DC45A for 24/7 continuous aquarium operation?
The three-phase brushless magnetic isolation structure has official rated lifespan over 30,000 working hours. Real-world service life depends on water quality: debris entering impeller chamber and long-term salt crystal buildup will shorten lifespan. Monthly simple impeller cleaning can greatly extend pump service time.
Q7: Can DC45A adjust flow speed? What speed control options are supported?
Planted tank hobbyists need low flow for delicate plants, PC cooling builders need adjustable flow for temperature tuning, and smart DIY projects require signal control. DC45A supports multiple optional speed adjustment modes:
PWM speed control: 500-800Hz, 5V signal
VR potentiometer speed regulation: 0-5V analog signal
VS analog signal speed control: standard 0-5V analog input
S fixed-speed version: plug-and-play without external flow adjustment
Confirm you select a speed-adjustable model during purchase if variable flow is needed; fixed-speed S versions cannot be modified for external speed control.
Q8: Built-in vs External Driver: Which DC45A version fits my project?
DC45A offers two driver configurations for different scenarios:
- Built-in Driver: Ultra compact size, ideal for standard aquarium water temperature below 60℃, easy submersible installation for small tanks
- Separate External Driver: Isolates heat-sensitive driver board from high-temperature fluid (max working temp -30℃~100℃), perfect for industrial mini chillers, laser equipment high-temp cooling projects
Simplified Core Specs for Hobbyists
Overall Dimension & Weight: 89mm*68mm*76mm, net weight 0.3kg
Inlet/Outlet Outer Diameter: 12mm hose barb for easy small pipeline matching
Drive Type: Three-phase brushless BLDC, magnetic isolation structure with zero leakage risk
Waterproof Grade: IP68 for submersible installation
Operating Temperature: -30℃~100℃ (external driver supports high-temp customization above 80℃)
Continuous Operation: 24/7 long-time run support, dual submersible/land installation
Full Protection List: Water shortage, dry-run, stall, overvoltage, undervoltage, closed outlet overcurrent protection
| Model Variant | Working Voltage Range | Rated Power | Max Flow Rate | Max Static Head |
|---|---|---|---|---|
| 12V DC | 8V-16V | 9W±10% | 600L/H±10% | 5M±7% |
| 18V DC | 10V-24V | 20W±10% | 700L/H±10% | 8M±7% |
| 18V Solar | 10V-24V | 24W±10% | 750L/H±10% | 10M±7% |
| 24V DC | 10V-28V | 30W±10% | 850L/H±10% | 12M±7% |
Spec Note: DC45A supports downward parameter compatibility; max 40W power platform allows full parameter customization within 40W power limits.
Pre-Purchase Selection Checklist for Hobbyists
Calculate actual vertical lift + pipeline resistance, reference flow-head performance to confirm usable flow, avoid buying only by max flow data
Small saltwater nano reef tanks prefer 18V balanced model; low-lift small freshwater tanks choose cost-effective 12V variant
Mini solar off-grid water projects select 18V solar/24V wide voltage models for stable performance under solar voltage fluctuation
High-temperature cooling projects must pick external driver version
Confirm PWM/analog speed adjustable model during ordering if flow tuning is required
Saltwater tank use requires regular impeller & pump housing cleaning to prevent salt crystal accumulation & seal wear
Ideal Application Scenarios for DC45A Three-Phase Pump
✅ Small freshwater planted nano tanks & compact reef sump circulation
✅ Desktop PC liquid cooling loops & mini laser equipment chillers
✅ Mini solar off-grid household & small agricultural water circulation
✅ Long-term 24/7 continuous duty compact DIY high-lift circulation projects
❌ Not suitable for self-priming suction applications; it is a centrifugal pump requiring flooded inlet conditions.
