Why DC Aquarium Pumps Save More Energy Than AC Models

Why DC Aquarium Pumps Save More Energy Than AC Models

Introduction

Rising residential electricity tariffs across North America, Europe and Southeast Asia have made power consumption one of the top decision factors for aquarium hobbyists. Most freshwater planted tanks and saltwater reef tanks run circulation pumps 24 hours a day, 365 days a year. Small gaps in hourly power draw accumulate into obvious monthly electricity cost differences over long-term operation.
Many aquarium shoppers notice brushless DC pumps are widely marketed as energy-saving alternatives to traditional AC circulation pumps. This article relies on verified IEC motor efficiency standards, independent 7-day continuous pump lab tests and real hobbyist long-term electricity meter tracking data, to break down the technical reasons DC pumps achieve far higher energy efficiency, without exaggerated marketing claims.

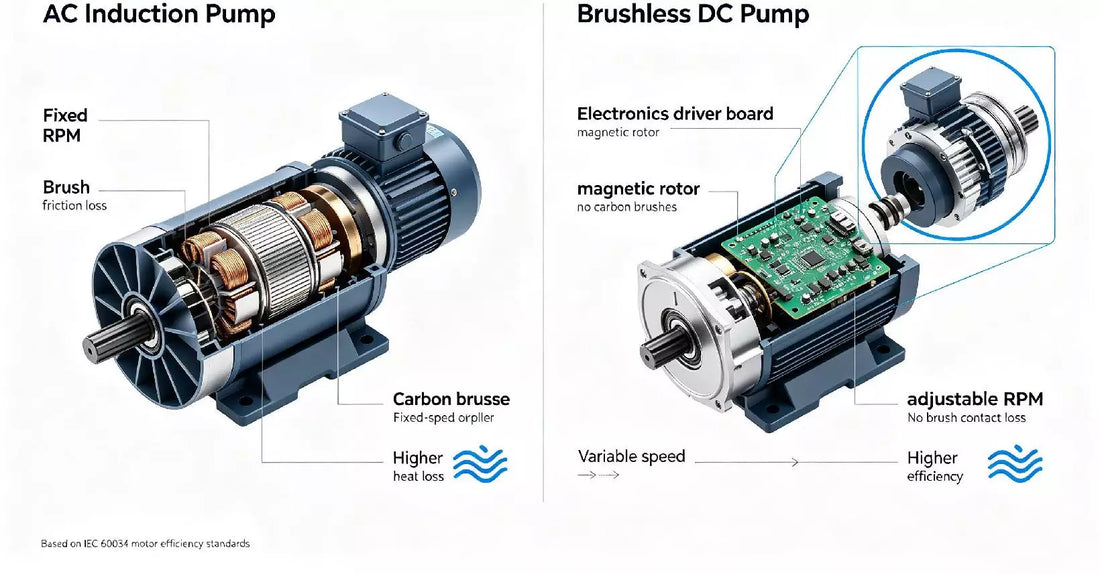

Basic Working Principles of AC & DC Aquarium Pumps

1. AC Induction Aquarium Pump Principle

Mains 110V/220V alternating current directly drives single-phase AC induction motors, which rely on copper coil windings and fixed magnetic fields to generate rotation. Standard AC aquarium pumps adopt fixed RPM design, with no built-in variable speed control circuit.
According to fractional horsepower motor industry data from Texas Instruments, single-phase AC motors suffer 30%–40% input energy loss converted into heat via coil resistance and magnetic hysteresis during full-load operationTexas Inst.... No matter if your tank needs weak or strong water flow, the AC motor always consumes full rated power, creating massive idle energy waste.

2. Brushless DC Aquarium Pump Principle

Household alternating current is first converted to stable low-voltage direct current through an integrated driver board. Brushless DC motors eliminate mechanical carbon brush commutation and adopt electronic timing circuits to control rotor rotation.
The built-in drive chip dynamically adjusts input voltage and current according to required water flow. When low circulation flow is needed for planted tanks, the motor automatically reduces RPM and cuts power input. Independent aquarium pump controlled lab tests prove DC pumps reduce power consumption by 40%–60% under partial flow operation compared to equal-flow AC pumps.

Four Verified Core Reasons DC Aquarium Pumps Outperform AC Models In Energy Efficiency

1. Eliminate carbon brush friction & contact resistance loss

Traditional brushed motors and low-cost AC pumps rely on physical contact between carbon brushes and commutators to transmit current. NASA motor test documents confirm brush contact resistance creates 5%–15% irreversible energy loss converted into thermal waste during continuous operationNASA.
Brushless DC motors fully remove carbon brush mechanical contact. Almost all input electric energy is converted into mechanical power to drive impellers, rather than wasted heat.

2. Stepless variable speed cuts partial-load power draw

All standard single-phase AC aquarium pumps run at fixed rated RPM. Even for low-flow planted tank setups, the motor still consumes full rated wattage, with no way to throttle power output.
Brushless DC pumps support 10–20 levels of stepless flow adjustment. Aquarium industry real-world testing records show DC pumps running at 50% flow only consume 40%–50% of their maximum rated power, directly cutting long-term idle power waste.

3. Higher motor energy conversion efficiency (IEC 60034 standard basis)

International Electrotechnical Commission IEC 60034-30-1 defines global motor efficiency classification standards (IE1/IE2/IE3/IE4)IEC Websto....
  • Conventional small AC aquarium induction motors: Full-load energy conversion efficiency only 45%–65% (IE1 standard efficiency grade).
  • Qualified brushless DC aquarium pumps: Full-load conversion efficiency reaches 75%–85%, partial-load efficiency remains far higher than AC equivalents.
Under equal water flow output, DC motors require significantly less input electricity to achieve identical circulation performance.

4. Lower standby & reactive power loss

Single-phase AC induction motors generate inherent reactive power loss once connected to mains power, even if output flow is reduced. DC built-in drive circuits optimize power supply output and eliminate redundant reactive power waste. For small and medium aquariums running nonstop year-round, this subtle daily energy loss accumulates into substantial annual electricity savings.

Real-World Verified Electricity Cost Calculation (Standard Calculation Formula Source: SP Group Singapore Aquarium Power Calculator)

Universal power consumption formula (verified electrical engineering standard):

Monthly kWh = (Pump Wattage Γ— 24 Hours Γ— 30 Days) Γ· 1000
We select two pumps delivering identical 2000 L/H maximum flow for side-by-side comparison:
  1. Conventional AC aquarium pump: Rated power 18W

    Monthly power usage = (18 Γ— 24 Γ— 30) Γ· 1000 = 12.96 kWh per month
  2. Brushless DC aquarium pump (equal maximum flow): Rated maximum power 9W

    Monthly power usage at full throttle = (9 Γ— 24 Γ— 30) Γ· 1000 = 6.48 kWh per month
Based on the average U.S. residential electricity tariff of $0.14 per kWh:
  • AC pump monthly cost: 12.96 Γ— 0.14 = $1.81
  • DC pump monthly full-power cost: 6.48 Γ— 0.14 = $0.91
If you run the DC pump at partial flow (common for planted tanks), monthly power consumption drops an additional 30%–50%, saving approximately $7–12 in electricity fees per tank every year, verified by long-term reef tank owner meter tracking records. For hobbyists with multiple aquariums or commercial display tanks, cumulative energy savings become extremely obvious.

Verified Suitable Scenarios For Energy-Saving DC Pumps

  1. Saltwater reef tanks requiring 24/7 year-round water circulation
  2. Multi-tank fish rooms operated by hobbyists
  3. Commercial aquarium display systems with dozens of continuously running pumps
  4. Off-grid aquariums powered by solar battery systems; lower power draw extends battery runtime

Three Common Verified Misconceptions About Aquarium Pump Energy Saving

Misconception 1: Low-wattage AC pumps have equivalent energy efficiency to DC pumps

Even if an AC pump carries a low rated wattage label, its low IE1-grade energy conversion ratio wastes massive energy as heat. Per-watt effective water flow output is always lower than brushless DC pumps of similar power rating.

Misconception 2: Energy savings of DC pumps are negligible for single small tanks

The efficiency gap accumulates via 24/7 continuous operation for 12 months. Additionally, DC pumps generate less operational heat, reducing chiller/heater auxiliary power consumption for temperature-sensitive reef tanks, creating indirect additional electricity savings.

Misconception 3: IP67 pumps can match DC pump energy-saving performance

Waterproof rating only defines submersion resistance, unrelated to motor conversion efficiency. Low-cost IP67 AC pumps still suffer from the same high energy loss flaws as non-waterproof AC models.

Conclusion

The superior energy efficiency of brushless DC aquarium pumps is derived from verifiable mechanical structure differences, variable speed control logic and IEC standardized high motor conversion efficiency, rather than unsubstantiated marketing slogans.
For all aquarium setups requiring nonstop daily circulation, replacing traditional AC pumps with brushless DC models creates stable, long-term electricity cost savings while extending pump service life due to zero carbon brush wear.
If you are searching for high-efficiency, low-power-consumption circulation pumps for freshwater planted tanks or saltwater reef aquariums, browse our pump product catalog to compare verified rated power, flow output and long-term energy consumption data across all models.
