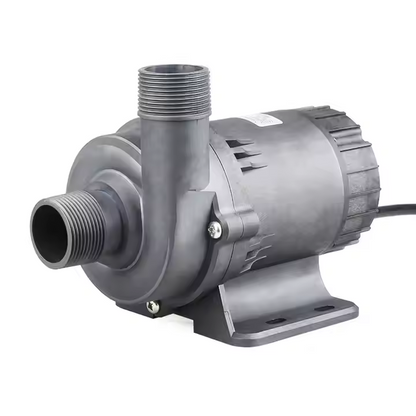

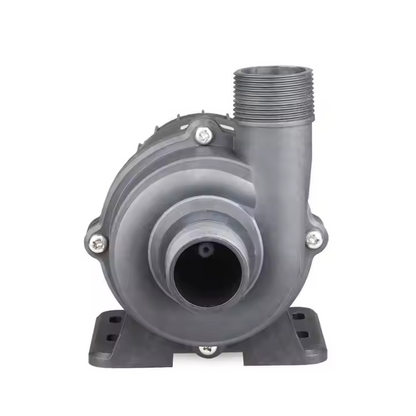

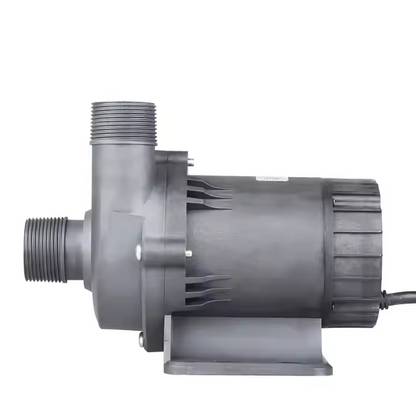

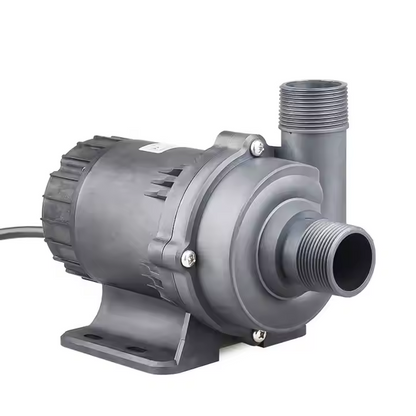

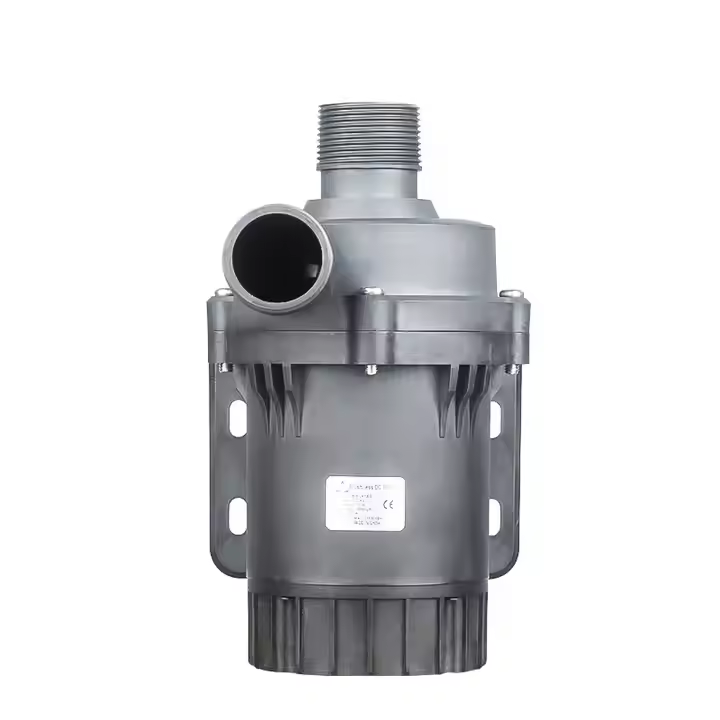

ZKSJ water pump DC85E brushless DC variable frequency water pump large flow 13500L/H fountain pump

Characteristics of three-phase water pump

1.DC Low voltage safe and reliable

2.Three phase brushless sine wave control technology

3.Eliminate high-frequency electromagnetic noise, smooth and silent

4.The pump body and the drive can be separated and resistant to high temperature

5.Magnetic isolation design, leakage proof, waterproof grade IP68.

6.Acid, alkali and salt corrosion resistance, oil resistance, organic solvents and other liquid media (consult in advance)

7.Constant power can be customized (for example, 12V 80W water pump, Constant Power 80W with voltage varying between 12v-24v)

8.Constant speed can be customized (keep the speed unchanged when the load changes)

9.Accurate dry run protection and Jam protection based on current detection (programmable protection mechanism)

10.Soft start eliminates the peak voltage and reduces the starting current

11.Suitable for Music fountain and other high-frequency start- stop application

12.MPPT function can be customized for solar power supply to avoid poor startup when the light is weak.

13.The pump and pump control system can be customized for various application environment requirements

Product features
Product name:ZKSJ DC85E pump
Product name:DC85E
Weight：3.5kg
Life span≥30000h
Waterproof GradeIP68
Colorblack
CertificationCE,ROSH
Material of pump shellPPS+30%GF
Noise class≤
Impeller： Closed Impeller
Max head： 10M
Weight： 3.5kg
Rated voltage： 24Vdc
Max flow： 13500L/H

Application Scenario



Pefrormance Curve

Dimension

How to install
