ZKSJ DC55B Brushless DC Pump 2400L/H 16M Head PPS+30%GF IP68 Waterproof

$54.00

~~$18.00~~ $54.00

Sale Sold out

Shipping calculated at checkout.

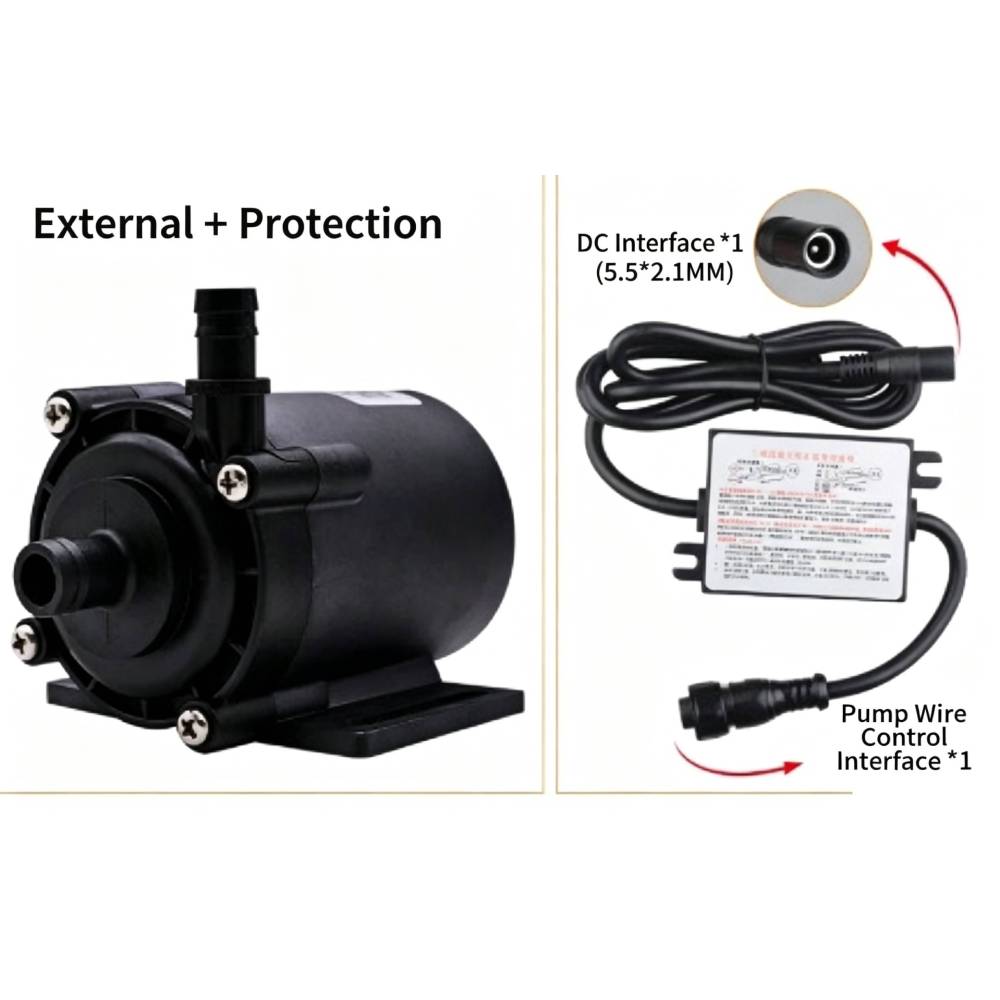

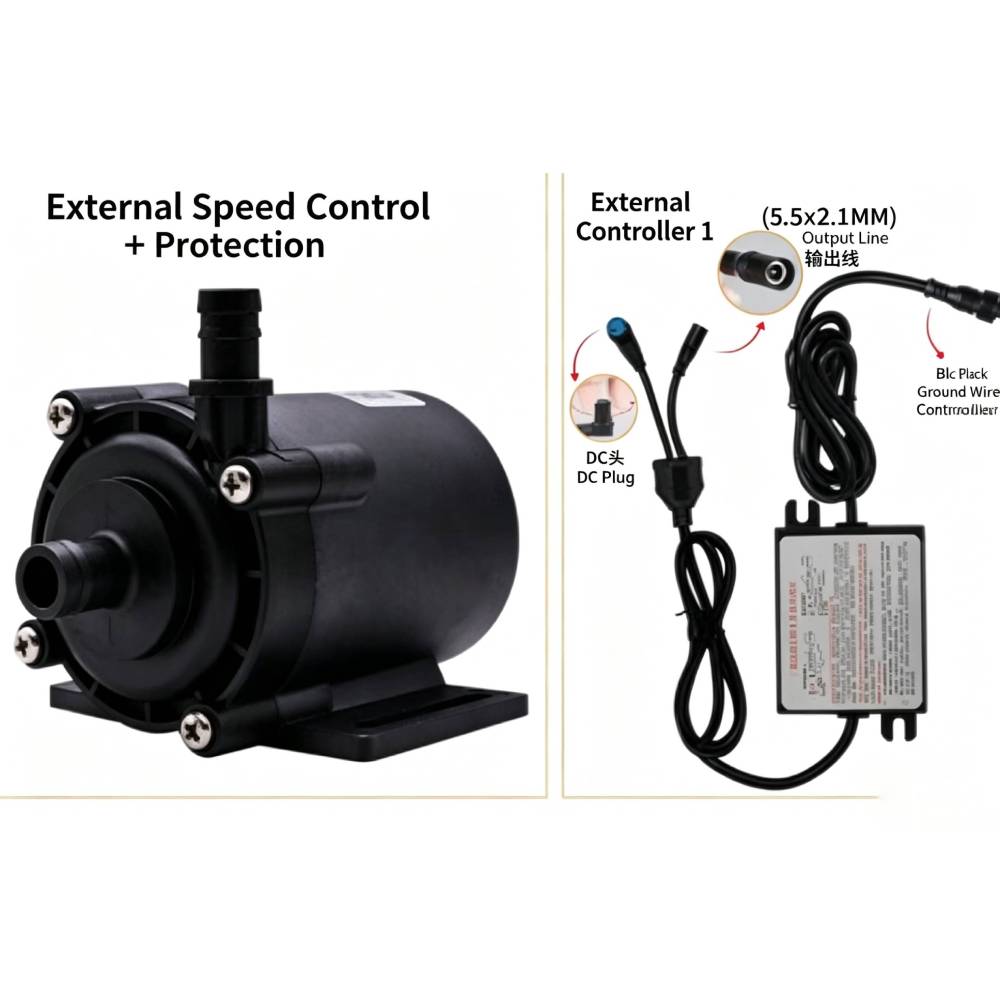

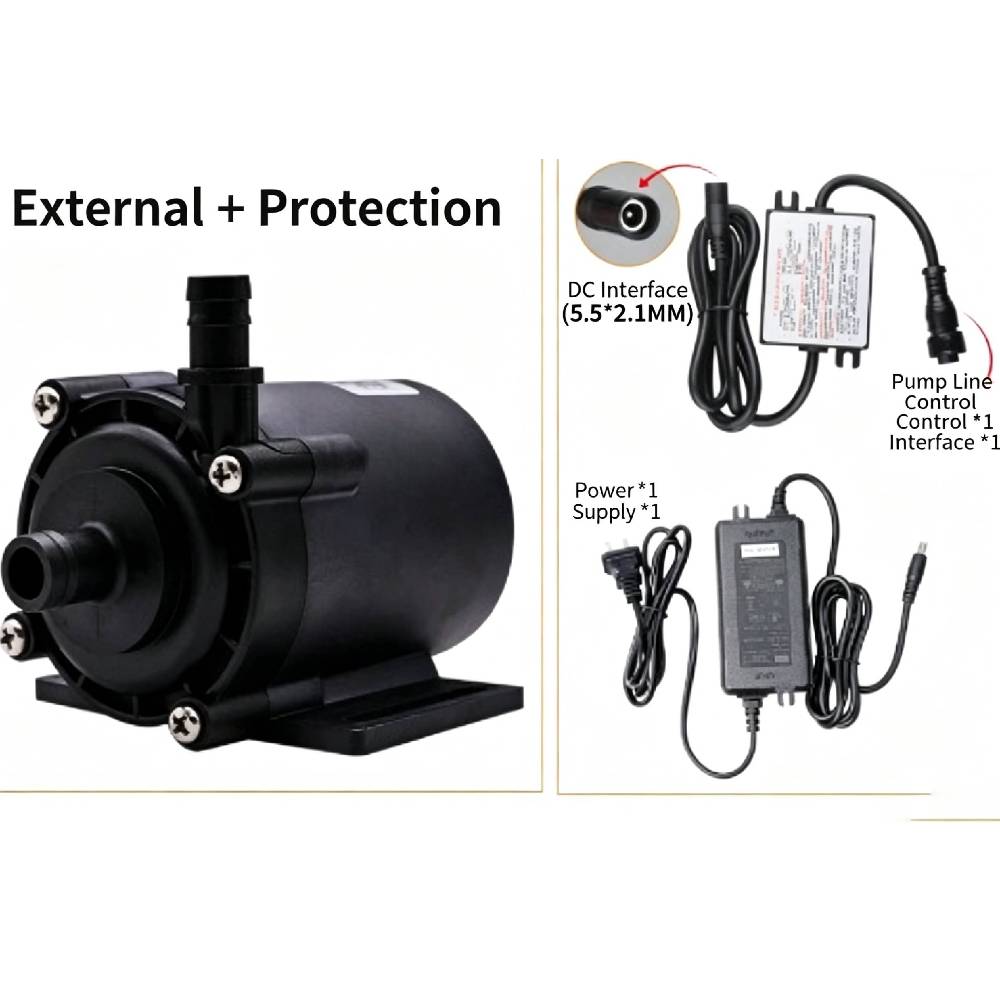

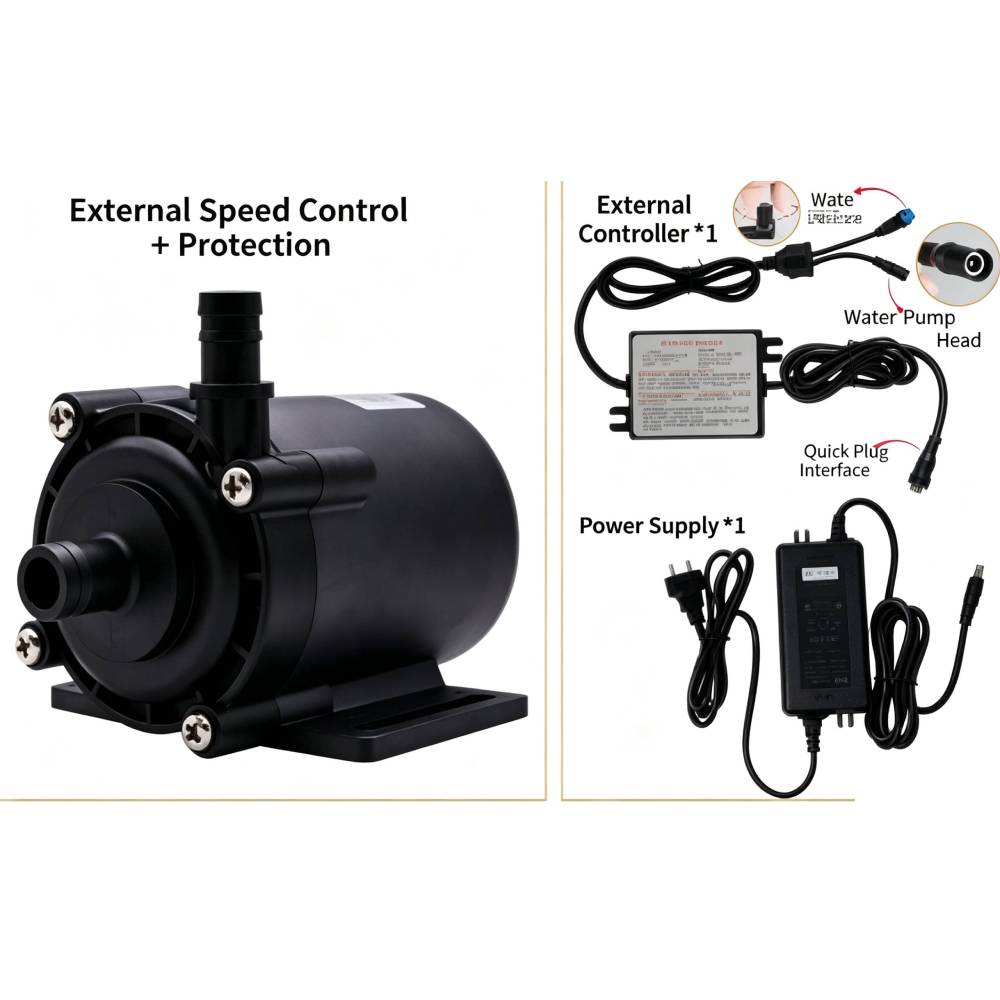

Model DC55B-12120S External Pump with Protection Function DC55B-12120S External Pump (With Protection) + Power Supply DC55B-12120VR External Pump (With Protection) + Speed Control DC55B-12120VR External Pump (With Protection) + Speed Control + Power Supply DC55B-24160S External Pump with Protection Function DC55B-24160sS External Pump (With Protection) + Power Supply DC55B-24160VR External Pump (With Protection) + Speed Control DC55B-24160VR External Pump (With Protection) + Speed Control + Power Supply

Quantity

EV Cooling · Industrial Circulation · Cooling Systems – Compact, High Efficiency, Magnetic Drive, Long Life

Product Overview

The ZKSJ DC55B is a high-performance brushless DC pump featuring PPS+30%GF corrosion resistant housing, magnetic isolation drive, and IP68 waterproof rating. Delivers up to 2400L/H flow and 16M max head with service lifespan ≥30,000 hours of continuous operation. Widely used in EV cooling systems, industrial liquid circulation and industrial cooling circulation systems.

Key Features

Icon Feature Benefit

1 ⚡ Brushless DC Motor (EC Motor) Magnetic drive, high efficiency, maintenance-free

2 📏 Compact & Powerful 102×78×80mm, 0.52kg – compact size with outstanding hydraulic performance

3 💰 Low Consumption 42-65W rated power, stable energy-saving operation

4 ⏱️ ≥30,000 Hour Lifespan Supports long-term uninterrupted continuous working

5 🛡️ Safe & Explosion-Proof No electric spark during operation, low voltage design for high safety

6 🔇 Ultra Quiet ≤35dB operating noise, ultra quiet running for indoor equipment

7 💧 100% Waterproof IP68 fully submersible, fully sealed waterproof structure

8 🔧 Maintenance-Free Magnetic isolation design without mechanical seal wear, install and forget

9 ☀️ Wide Voltage Range 12V/24V/36V multiple voltage options, compatible with solar power systems

10 🧪 Corrosion Resistant PPS+30%GF reinforced housing, resistant to acid, alkali, oil and saltwater

Product Specifications

Parameter	Specification
Product Name	Brush-less DC Pump DC55B
Model No.	DC55B

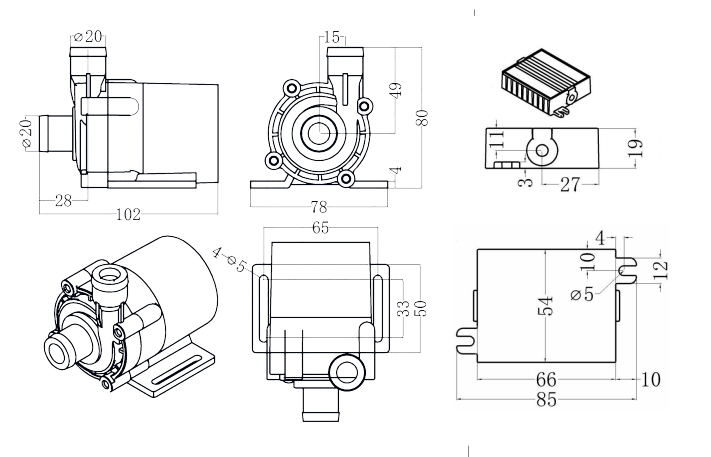

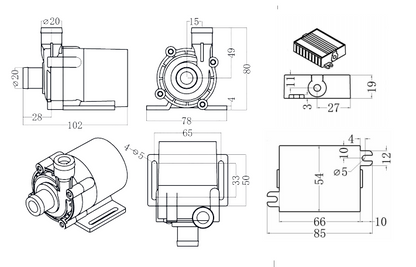

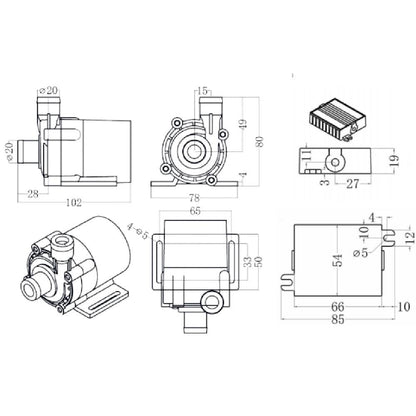

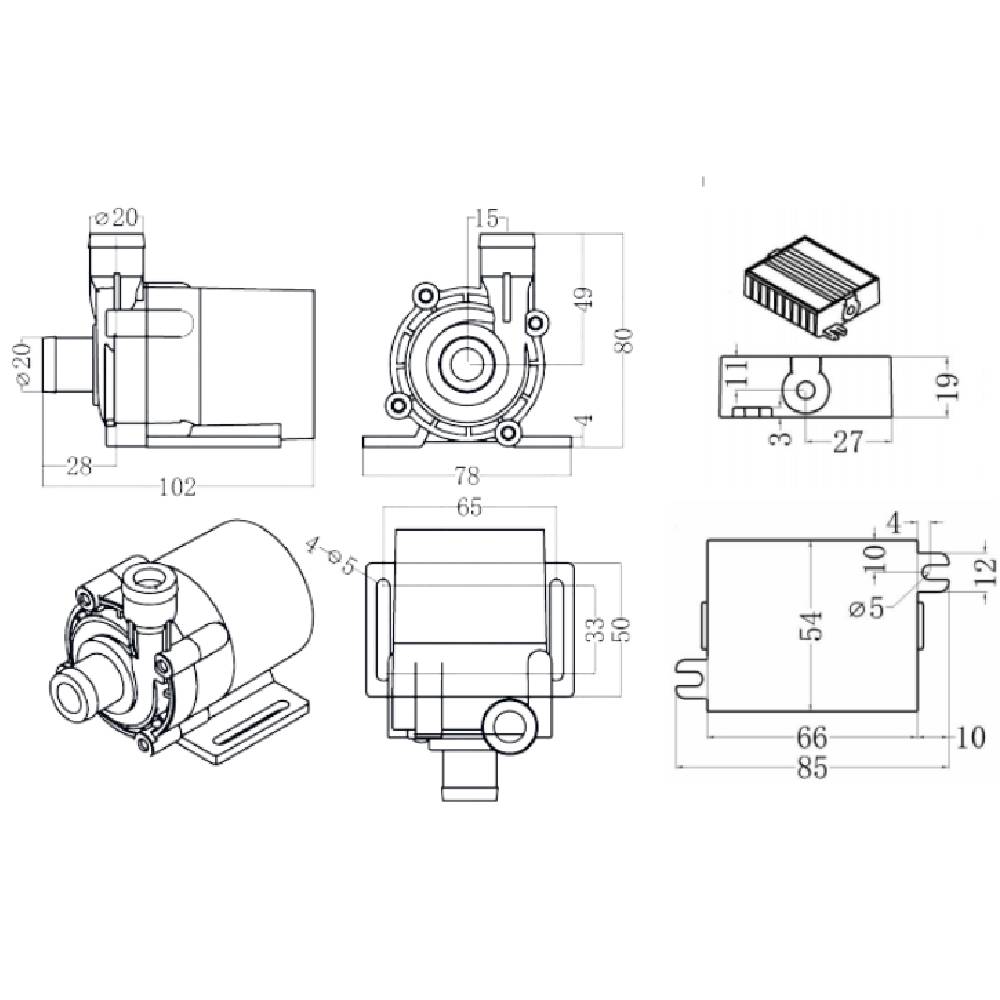

Overall Size	102×78×80mm
Net Weight	0.52kg
Inlet & Outlet Port	20mm / 20mm
Shell Material	PPS+30%GF
Waterproof Level	IP68
Continuous Service Life	≥30,000 hours
Operating Noise	≤35dB
Bearing Pressure Resistance	≥0.5MPa (5kg)
Insulation Grade	H Grade (180°C)
Working Principle	Centrifugal Pump
Certifications	CE, ROHS
Color	Black

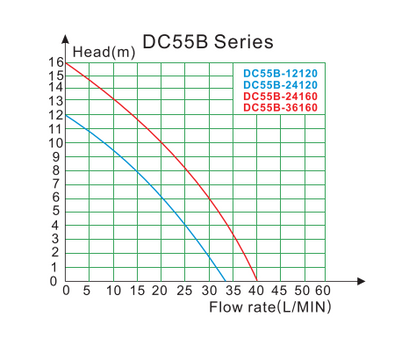

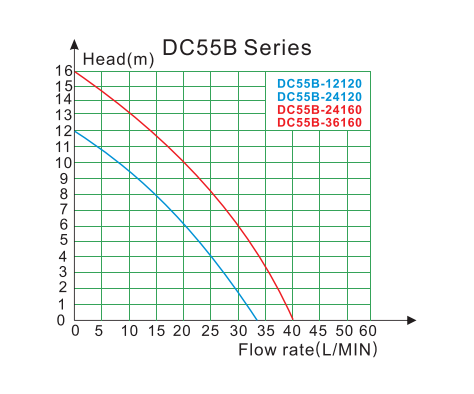

Model Specifications

Model Code	Voltage	Current	Max Head	Max Flow	Rated Power	Open Outlet Power
DC55B-12120VR	12V DC	3.5A	12M	2000L/H	42W	54W
DC55B-12120S	12V DC	3.5A	12M	2000L/H	42W	54W
DC55B-24120VR	24V DC	1.4A	12M	2000L/H	42W	54W
DC55B-24120S	24V DC	1.4A	12M	2000L/H	42W	54W
DC55B-24160VR	24V DC	2.7A	16M	2400L/H	65W	80W
DC55B-24160S	24V DC	2.7A	16M	2400L/H	65W	80W
DC55B-36160VR	36V DC	1.8A	16M	2400L/H	65W	80W
DC55B-36160S	36V DC	1.8A	16M	2400L/H	65W	80W

Note: Values in parentheses are open outlet power.

Suffix Explanation

Suffix	Meaning	Detailed Description
VR	Variable Speed	Support stepless flow & speed adjustment, adaptable to various cooling circulation requirements
S	Fixed Speed	Run at maximum flow speed constantly, non-adjustable, plug and play directly

Main Applications

Icon Application Description

🚗 EV Cooling Systems OBC charger cooling, DC/DC converter cooling, new energy vehicle battery & motor cooling

🏭 Industrial Circulation Mechanical equipment constant temperature cooling, industrial liquid closed circulation

❄️ Cooling Circulation Systems Industrial chiller circulation, water-cooled air conditioning liquid circulation

Selection Guide

Application Demand	Recommended Model	Feature Description
12V power system matching	DC55B-12120VR/S	Max head 12M, max flow 2000L/H, suitable for small cooling devices
24V medium flow circulation	DC55B-24120VR/S	Stable 2000L/H flow under 12M head, standard industrial circulation solution
24V high head & high flow heavy-duty use	DC55B-24160VR/S	Max head 16M, max flow up to 2400L/H for high-demand liquid transfer
36V solar off-grid industrial equipment	DC55B-36160VR/S	16M head & 2400L/H flow, perfectly compatible with solar power supply systems
Need adjustable flow & speed control	VR series model	Match external controller to realize stepless flow regulation
No speed adjustment required	S series model	Direct plug-and-play, maintain maximum hydraulic performance all the time

❓ FAQ – Frequently Asked Questions

Question	Standard Answer
What is the difference between VR and S models?	VR is variable speed model with adjustable flow rate; S is fixed speed model running at maximum flow permanently.
Is the running noise really ≤35dB?	Yes. Its operating sound is quieter than the quiet environment inside a library.
What voltage options are available for this pump?	Three voltage versions for selection: 12V, 24V and 36V DC.
What material is the pump housing made of?	PPS+30%GF reinforced plastic, which resists acid, alkali, oil, saltwater and high temperature corrosion.
Can this pump deliver hot liquid?	The standard pump supports liquid temperature up to 60°C. Custom high-temperature resistant versions are available upon request.
What is the waterproof rating of this circulation pump?	IP68 full waterproof grade; the pump body can work fully submerged in liquid.
Do you provide OEM & ODM customized services?	Yes, we support full OEM & ODM customization. Please contact our sales team for detailed cooperation information.

Compact, high efficiency. 2400L/H flow, 16M head. PPS corrosion resistant. IP68 waterproof.👇 Contact Us for ZKSJ DC55B · Wholesale Welcome · OEM/ODM Available
