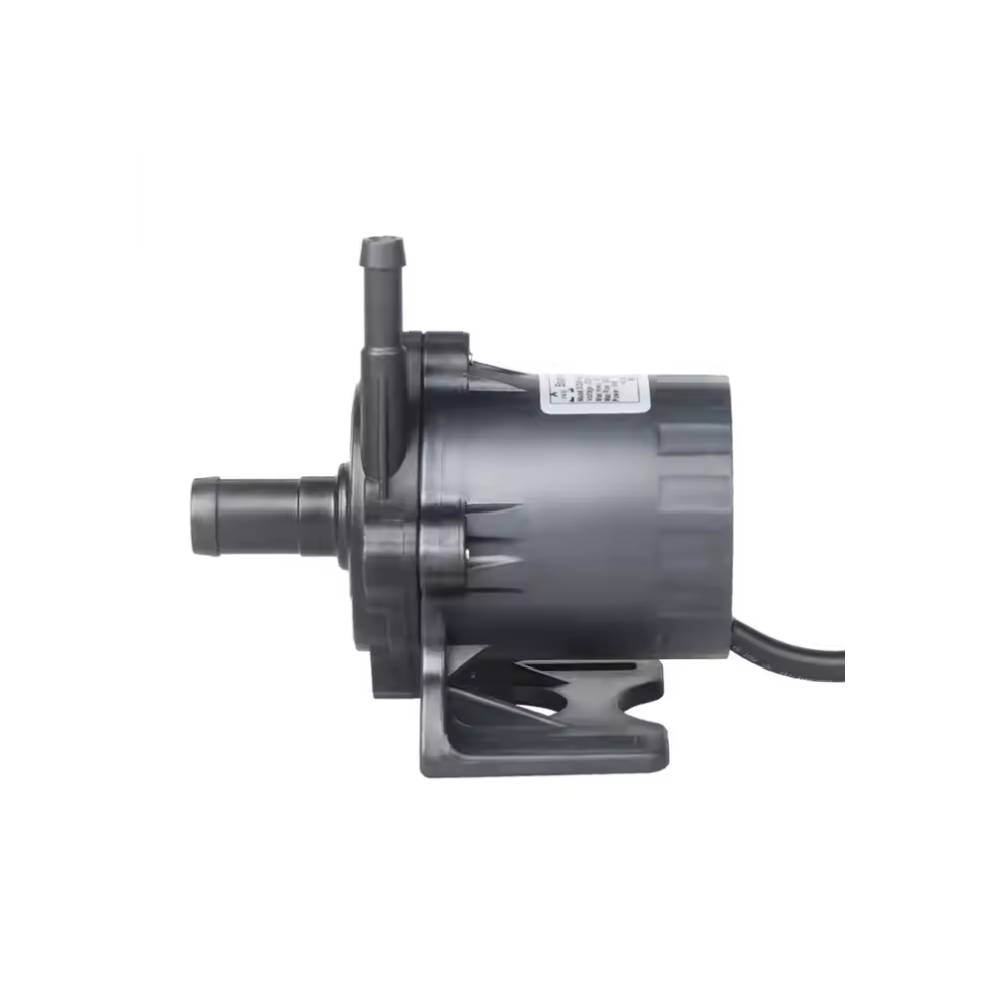

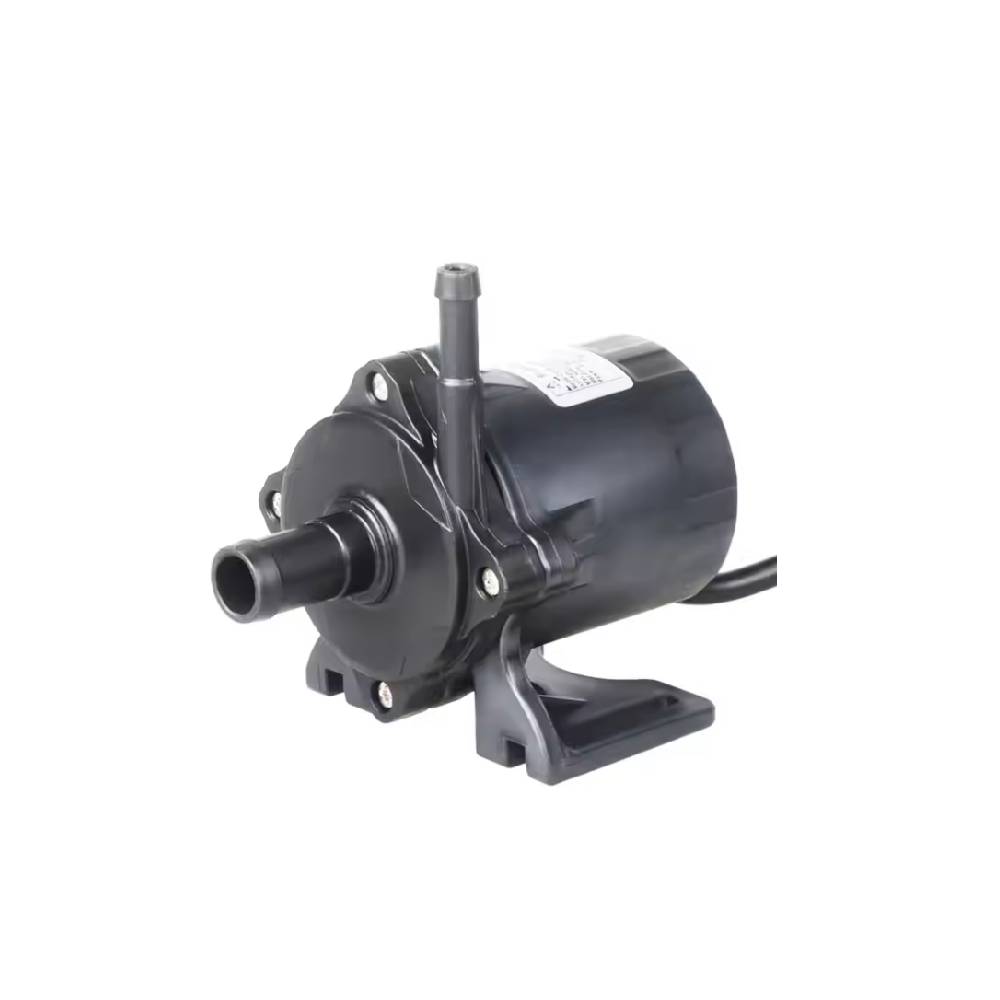

ZKSJ DC50H High Pressure Brushless DC Pump 600L/H 20M Head Compact Size IP68 Waterproof

$57.99

~~$49.90~~ $57.99

Sale Sold out

Shipping calculated at checkout.

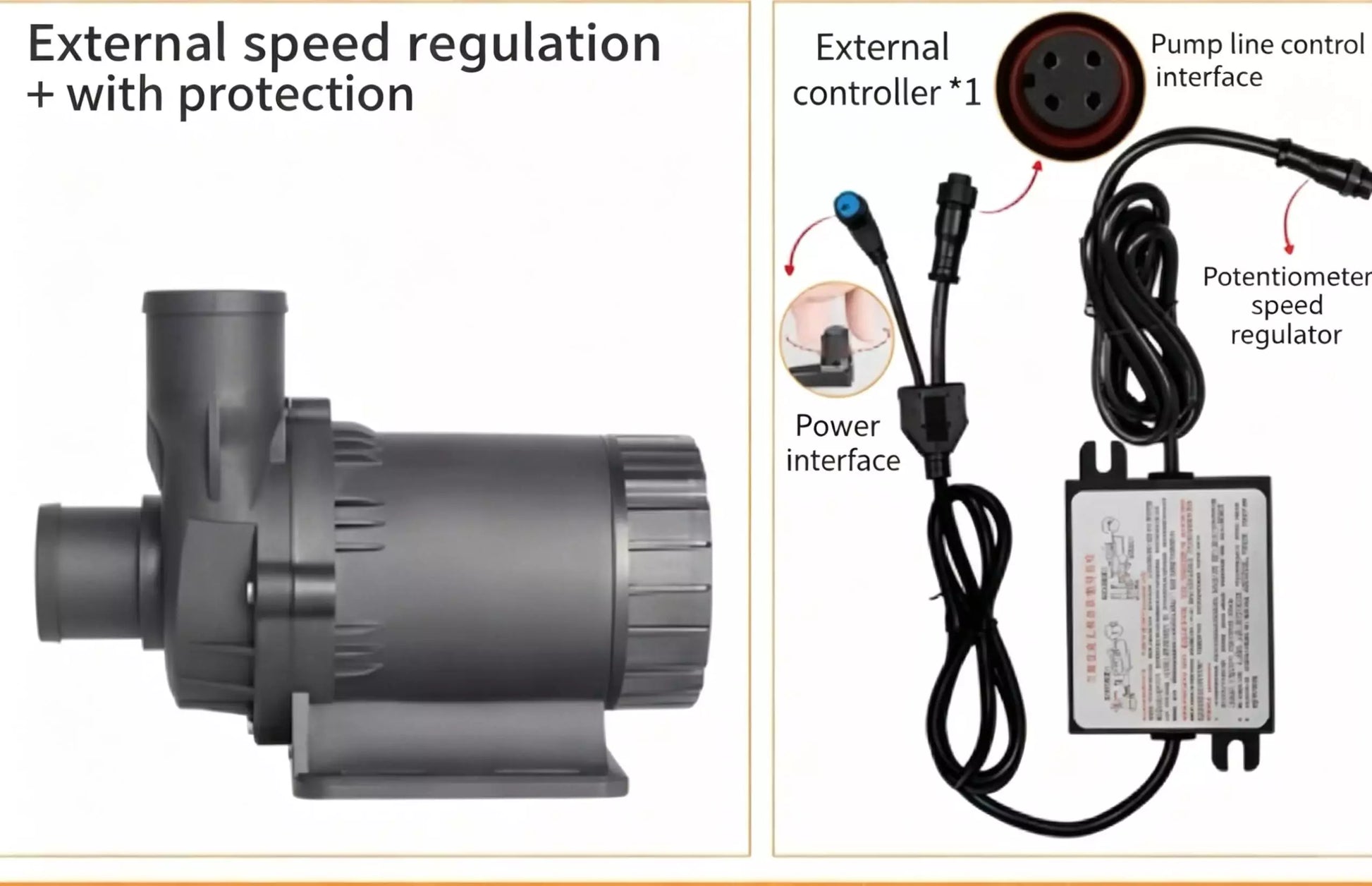

Model DC50H-24200A Adjustable Speed Bare Pump (No Power Supply) DC50H-24200S Fixed Speed Bare Pump (No Power Supply) DC50H-24200A Adjustable Speed Bare Pump (With Power Supply) DC50H-24200S Fixed Speed Bare Pump (With Power Supply)

Quantity

Home Booster · Solar System · Pressure Cleaning – 7mm Outlet/14mm Inlet, S/A Speed Options

Key Features

#	Icon	Feature	Benefit
1	⚡	Brushless DC Motor	Magnetic drive, high efficiency, maintenance-free
2	📏	Compact & High Pressure	97.5×69.6×95.5mm, 220g – 20M head
3	💰	Low Consumption	55-80W, energy saving
4	⏱️	Long Lifespan	>30,000 hours continuous
5	🛡️	Safe & Explosion-Proof	No spark, low voltage safety
6	🔇	Low Noise	Advanced motor design, quiet operation

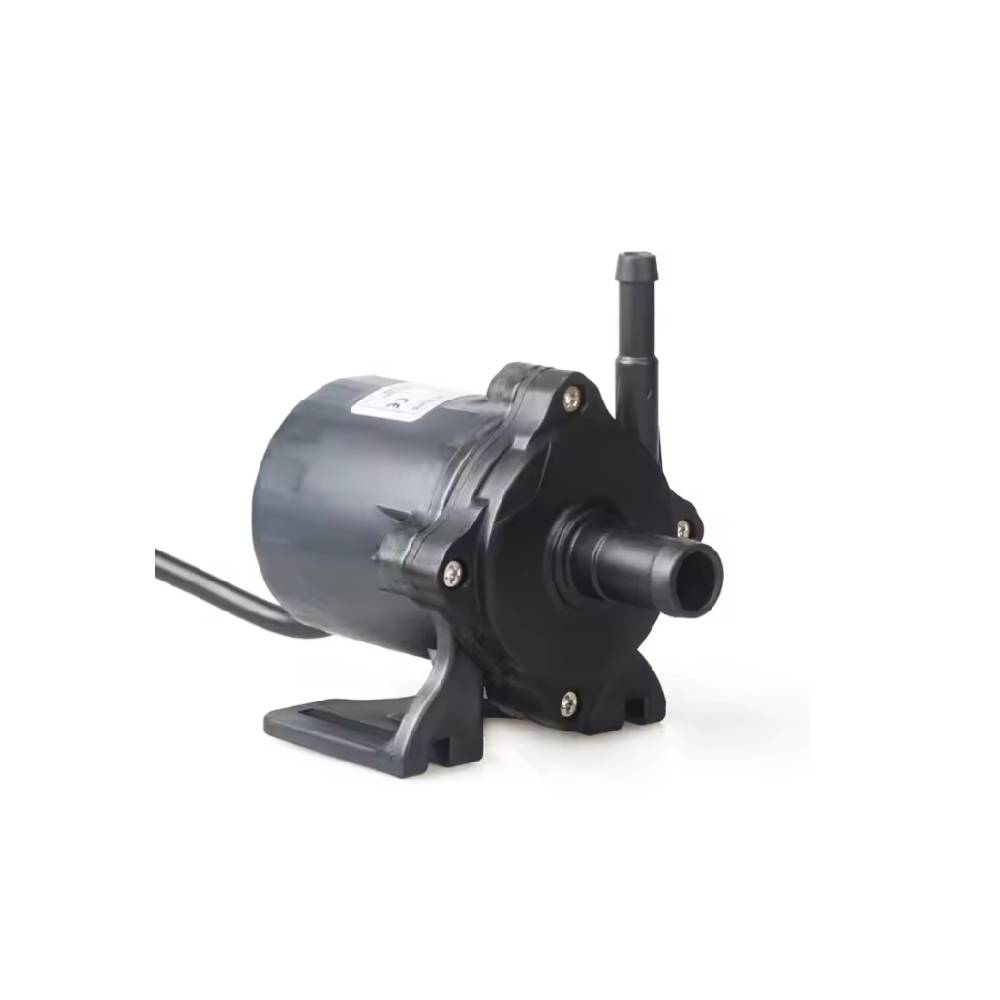

7	💧	100% Waterproof	IP68 fully submersible
8	🔧	Maintenance-Free	Install and forget
9	☀️	Wide Voltage	12V/24V optional
10	🧪	Corrosion Resistant	Handles water, oil, acid, alkali

Product Specifications

Parameter	DC50H-12150S/A	DC50H-24200S/A
Current / Voltage	4.5A / 12V	3.6A / 24V
Max Flow	600L/H	600L/H
Max Head	15M	20M
Operating Temp	≤60°C	≤60°C
Outlet Diameter	7mm	7mm
Inlet Diameter	14mm	14mm

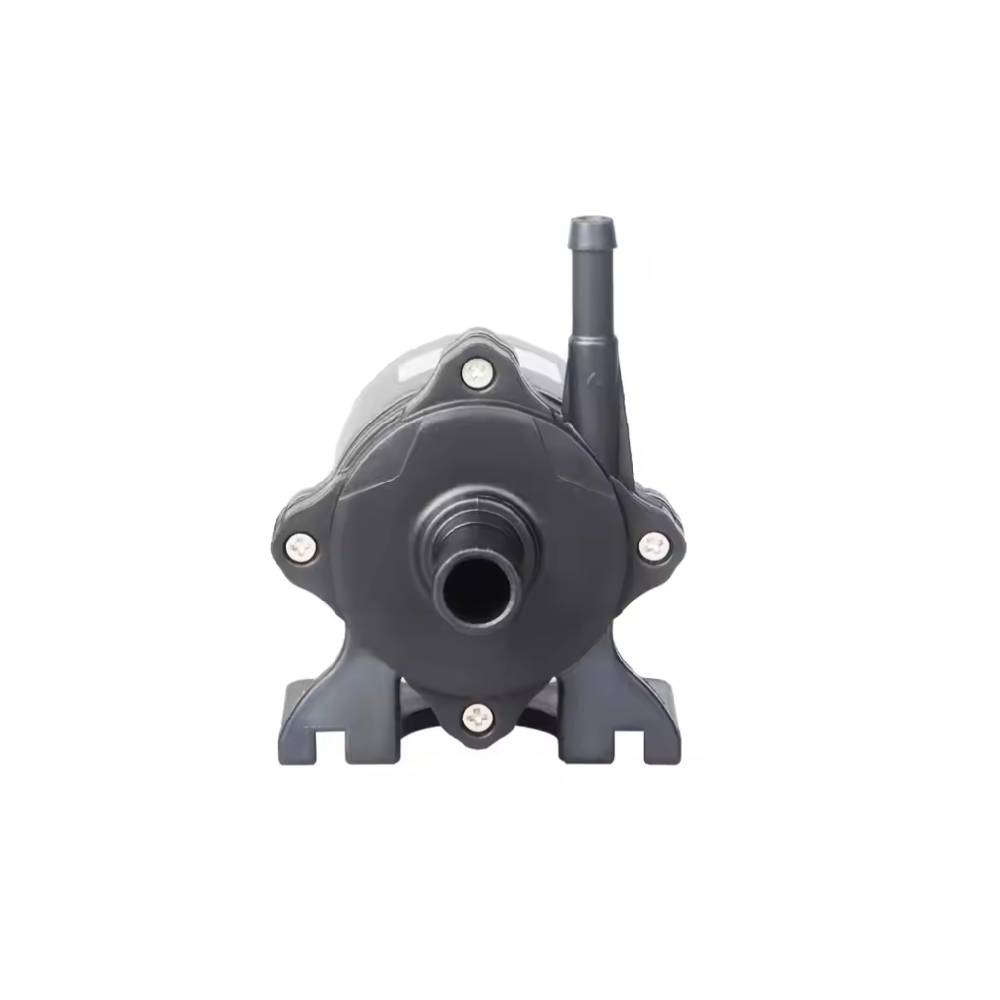

Drive Method	Brushless Magnetic Drive	Brushless Magnetic Drive
Working Life	>30,000 hours	>30,000 hours
Power Consumption	55W	80W
Waterproof Rating	IP68	IP68
Weight	220g	220g

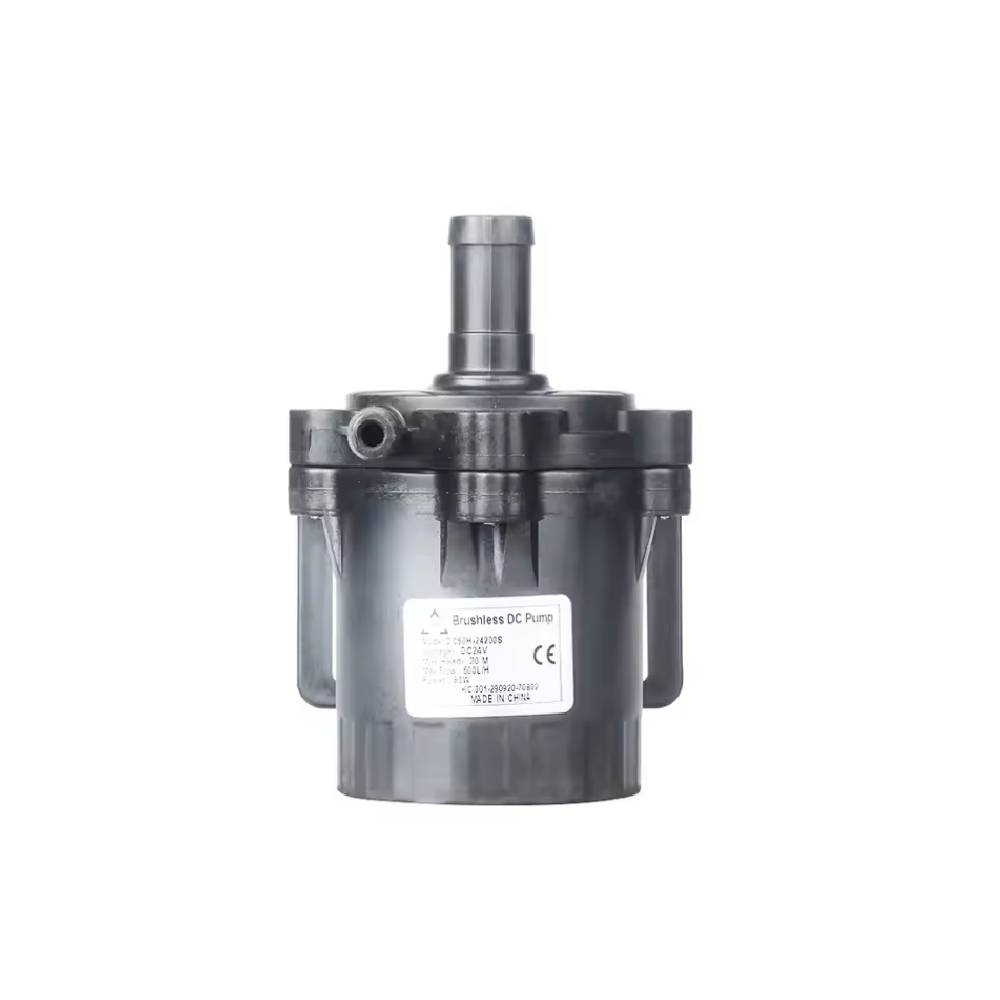

Dimensions	97.5×69.6×95.5mm	97.5×69.6×95.5mm

Flow Rate Conversion

Unit	Value
Liters/hour	600 L/H
Liters/minute	10 L/min
Gallons/hour	≈ 158 GPH

Suffix Explanation

Suffix	Meaning	Description

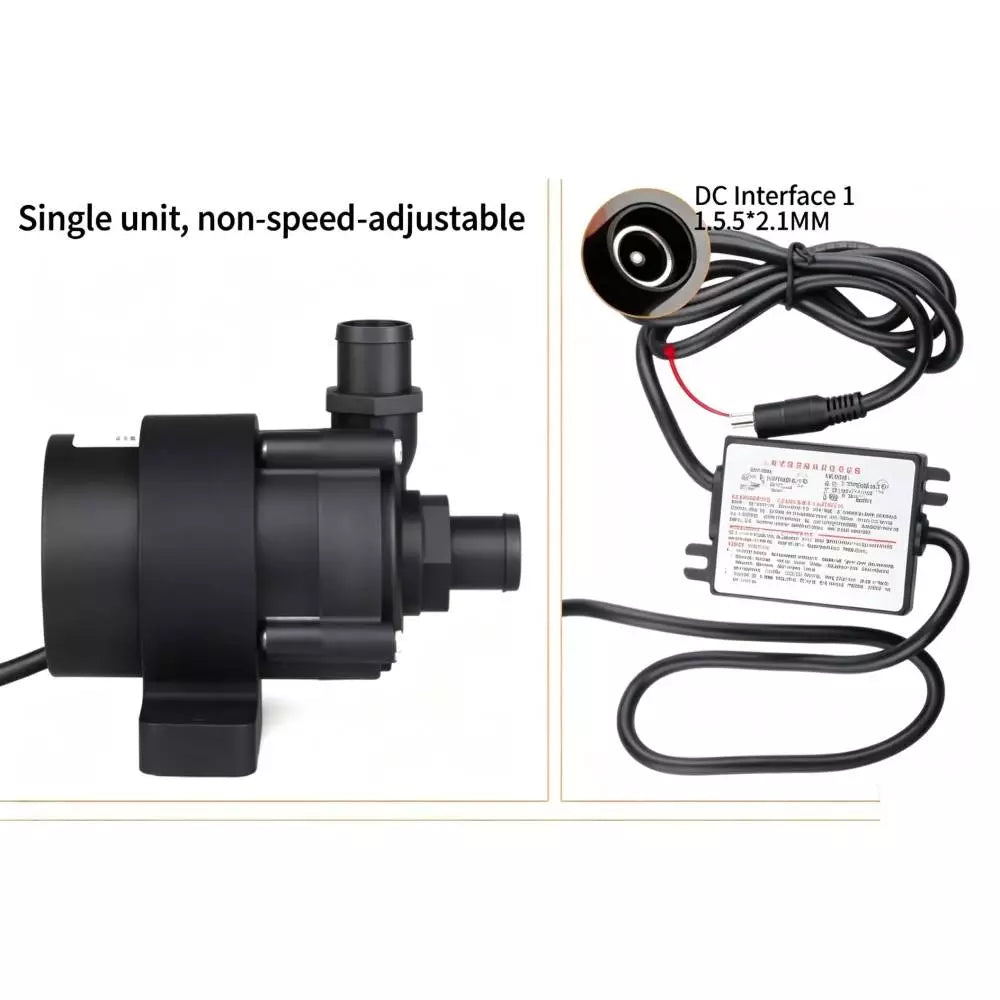

S	Fixed Speed	Runs at max speed, non-adjustable
A	Adjustable	Supports flow/speed adjustment

Two Head Comparison

Model	Max Head	Power	Best For
DC50H-12150S/A	15M	55W	General high pressure, solar circulation
DC50H-24200S/A	20M	80W	High lift, floor supply, pressure cleaning

Applications

Icon	Application	Recommended Model
🏠	Home Booster	DC50H-24200
☀️	Solar System	DC50H-12150 / 24200
🐟	Aquarium	DC50H-24200
⛲	Small Fountain	DC50H-12150
🌱	Irrigation	DC50H-24200
🏭	Industrial	DC50H-24200

Selection Guide

Need	Recommended Model	Description
12V system (vehicle, solar)	DC50H-12150S/A	15M head, 600L/H, 55W
24V system (industrial, solar)	DC50H-24200S/A	20M head, 600L/H, 80W
Need speed control	Choose A suffix	Adjustable flow
No speed control needed	Choose S suffix	Plug & play
High temperature media	External driver	Up to 100°C hot water

Version Options

Version	Description

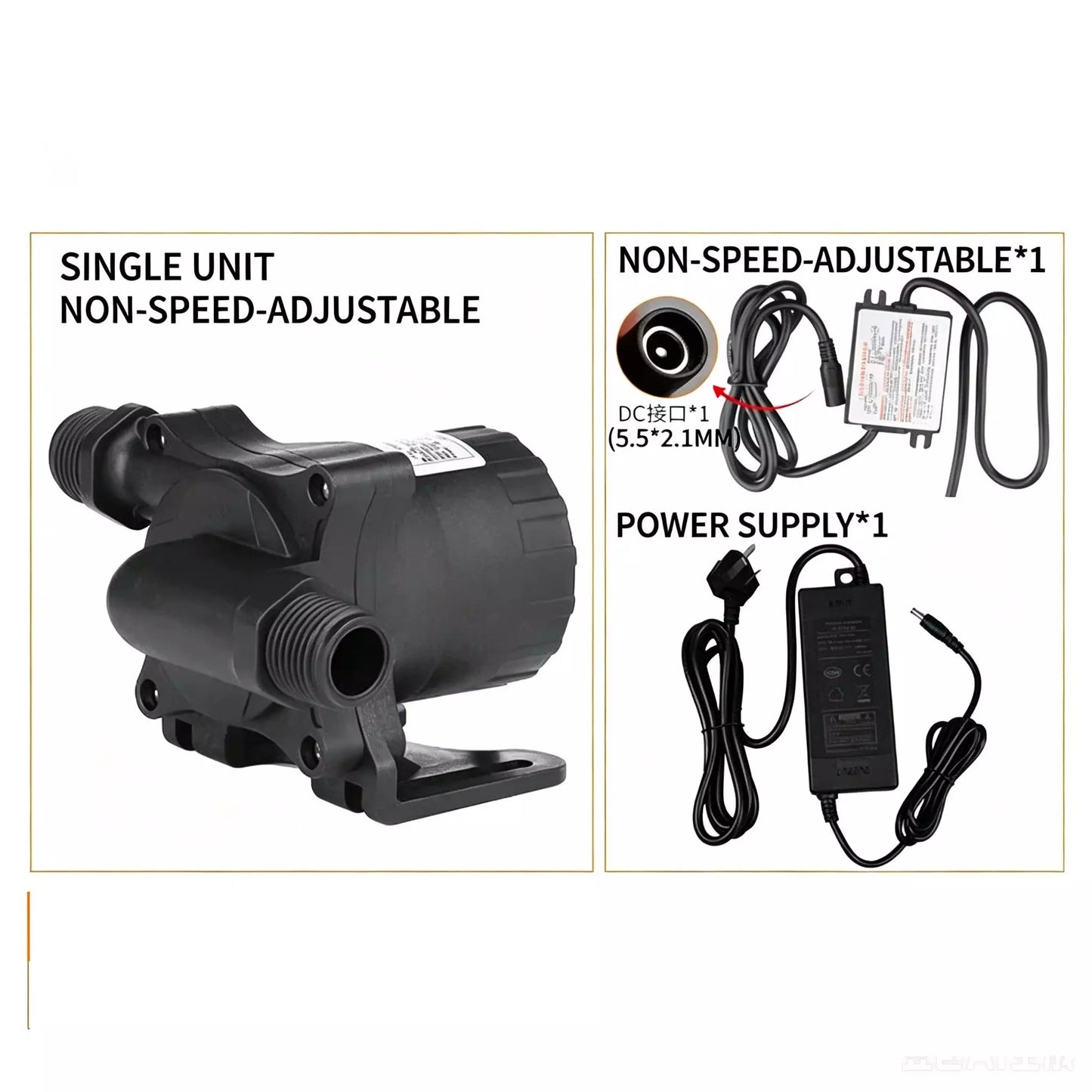

🔧 S Version (Fixed Speed)	Runs at max speed – plug & play

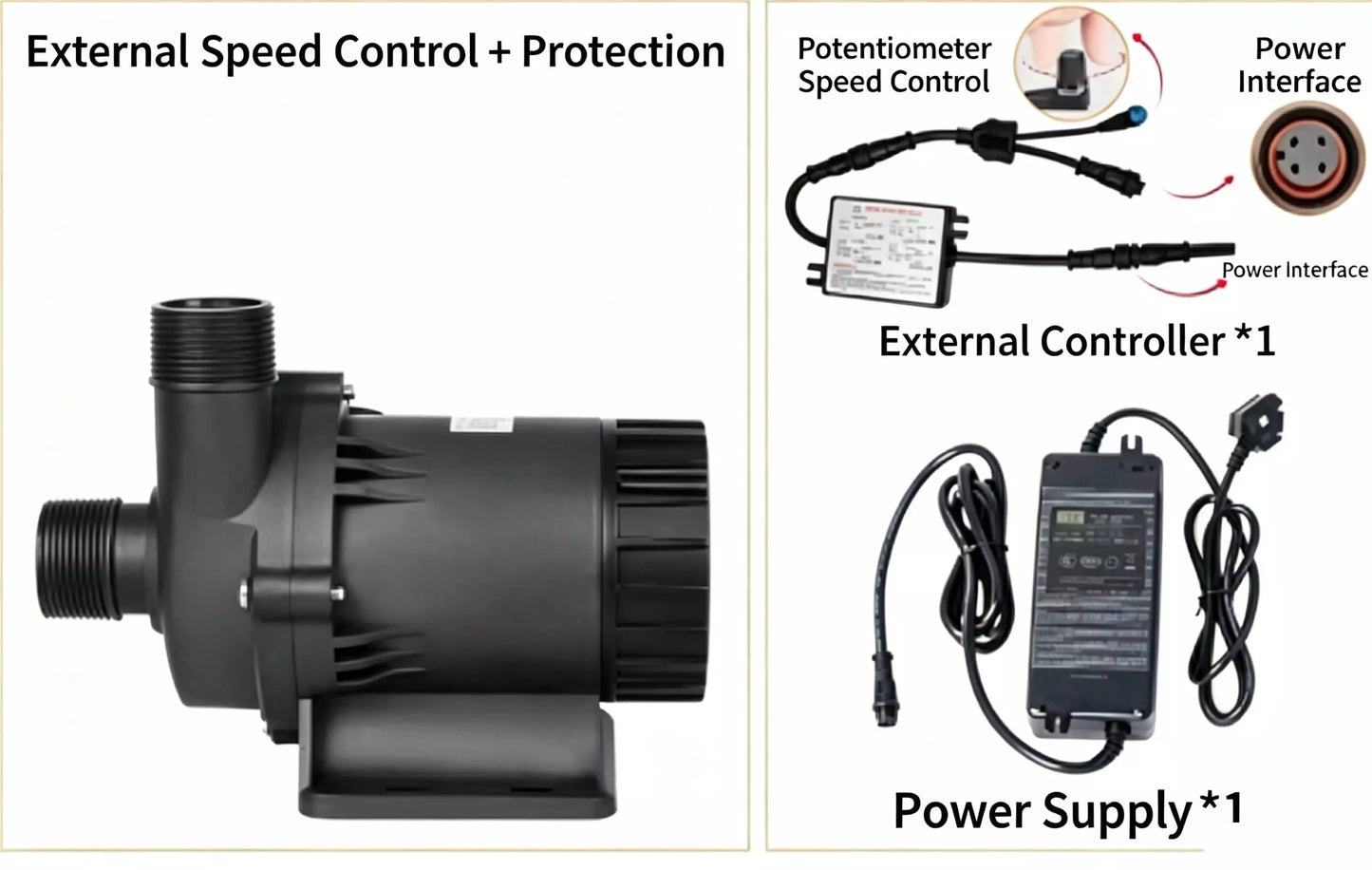

🔧 A Version (Adjustable)	Supports flow adjustment – flexible control
🔌 With Power Supply	Plug & play – no separate adapter needed
🛡️ With Protection	Dry-run & lock protection

💡 Above are some specifications. Different versions available. Please feel free to contact us!

❓ FAQ – Frequently Asked Questions

Question	Answer
What's the difference between S and A models?	S is fixed speed (runs at max speed). A is adjustable speed (flow controllable).
What is the maximum head?	DC50H-24200 delivers up to 20M head.
Is it noisy?	No. Brushless DC motor – ultra quiet operation.
What voltage options are available?	12V and 24V models available.
Can it pump hot water?	Internal driver ≤60°C / External driver ≤100°C.
Can I use it in saltwater?	Yes. PPS+30%GF housing is corrosion resistant – safe for marine environments.
What are the port sizes?	Outlet 7mm, Inlet 14mm – ensure proper fittings during installation.
Do you offer customization?	Yes! OEM/ODM services available – contact us for details.
