ZKSJ DC55JE High Pressure Pump – 2000L/H, 32M Head, PWM Speed Control
ZKSJ DC55JE High Pressure Pump – 2000L/H, 32M Head, PWM Speed Control
Preț obișnuit
$86.90
Preț obișnuit
Preț redus
$86.90
Preț unitar
pe
Taxele de expediere sunt calculate la finalizarea comenzii.
Nu am putut încărca disponibilitatea pentru ridicare

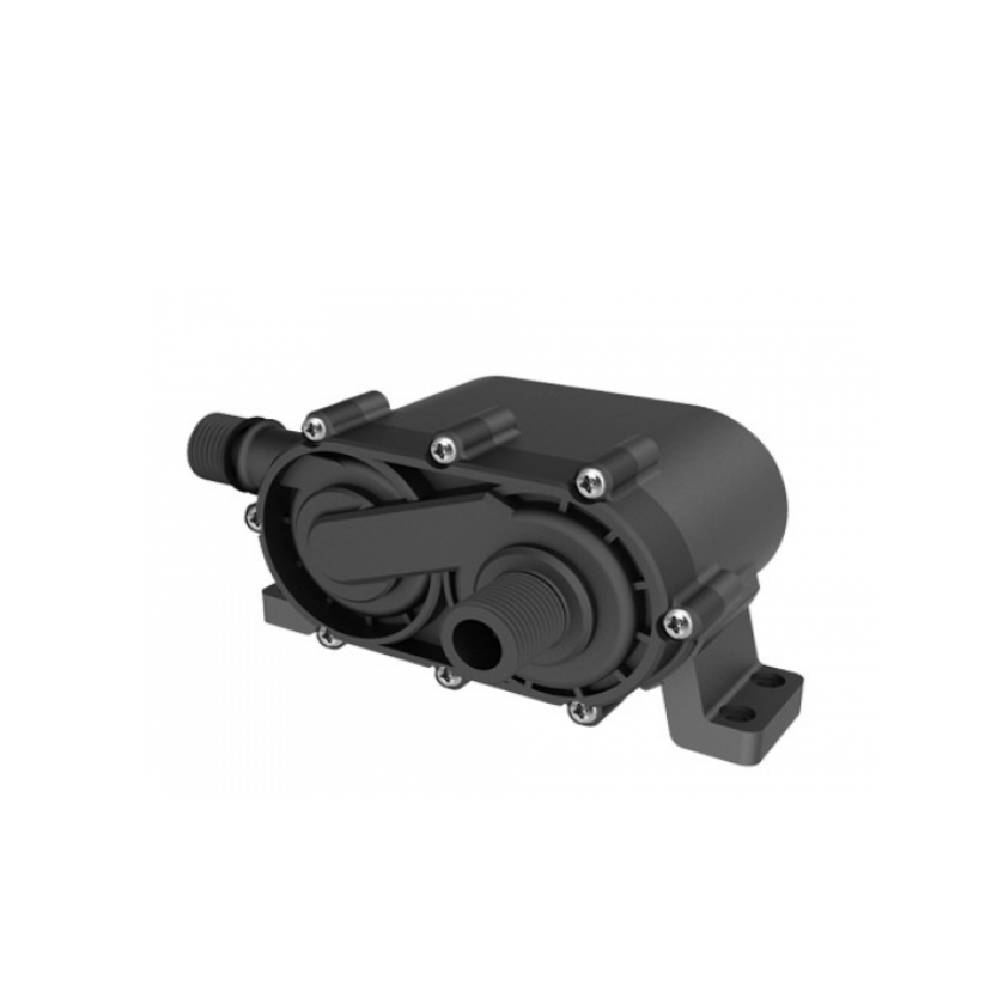

ZKSJ DC55JE High Pressure Brushless Centrifugal Pump | 2000L/H | 32M Head | PPS+30%GF | IP68 Waterproof 32M Ultra High Head · 2000L/H Flow · 12V/24V Optional – PPS+30%GF Corrosion Resistant, Industrial Grade
Product Overview

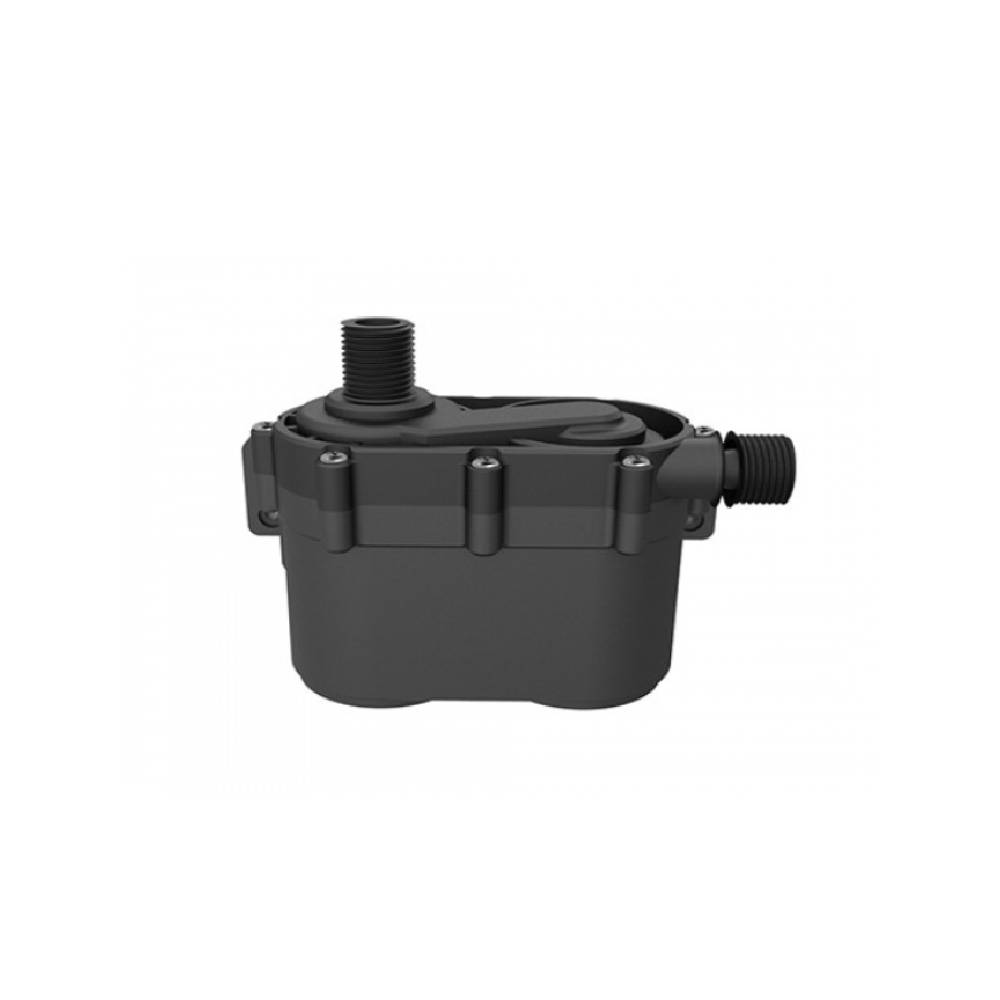

The ZKSJ DC55JE is a high pressure brushless centrifugal pump featuring 32M ultra high head and 2000L/H flow rate, with PPS+30%GF corrosion resistant housing, IP68 waterproof, and ≥30,000 hours lifespan. Available in 12V/24V dual voltage options, supports PWM/0-5V/potentiometer speed control (optional), with liquid temperature range -30°C to 100°C. Widely used in industrial circulation systems, high temperature liquid transfer, solar systems, and more.
Key Features
| # | Icon | Feature | Benefit |
|---|---|---|---|
| 1 | 📏 | 32M Ultra High Head | Meets high pressure transfer requirements |
| 2 | 💧 | 2000L/H High Flow | Efficient circulation for various applications |
| 3 | ⚡ | Brushless DC Motor | Magnetic drive, high efficiency, maintenance-free |
| 4 | 🧪 | PPS+30%GF Housing | Corrosion resistant, high temperature resistant |
| 5 | 🔥 | -30°C~100°C Range | Suitable for extreme environments |
| 6 | 💧 | IP68 Waterproof | Fully submersible or land use |
| 7 | 🛡️ | Multi-Protection | Jam/dry-run/overload/reverse protection |
| 8 | ⏱️ | ≥30,000 Hours Life | Continuous operation – durable and reliable |
| 9 | 🔧 | Maintenance-Free | Install and forget |
| 10 | ☀️ | Wide Voltage Range | 12V/24V optional |
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ZKSJ DC55JE Brushless DC Pump |
| Model | DC55JE |
| Inlet/Outlet Diameter | 20mm / 20mm |
| Static Head | 24~32M |
| Input Power | 100~150W |
| Max Flow | 1800~2000L/H |
| Rated Voltage | 12V / 24V |
| Operating Voltage | 5~30V |
| Rated Current | 6.3~8.3A |
| Dimensions | 112×162×77mm |
| Weight | 1.25kg |
| Housing Material | PPS+30%GF |
| Drive Method | Brushless, Magnetic Isolation |
| Waterproof Rating | IP68 |
| Warranty | 1 Year |
Model Specifications
| Model | Voltage | Current | Max Head | Max Flow | Power |
|---|---|---|---|---|---|
| DC55JE-12240 | 12V | 8.3A | 24M | 1800L/H | 100W |
| DC55JE-24320 | 24V | 6.3A | 32M | 2000L/H | 150W |
Speed Control Suffix (Optional)
| Suffix | Meaning | Description |
|---|---|---|
| PWM | PWM Speed Control | 50~800HZ/5V PWM signal control |
| VR | 0-5V/Potentiometer | 0-5V analog or potentiometer control |
| S | Fixed Speed | Runs at max speed, non-adjustable |
Media & Environment
| Item | Specification |
|---|---|
| Liquid Type | Oil, water, and other liquids |
| Liquid Temperature | -30°C ~ 100°C |

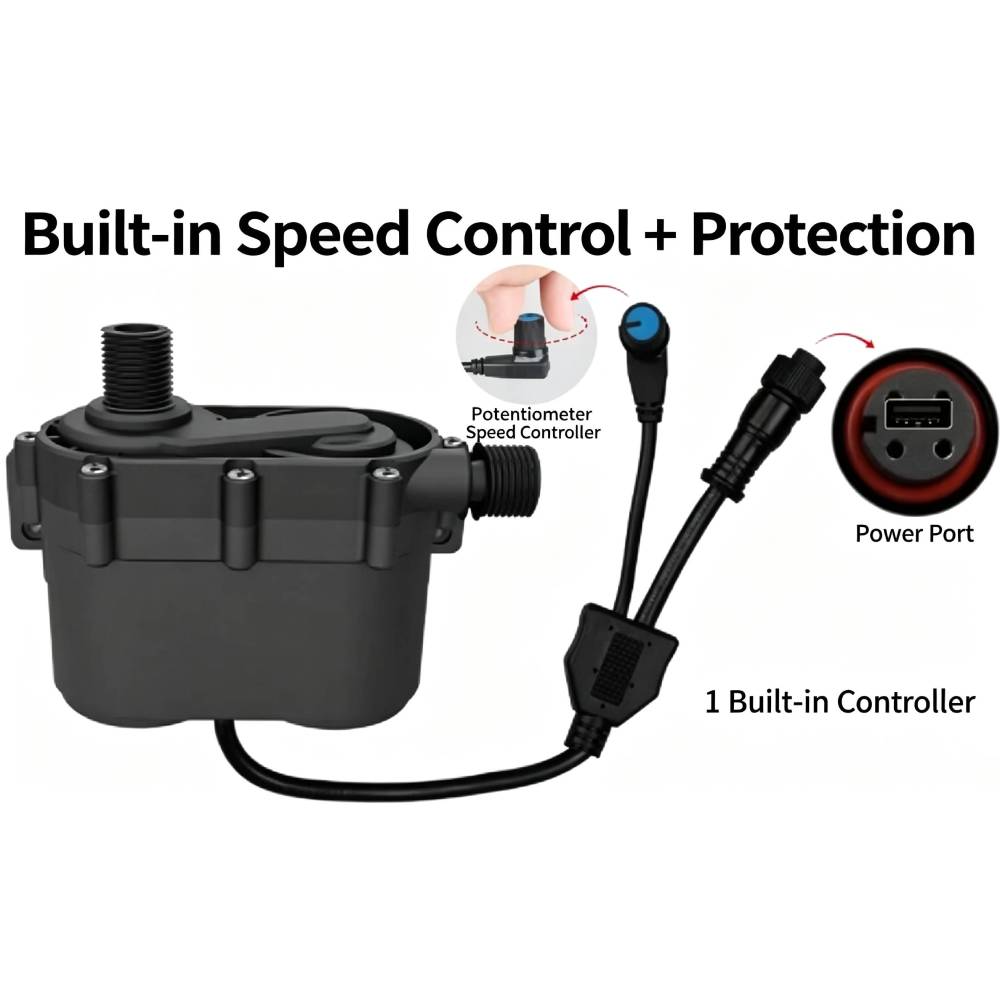

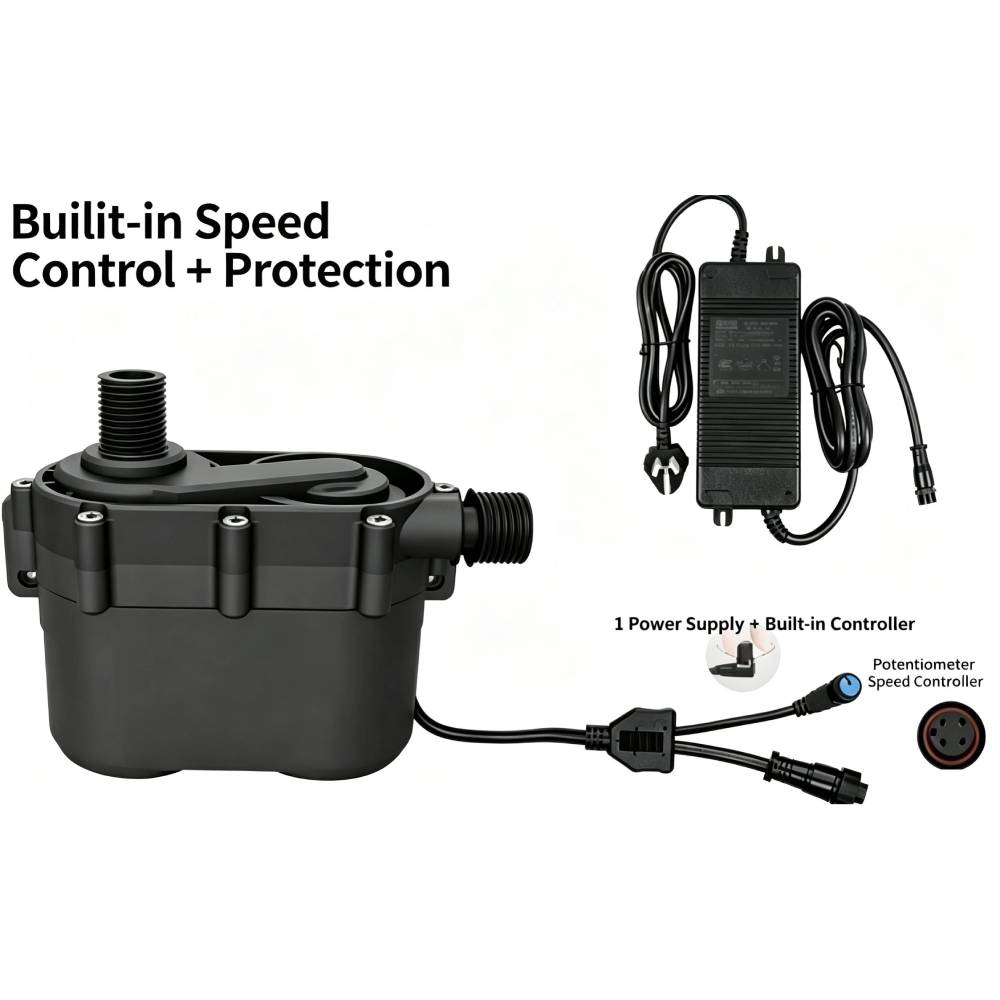

| Built-in Driver | For external (non-submersible) use |

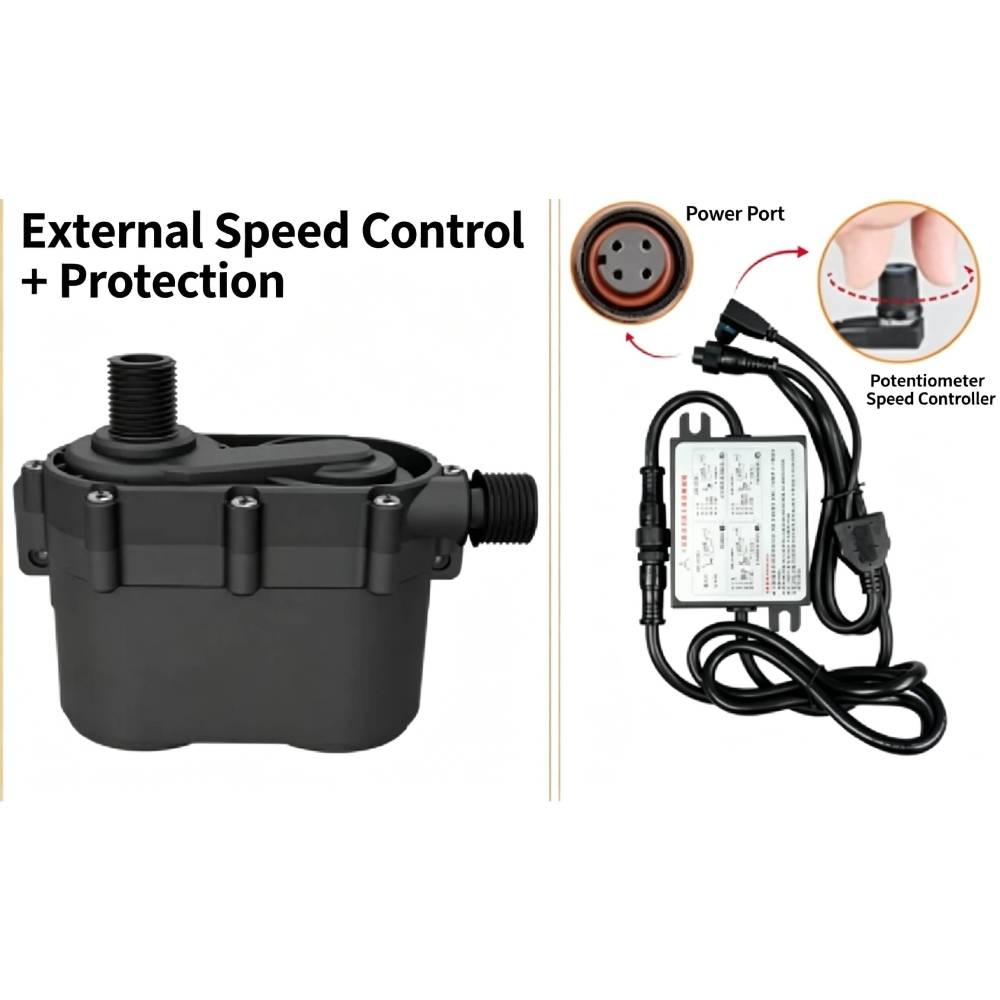

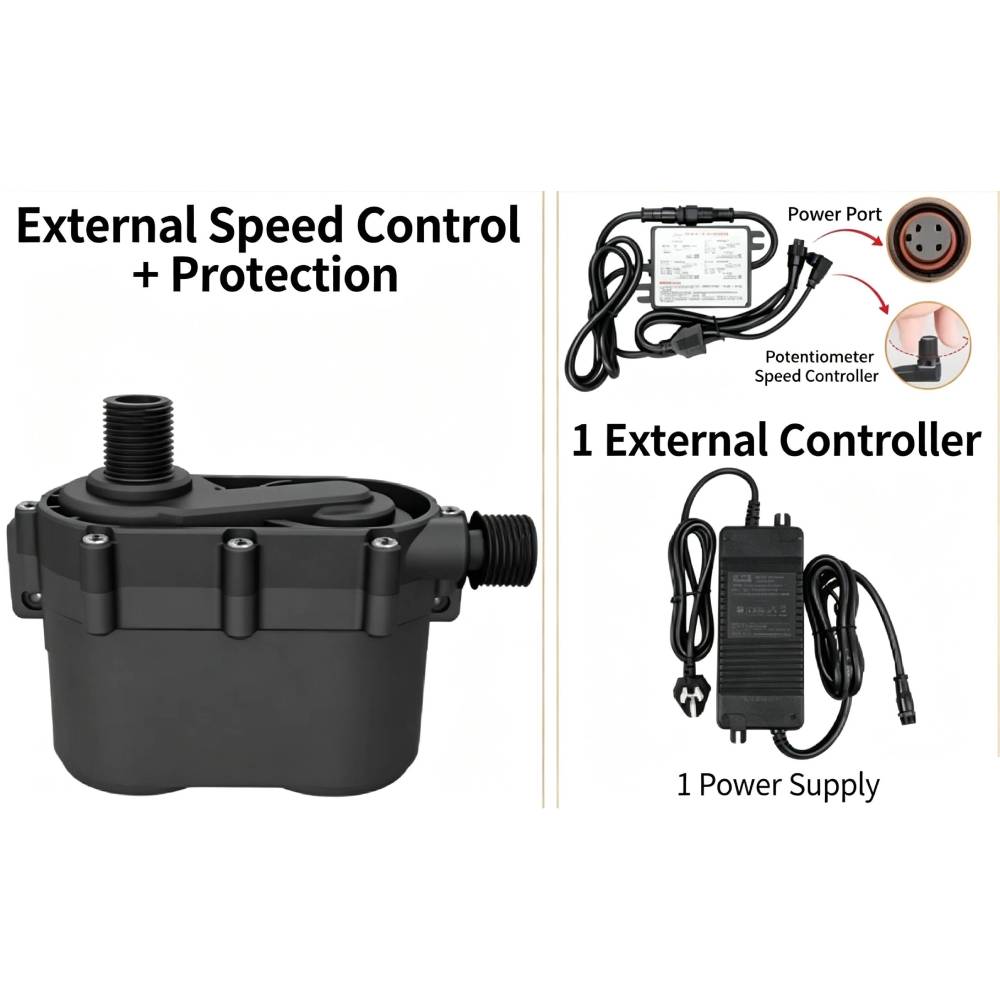

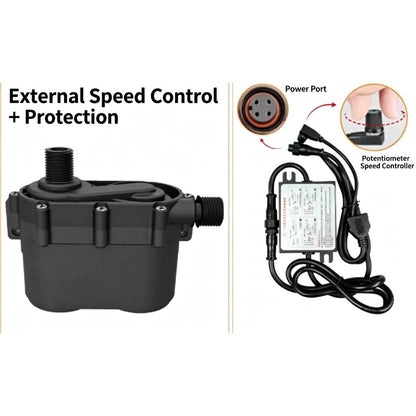

| External Driver | For high temp/corrosive liquid submersible & external use |
| Power Supply | DC power supply, solar panel, battery |
Protection Functions
| Function | Description |
|---|---|
| 🛑 Jam Protection | Auto-stops when rotor is jammed |
| 💧 Dry-Run Protection | Auto-cycles stop(8S)/run(2S) to protect itself (customizable) |
| ⚡ Overload Protection | Auto-stops when voltage is unstable or exceeds rated power |
| 🔄 Reverse Connection Protection | Safe – resumes normal operation after correction |
Selection Guide
| Need | Recommended Model | Description |
|---|---|---|
| 12V system, 24M head | DC55JE-12240 | 1800L/H, 100W |
| 24V system, 32M head | DC55JE-24320 | 2000L/H, 150W |
| PWM speed control | Choose PWM suffix | 50~800HZ/5V signal |
| Potentiometer control | Choose VR suffix | 0-5V or potentiometer |
| No speed control | Choose S suffix | Fixed speed, plug & play |
| High temp/corrosive media | Choose External Driver | Up to 100°C, submersible |
Applications
| Category | Applications |
|---|---|
| 🏭 Industrial Circulation | Equipment cooling, liquid circulation |
| 🔥 High Temp Liquid Transfer | -30°C~100°C wide temperature range |
| ☀️ Solar Systems | Solar circulation heating |
| 🧪 Chemical/Laboratory | Corrosive liquid transfer |
| 🐟 Aquarium/Ponds | High flow, high head circulation |
| 🚗 Automotive | Cooling circulation systems |
❓ FAQ – Frequently Asked Questions
| Question | Answer |
|---|---|
| 24M vs 32M head – which to choose? | 12V model offers 24M head; 24V model offers 32M head. Choose based on your power system. |
| Can it pump hot water? | Yes. Liquid temperature range -30°C~100°C. |
| What's the advantage of PPS+30%GF? | Acid/alkali resistant, high temperature resistant, corrosion resistant. |
| Does it have protection features? | Yes. Jam protection, dry-run protection, overload protection, reverse protection. |
| Is speed control available? | Optional – PWM, 0-5V, or potentiometer speed control (standard models do not include speed control). |
| Do you offer customization? | Yes! OEM/ODM services available – parameters customizable. Contact us! |
