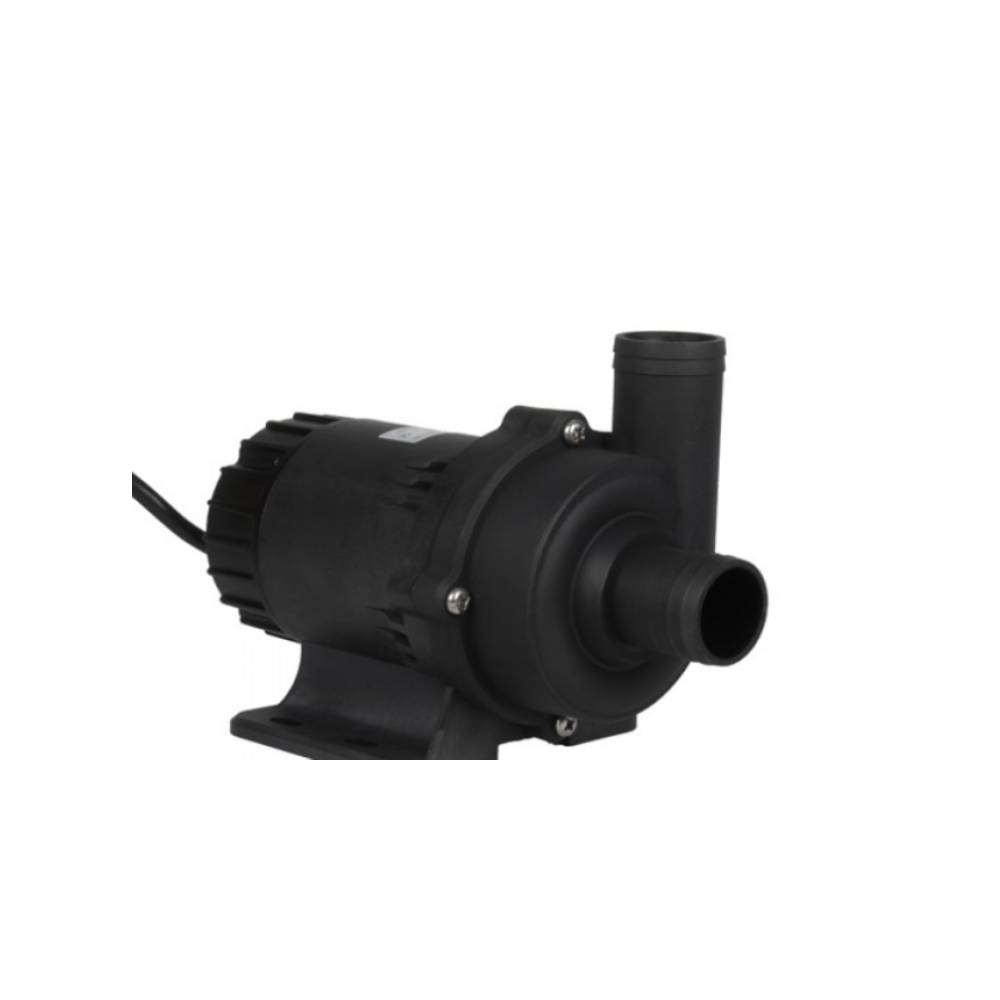

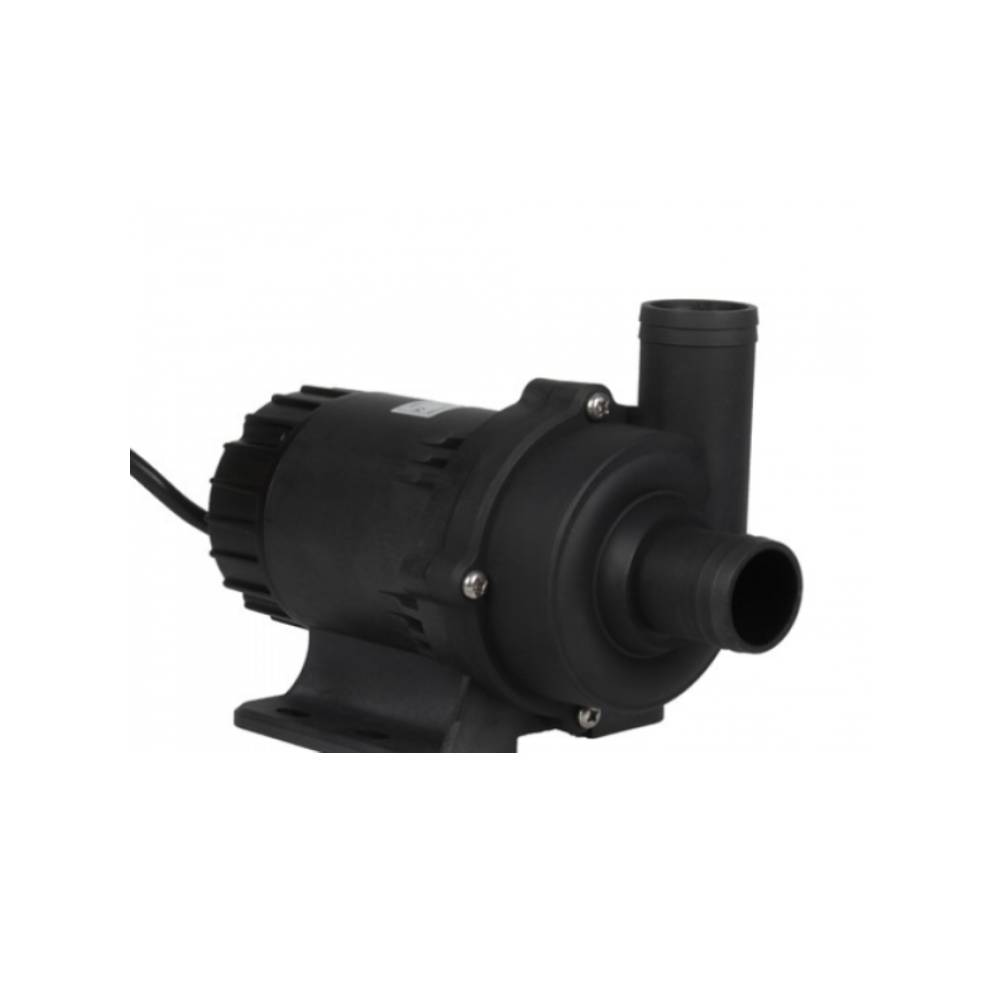

ZKSJ water pump DC85D 13500L/H cooling circulation water pump

$175.00

Sale Ausverkauft

Versand wird beim Checkout berechnet

SKU DC85D external (with protection) DC85D external (with protection) + power supply DC85D external (with protection) + speed regulation DC85D external (with protection) + power supply + speed regulation DC85TIM (for musical fountain use) DC85TIM-DMX (for musical fountain use)

Anzahl

Key Features

#	Icon	Feature	Benefit
1	⚡	Brushless DC Motor (EC Motor)	Magnetic isolation, high efficiency, maintenance-free
2	💧	Ultra High Flow	Up to 13500L/H for large systems
3	📏	38mm Large Ports	Smooth, unrestricted water flow
4	🔇	Ultra Quiet	≤35dB noise – quieter than a library
5	🧪	Corrosion Resistant	PPS+30%GF housing – acid & alkali resistant
6	💧	100% Waterproof	IP68 fully submersible
7	💰	Low Power Consumption	85-200W – energy saving at high flow
8	⏱️	Durable & Reliable	1-year warranty, long life design
9	☀️	Wide Voltage Range	12V/24V/36V – multiple power options

Product Parameters

Parameter	Specification
Inlet/Outlet Diameter	38mm / 38mm
Static Head	5~10M
Input Power	85~200W
Max Flow	10000~13500L/H
Rated Voltage	12V / 24V / 36V
Operating Voltage	6~40V
Rated Current	5.5~8.3A
Dimensions	220×129×162mm
Weight	3.2kg
Housing Material	PPS+30%GF
Drive Method	Brushless, Magnetic Isolation
Waterproof Rating	IP68
Noise Level	≤35dB

Model Specifications

Model	Voltage	Current	Max Head	Max Flow	Power
DC85D-1250	12V	8.3A	5M	10000L/H	85W
DC85D-2480	24V	6.3A	8M	12000L/H	150W
DC85D-24100	24V	8.3A	10M	13500L/H	200W
DC85D-36100	36V	5.5A	10M	13500L/H	200W

Flow Rate Conversion

Model	L/H	L/min	m³/h	GPH
DC85D-1250	10,000 L/H	167 L/min	10 m³/h	≈ 2,642 GPH
DC85D-2480	12,000 L/H	200 L/min	12 m³/h	≈ 3,170 GPH
DC85D-24100	13,500 L/H	225 L/min	13.5 m³/h	≈ 3,566 GPH
DC85D-36100	13,500 L/H	225 L/min	13.5 m³/h	≈ 3,566 GPH

Selection Guide

Need	Recommended Model	Description
12V system (vehicle, mobile)	DC85D-1250	5M head, 10000L/H, 85W
24V medium flow	DC85D-2480	8M head, 12000L/H, 150W
24V high flow & head	DC85D-24100	10M head, 13500L/H, 200W
36V system (solar, industrial)	DC85D-36100	10M head, 13500L/H, 200W

Applications

Icon	Application	Recommended Model
🏭	Industrial Cooling Circulation	DC85D-24100 / 36100
🐟	Large Aquarium	DC85D-2480 / 24100
⛲	Large Fountain / Water Feature	DC85D-2480 / 24100
🌊	Aquaculture	DC85D-24100 / 36100
☀️	Solar System	DC85D-36100
🏢	HVAC / Central Air Conditioning	DC85D-24100

Installation Instructions

1. Submersible Installation

Fully submerge pump in water

Ensure inlet is not blocked

Ideal for ponds, tanks, aquariums

2. Inline Installation (Non-Self-Priming)

Pump must be below liquid level

Ensure inlet pipe is filled with liquid

Ideal for industrial equipment, cooling systems

3. Large Port Installation

38mm inlet/outlet ports

Use appropriate diameter piping

Ensure good seal

4. Important Notes

Note	Description
⚠️ Never run dry	Prime before operation
⚠️ Media temperature	Internal ≤60°C / External ≤100°C
⚠️ Material compatibility	PPS+30%GF is acid/alkali resistant – confirm for special media

Dimensions

Parameter	Size
Length	220mm
Width	129mm
Height	162mm
Weight	3.2kg
Inlet/Outlet	38mm / 38mm

❓ FAQ – Frequently Asked Questions

Question	Answer
What's the advantage of PPS+30%GF housing?	Acid & alkali resistant, high temperature resistant, corrosion resistant – ideal for chemical and marine use.
Can it pump hot water?	Yes. External driver version handles up to 100°C.
Is it really ≤35dB?	Yes – quieter than a library.
What voltage options are available?	12V, 24V, and 36V optional.
Can I use it in saltwater?	Yes. PPS+30%GF housing is corrosion resistant – safe for marine environments.
Do you offer customization?	Yes! OEM/ODM services available – contact us for details.

Application Scenario

Dimension

How to install
13,500L/H ultra high flow. 38mm large ports. PPS corrosion resistant housing. IP68 waterproof. ≤35dB ultra quiet.
