ZKSJ DC40C 2-phase brushless pump,12V/24V,IP68 submersible circulation

$25.88

Sale Ausverkauft

Versand wird beim Checkout berechnet

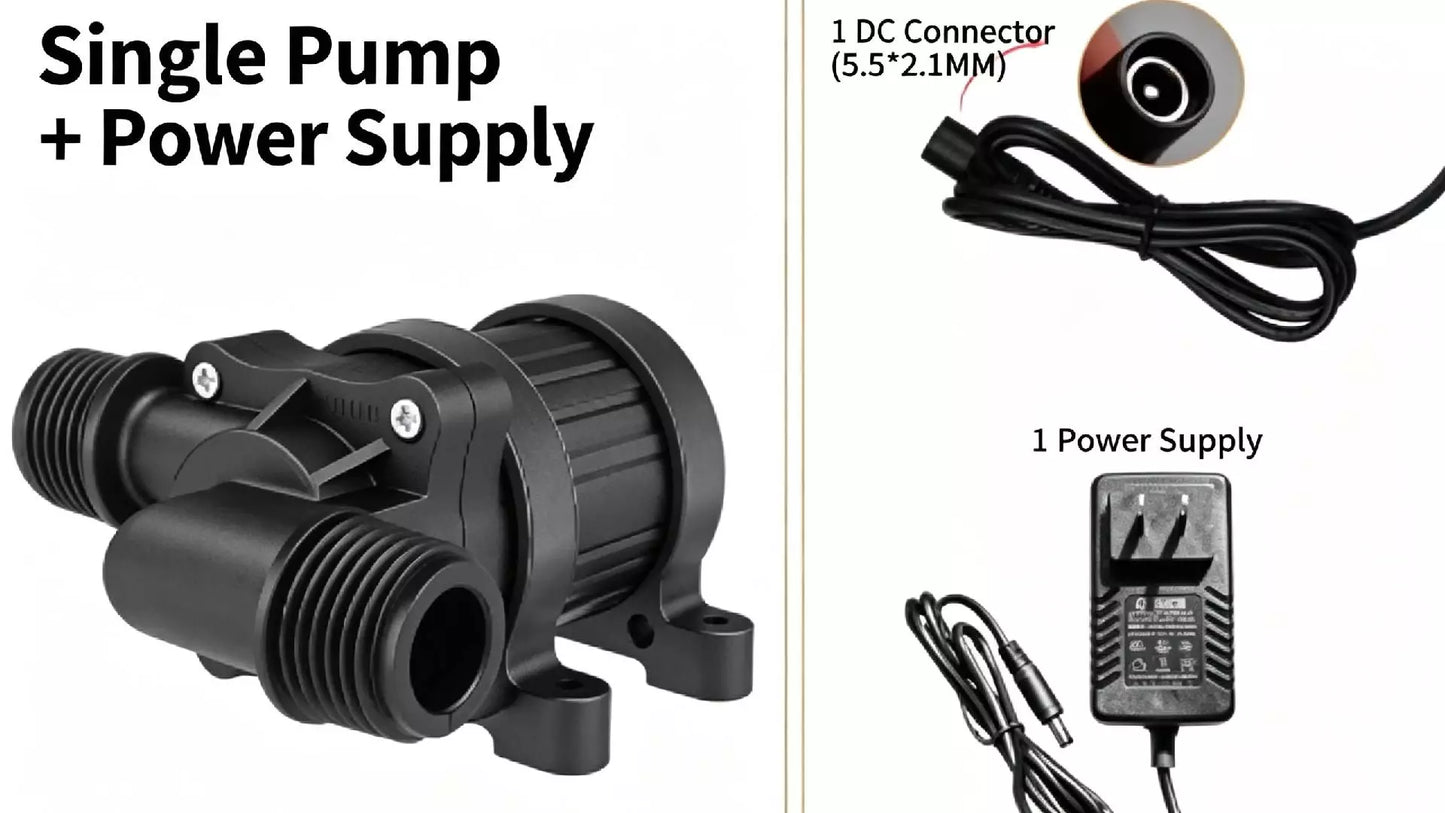

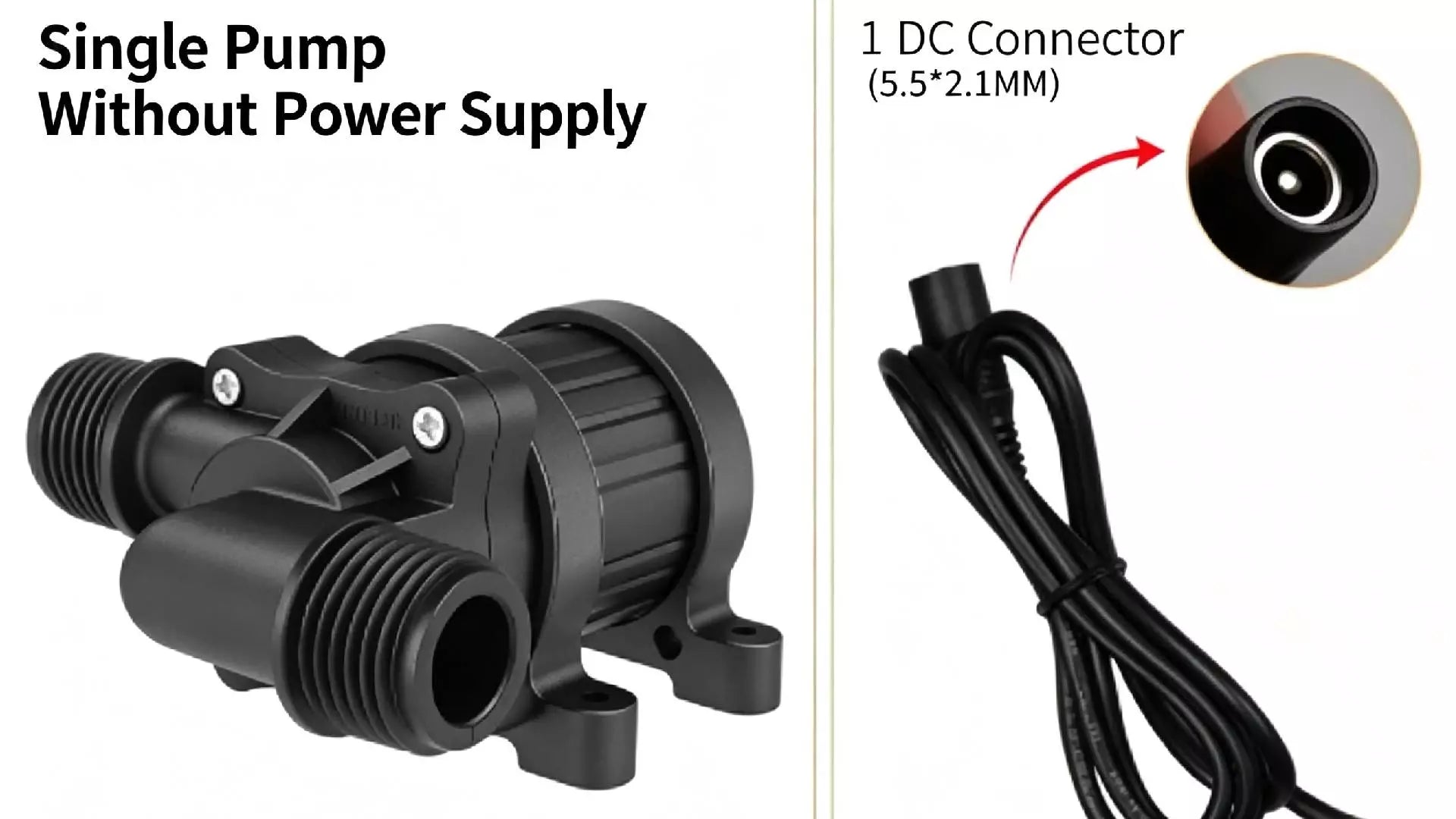

Model & Voltage DC40C-1240 Single Pump 12V No Power Supply DC40C-2460 Single Pump 24V No Power Adapter DC40C-1240 Pump Unit + 12V Power Adapter DC40C-2460 Pump Unit + 24V Power Adapter

Anzahl

Product Overview

DC40C Series Two‑phase Brushless DC Circulation Pump – Industrial Grade Corrosion Resistant Submersible DC Pump

The ZKSJ DC40C is a heavy‑duty 2‑phase brushless DC circulation pump adopting magnetic isolation drive, equipped with optional PPO+30%GF corrosion resistant housing and IP68 full waterproof rating, supporting submersible & inline non‑self‑priming continuous operation. Available in 12V / 24V wide voltage versions, it covers max flow 720‑900L/H and max static head 4‑6M, with service life over 30,000 hours and running noise ≤40dB. Optional dry‑run/stall/water shortage protection and 0‑5V analog/potentiometer speed regulation, widely applied to EV auxiliary cooling, industrial liquid circulation, large aquarium, landscape fountain, PC liquid cooling and solar off‑grid projects.

Core Key Features

#	Icon	Feature	Benefit
1	⚡	2 Phase Brushless Magnetic Drive	Brushless design,no wear parts,high energy efficiency,long maintenance‑free continuous operation
2	📏	Sturdy Compact Structure	85.5×81.5×56mm,0.24kg,G1/2" standard thread,easy pipeline matching
3	🔇	≤40dB Stable Low Noise	Controllable operating noise,suitable for equipment room,indoor and semi‑outdoor working scenes
4	💧	IP68 Full Waterproof Grade	Long‑term submersible available for aquaculture/fountains;inline mounting for industrial cooling loops
5	🧪	PPO+30%GF Corrosion Housing	Resist water,oil,weak acid & alkali liquid,stable working at -10℃~60℃
6	🔋	12V/24V Wide Voltage Adaptation	12V:8V‑16V / 24V:12V‑26V,compatible with solar panel,lithium battery,DC adapter and power modules
7	🛡️	Optional Complete Protection	Water shortage,dry‑run,stall & jam protection,avoids pump burnout for unattended long‑time running
8	🎛️	Optional Speed Adjust & Feedback	0‑5V analog/potentiometer speed control + pulse speed feedback,supports automatic equipment linkage

Full Technical Specifications

Item	DC40C‑1240	DC40C‑2460
Rated Voltage	12V DC	24V DC
Working Voltage Range	8V~16V	12V~26V
Rated Current	0.8A(1.3A)±10%	0.8A(1.1A)±10%
Rated Power	9.2W(16W)±10%	19W(25W)±10%
Max Flow Rate	720L/H±10%	900L/H±10%
Max Static Head	4M±7%	6M±7%
Inlet & Outlet Interface	G1/2" Thread	G1/2" Thread
Overall Dimension	85.5×81.5×56mm	85.5×81.5×56mm
Net Weight	0.24kg	0.24kg
Noise Level	≤40dB	≤40dB
Waterproof Grade	IP68 Submersible	IP68 Submersible
Service Life	≥30000 Hours	≥30000 Hours
Optional Speed Mode	0‑5V Analog/Potentiometer+Speed Feedback	0‑5V Analog/Potentiometer+Speed Feedback

General Basic Specs

Pump Housing: Optional PPO+30%GF material

Applicable Medium: Water, oil, normal weak acid & alkaline liquid (customizable for special liquid)

Working Temperature: -10℃ ~ 60℃

Power Supply: Solar panel, storage battery, DC adapter, switching power module

Optional Protection: Water shortage protection, dry‑run protection, stall protection, jam protection

Main Application Scenarios

Icon	Application Scene	Detailed Usage
🐠	Medium & Large Aquarium Circulation	Fish tank whole tank circulation,eliminate dead corners,increase dissolved oxygen and stabilize water quality
⛲	Landscape & Garden Fountain	Large decorative fountain,rockery landscape water cycle,stable long‑term outdoor operation
🚗	EV Auxiliary Cooling System	New energy vehicle electronic components, battery auxiliary cooling circulation loop
💻	Industrial & PC Liquid Cooling	High‑power PC water cooling,small industrial equipment heat dissipation circulating system
☀️	Solar Off‑Grid Engineering	Solar water heating circulation,solar independent power supply water delivery projects
🏭	Laboratory & Industrial Circulation	Weak corrosive reagent transfer,small industrial liquid constant circulation equipment

FAQ

Q1: Can DC40C be used fully underwater?

A: It reaches IP68 waterproof standard,supports long‑term submersible installation for fountain and aquaculture scenes.

Q2: What power sources apply to DC40C two models?

A: DC40C‑1240 adapts 12V lithium battery/solar panel/12V DC adapter;DC40C‑2460 matches 24V power supply,solar system and industrial 24V power modules.
