DC50G Brushless DC Aquarium Return Pump: Specs & Setup Guide

DC50G Brushless DC Aquarium Return Pump: Specs & Setup Guide

If you are shopping for a reliable adjustable DC return pump for your reef sump or large planted aquarium, the DC50G brushless magnetic drive pump is a solid upgrade over noisy traditional AC pumps. Hobbyists often search for dc return pump with pwm control, ip68 submersible dc aquarium pump, quiet dc sump pump, reef tank pump with dry run protection when looking for a durable circulation pump.

What is DC50G Pump?

DC50G is a 3-phase sensorless brushless DC water pump built with magnetic isolated drive design. It adopts ceramic shaft and carbon fiber sleeve for low wear, maintenance-free continuous running for your aquarium system. Two variants are available for different tank needs: DC50G-1260S/A (12V) and DC50G-2480S/A (24V).

DC50G Full Specifications

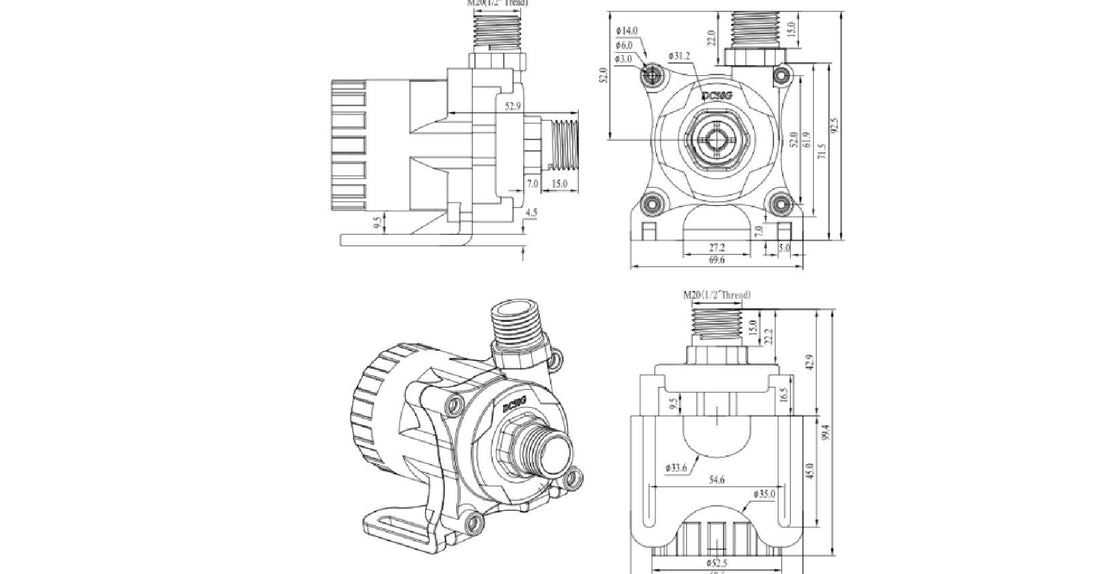

• Dimensions: 99.4mm × 92.5mm × 69.6mm, Weight:480g
• Inlet & Outlet: 1/2" M20 thread, compatible with standard aquarium plumbing
• Waterproof: IP68 fully submersible rating
• Noise: Less than 40dB for near-silent aquarium operation
• Lifespan: Over 30,000 hours continuous run time
• Voltage Options: 12Vdc or 24Vdc
  • DC50G-1260: Max static head 6m, Max flow rate 2100 L/H, Max power 54W
  • DC50G-2480: Max static head 8m, Max flow rate 2400 L/H, Max power 86.4W
• Installation: Submersible or inline land use (Not self-priming)
• Flow Adjustment: PWM signal, 0~5V analog signal or potentiometer speed control
• Safety Features: Dry-run protection, lock protection, over-voltage & over-current protection, soft start
• Shell Material: PA66+30%GF (customizable)

Related long-tail keywords：dc50g 2400lph aquarium pump, brushless dc reef return pump 8m head, adjustable flow dc pump for sump tank

Why Choose DC50G For Reef & Planted Aquariums

1. Ultra quiet performance under 40dB No more loud buzzing from old AC pumps in your living room. The brushless magnetic isolated design reduces vibration and noise, perfect for display reef tanks.
2. Customizable flow with PWM speed control Tweak water circulation precisely. Reduce flow for delicate coral or planted tanks, boost flow for large reef sumps. It supports potentiometer manual adjustment too.
3. Critical safety protection for aquarium systems Dry-run protection automatically protects the pump when water level drops, preventing pump burnout and tank disaster. Soft start avoids current shock for long-term reliability.
4. IP68 waterproof & long service life IP68 rating means it can run fully submerged in sump chambers. Ceramic shaft construction delivers more than 30,000 working hours with zero routine maintenance.
5. Flexible power supply 12V and 24V options work with adapters, batteries or solar panels. Solar compatibility makes DC50G a great emergency backup pump during power outages.

DC50G Installation & Wiring Tips

1. The DC50G can be submerged or mounted inline on dry land. Remember it is NOT self-priming. Fill the pipeline with water before dry-land running.
2. 1/2 inch M20 threaded ports fit standard aquarium pipe fittings.
3. Potentiometer speed wiring: Red and black wires to potentiometer two ends, yellow wire connects to the middle pin to adjust flow.
4. PWM / 0-5V VR control: Yellow wire for signal output, black wire to ground; leave red wire unconnected.
5. Important note: Max flow rate only happens at zero lift. Flow volume will drop as vertical lift height increases, calculate your tank total head before purchase.

Frequently Asked Questions

Q: Can DC50G run 24/7 for reef sump? A: Yes, it supports non-stop continuous operation, built for all-day aquarium circulation.

Q: Can DC50G be used for saltwater reef tank? A: Yes. Its IP68 waterproof design works in both freshwater and saltwater aquariums. Pre-test required for special corrosive liquids.

Q: What is the difference between DC50G-1260 and DC50G-2480? A: DC50G-1260 runs on 12V with max head of 6m and max flow 2100L/H. DC50G-2480 uses 24V, delivers up to 8m head and 2400L/H flow for larger tanks.

Shop Our DC50G Brushless DC Aquarium Pump

Ready to upgrade your aquarium return pump? Our DC50G brushless DC pump is a premium choice for reef sumps and large planted tanks. With quiet running, adjustable PWM flow, IP68 waterproof and dry-run safety protection, this durable pump delivers stable circulation year-round. Browse our DC50G models and pick the perfect variant for your tank size and head pressure needs.
