IP67 vs IP68 Submersible Pump | Real Difference for Aquarium Use
Introduction
Most aquarium hobbyists and equipment buyers often misunderstand IP67 and IP68 waterproof ratings. Many assume both grades are fully submersible and interchangeable for fish tanks, saltwater reef systems, and continuous underwater operation. In reality, IP67 and IP68 follow strict IEC 60529 international ingress protection standards with clear differences in immersion depth, duration, and long-term water resistance. Choosing the wrong rating leads to pump leakage, salt corrosion, premature failure, and unstable aquarium circulation. This article explains the verified, industry-standard differences to help you select the correct submersible pump for your tank setup.
What Do IP Numbers Mean?
IP ratings consist of two digits. The first digit represents dust protection, and the second represents water protection.
Digit 1 (Dust Protection): 6 — Both IP67 and IP68 are 100% dust-tight. No solid particles or fine dust can enter the internal motor structure. In terms of dust resistance, IP67 and IP68 are exactly the same.
Digit 2 (Water Protection): 7 vs 8 — This is the only critical difference, defining immersion time, depth tolerance, and continuous underwater reliability.

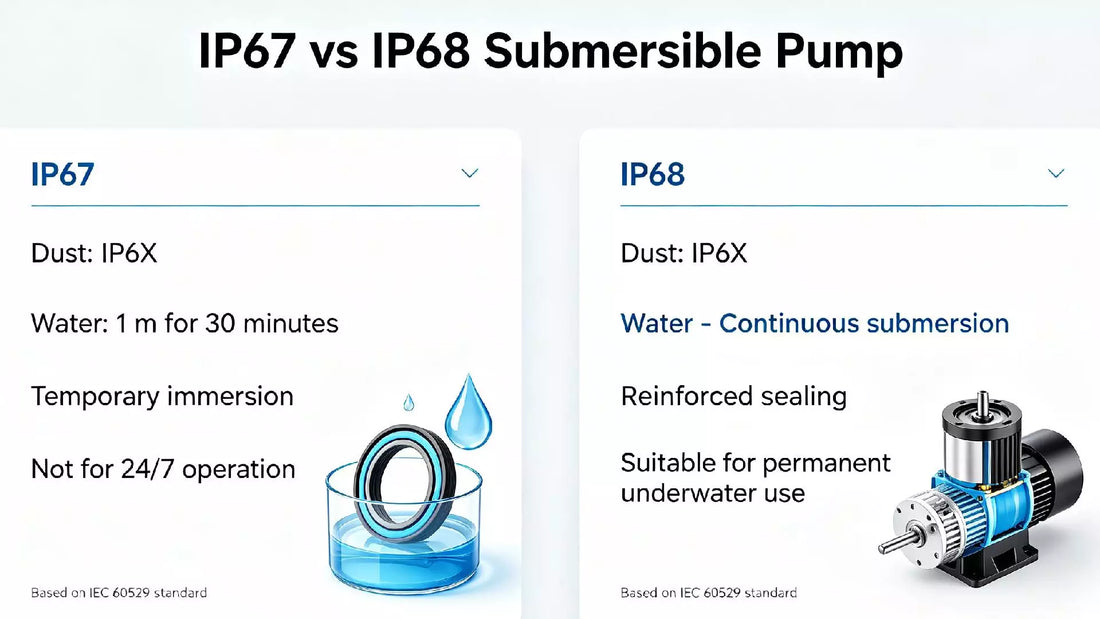

Official IEC 60529 Standard: IP67 vs IP68 Definition
IP67 Standard (Verified)
Protects against temporary water immersion. Test condition: submerged in 1 meter deep static water for 30 minutes. No harmful water ingress during the short test period. IP67 is designed for accidental water exposure, splashes, or brief submersion, not permanent underwater operation.
IP68 Standard (Verified)
Protects against continuous long-term water immersion. The test standard exceeds IP67, with deeper water depth and longer duration defined by manufacturers under IEC guidelines. For aquarium submersible pumps, IP68 is certified for permanent full submersion and continuous 24/7 underwater operation.
Core Practical Differences for Aquarium Use
1. Continuous Operation Ability
IP67 pumps pass short-term 30-minute immersion tests but are not engineered for permanent underwater use. Long-term 24/7 submersion gradually weakens sealing performance, causing tiny water penetration over weeks or months. IP68 pumps adopt reinforced integral sealing structures, specifically built for year-round continuous submersion in fish tanks.
2. Saltwater Corrosion Resistance Gap
Freshwater tanks have low corrosion, so IP67 may work temporarily. However, saltwater contains mineral crystals and corrosive ions. IP67 ordinary sealing layers cannot resist long-term salt deposition, leading to seal aging, internal corrosion, and flow attenuation. Standard IP68 aquarium pumps feature anti-salt-crystal sealing and corrosion-resistant housing, suitable for both freshwater and saltwater reef tanks.
3. Water Pressure & Depth Tolerance
IP67 only guarantees safety at 1-meter shallow static water. In deeper tanks or water environments with slight water pressure and flow impact, IP67 sealing stability drops significantly. IP68 supports deeper immersion and stronger water pressure tolerance, maintaining stable sealing performance in various tank sizes.
Can IP67 Pumps Be Used in Aquariums?
Technically yes for short-term freshwater use. If you only use the pump occasionally or replace equipment frequently, IP67 can work for simple freshwater landscapes. However, for formal fish tanks, planted tanks, and especially saltwater reef systems, IP67 is not recommended due to hidden long-term leakage and failure risks.
Why Aquarium Pumps Prefer IP68 Rating
Aquarium circulation requires24/7 uninterrupted underwater operation, high humidity, and in many cases corrosive saltwater. Only the IP68 rating matches this working condition. Its upgraded sealing structure prevents water penetration, salt crystal accumulation, and seal aging, ensuring long-term stable water circulation without frequent maintenance.
Common Customer Misconceptions
Misconception 1: IP67 and IP68 are almost the same — The dust-proof level is identical, but the water-resistant durability gap is huge in long-term submersion scenarios.
Misconception 2: IP67 can run 24/7 in fish tanks — The official standard only approves temporary immersion; long-term use will inevitably cause sealing fatigue.
Misconception 3: Freshwater does not need IP68 — Freshwater still produces moisture pressure and long-term soaking wear; IP68 provides far better aging resistance and stability.
Final Verdict: Which One Should You Choose?
Choose IP67: Temporary water splash, short-time immersion, non-continuous use, indoor freshwater landscape with frequent equipment replacement.
Choose IP68: All aquarium systems requiring 24/7 operation, including freshwater planted tanks, community fish tanks, saltwater reef tanks, and long-term submerged circulation equipment.
Conclusion
IP67 and IP68 share the same full dust-proof capability, but their long-term waterproof performance is completely different based on official IEC 60529 standards. IP67 is for temporary water resistance, while IP68 is the only reliable rating for permanent submersible aquarium pumps. For stable tank ecology, reduced failure rates, and long service life, IP68 is always the safer and more professional choice for aquarium circulation systems.
If you are searching for proven IP68 rated submersible aquarium pumps built for long-term freshwater and saltwater operation, you can browse our product catalog to view full specifications, performance parameters and available order options. Our pump lineup strictly follows IEC 60529 waterproof testing standards to deliver reliable continuous underwater performance for your aquarium setup.
